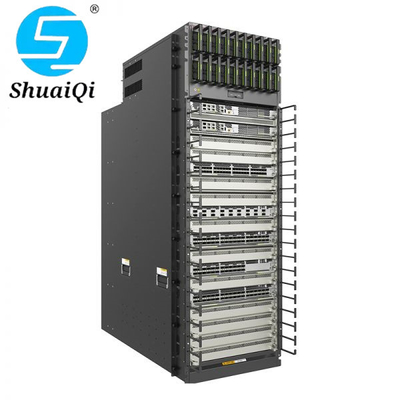

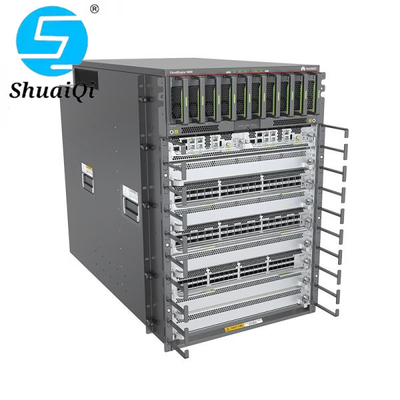

Huawei CE16816 CloudEngine 12800 Series Data Center Switches DC Assembly Chassis

Large Image : Huawei CE16816 CloudEngine 12800 Series Data Center Switches DC Assembly Chassis

Product Details:

Place of Origin:	USA
Brand Name:	Huawei
Certification:	CE
Model Number:	CE16816

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD2000
Packaging Details:	inbox
Delivery Time:	1-2days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	150 per week

Contact Now

Huawei CE16816 CloudEngine 12800 Series Data Center Switches DC Assembly Chassis

Description

Condition:	Original New	Warranty:	1 Year
Lead Time:	1-2 Days	Application:	Indoor
Type:	Switches	MOQ:	1 PCS
Brand:	Huawei	Product Status:	Stock
High Light:	DC Assembly Chassis Huawei Network Switches , 12800 Huawei Network Switches , CloudEngine Switch Network Device CE16816

C9300-24T-E Specification

C9300-24T-E Specification
Part Number	C9300-24T-E
Product Description	Catalyst 9300 24-port data only, Network Essentials
Total 10/100/1000 or Multigigabit copper ports	24
Default AC power supply	350W AC
Available PoE power	--
Cisco StackWise-480	Yes
Cisco StackPower	Yes
Default power supply	PWR-C1-350WAC-P/2
Switching capacity	208 Gbps on 24-port Gigabit Ethernet model
Stacking bandwidth	480 Gbps
Total number of MAC addresses	32,000
Total number of IPv4 routes (ARP plus learned routes)	32,000 (24,000 direct routes and 8000 indirect routes)
IPv4 routing entries	32,000
IPv6 routing entries	16,000
Multicast routing scale	8000
QoS scale entries	5120
ACL scale entries	5120
Packet buffer per SKU	16 MB buffer for 24- or 48-port Gigabit Ethernet models
FNF entries	64,000 flow on 24- and 48-port Gigabit Ethernet models
DRAM	8 GB
Flash	16 GB
VLAN IDs	4000
Total Switched Virtual Interfaces (SVIs)	2000
Jumbo frames	9198 bytes
Total routed ports per 9300 Series stack	208
Wireless bandwidth per switch	Up to 48 Gbps on 24-port Gigabit Ethernet model
Forwarding rate	154.76 Mpps
Dimensions (H x W x D)	1.73 x 17.5 x 17.5 Inches
Weight	16.33 Pounds
Mean time between failures (hours)	299,000
Safety certifications	● UL 60950-1 ● CAN/CSA-C222.2 No. 60950-1 ● EN 60950-1 ● IEC 60950-1 ● AS/NZS 60950.1 ● IEEE 802.3
Electromagnetic emissions certifications	● 47 CFR Part 15 ● CISPR22 Class A ● EN 300 386 V1.6.1 ● EN 55022 Class A ● EN 55032 Class A ● CISPR 32 Class A ● EN61000-3-2 ● EN61000-3-3 ● ICES-003 Class A ● TCVN 7189 Class A ● V-3 Class A ● CISPR24 ● EN 300 386 ● EN55024 ● TCVN 7317
Environmental

CE16816-DC Overview.

Huawei CloudEngine 16800 is the data center switch built for the AI era. It uses innovative iLossless algorithm to learn and train network-wide traffic, implement zero packet loss and achieve the maximum throughput.

Huawei CE16816 CloudEngine 12800 Series Data Center Switches DC Assembly Chassis 0

CE16816-DC Specification

Product Model	CloudEngine 16804	CloudEngine 16808	CloudEngine 16816
Switching Capacity	43/387 Tbit/s2	86/774 Tbit/s2	173/1548 Tbit/s2
Forwarding Rate	11,280 Mpps	22,560 Mpps	45,120 Mpps
Service Slots	4	8	16
Switching Fabric Module Slots	6 (scalable to 9 for future expansion)	6 (scalable to 9 for future expansion)	6 (scalable to 9 for future expansion)
