Product Details:
|
| Products Status: | Stock | Transmission Rate: | 10/100/1000Mbps |
|---|---|---|---|
| Ports: | 48 | Switch Capacity: | 176/672 Gbit/s, 176/672 Gbit/s |
| Brand Name: | OEM | Model Number: | S5731-S48P4X |
| Condition: | 100% Original Brand | Forwarding Performance: | 125 Mpps |
| High Light: | Huawei Network Switches 1000BASE,CloudEngine Huawei Network Switches,AC Huawei Cloudengine Switch |
||

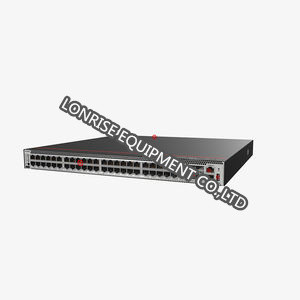

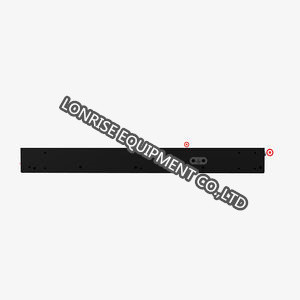

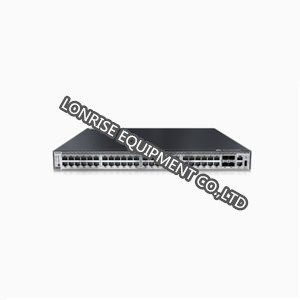

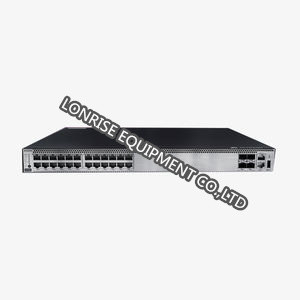

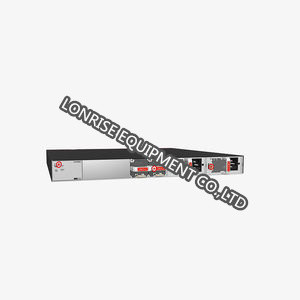

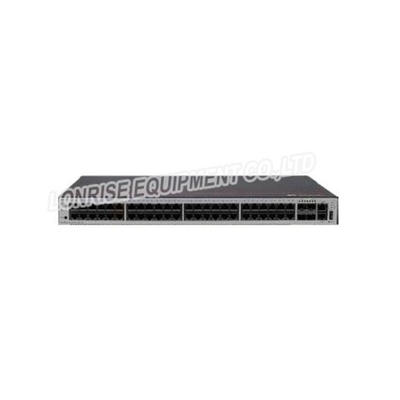

S5731-S48P4X 48*10/100/1000BASE-T ports S5700 Series Switches Original new
The Huawei CloudEngine S5731-S series switches were developed based on next-generation high-performing hardware and the Huawei Versatile Routing Platform (VRP). The CloudEngine S5731-S supports simplified operations and maintenance (O&M), intelligent stack (iStack), flexible Ethernet networking. It also provides enhanced Layer 3 features and mature IPv6 features. The CloudEngine S5731-S can be used in various scenarios. For example, it can be used as an access or aggregation switch on a campus network or as an access switch for Metropolitan Area Network.
Table 1 shows the Quick Specs.
| Product Code | S5731-S48P4X |
| Fixed port | 48 x 10/100/1000Base-T (PoE+) ports, 4 x 10GE SFP+ ports |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| Chassis height | 1 U |
| Power supply type | 1000 W PoE AC (pluggable) |
| Rated voltage range | AC input (1000 W AC PoE): 100 V AC to 240 V AC, 50/60 Hz |
|
Maximum voltage range
|
• AC input (1000 W AC PoE): 90 V AC to 290 V AC, 45 Hz to 65 Hz • High-voltage DC input (1000 W AC PoE): 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification) |
| Maximum power consumption |
• 132 W (without PD) • 1750 W (with PD, PD power consumption of 1440 W) |
The Huawei S5731-S series switches provides these features and highlights:
* Powerful Service Processing Capability and Multiple Security Control Mechanisms
* Easy O&M
* Multiple Reliability Mechanisms
* Mature IPv6 Technologies
* Intelligent Stack (iStack)
* VXLAN Features
* PoE Power Supply
* Intelligent O&M
* Intelligent Upgrade
| Model | Description |
| eSFP-GE-SX-MM850 | Optical Transceiver,eSFP,GE,Multi-mode Module(850nm,0.55km,LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,40km,LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,40km,LC) |
| S-SFP-GE-LH80-SM1550 | Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,80km,LC) |
| SFP-GE-ZBXU1 | Optical Transceiver,eSFP,GE,BiDi Single-mode Module(1490nm(Tx)/1570nm(Rx),80km,LC) |
| SFP-GE-LX-SM1490-BIDI | Optical Transceiver,eSFP,GE,BIDI Single-mode Module(TX1490/RX1310,10km,LC) |
| SFP-10G-iLR | Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,1.4km,LC) |
| SFP-10G-USR | 10GBase-USR Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.1km,LC) |
| SFP-1000BaseT | Electrical Transceiver,SFP,GE,Electrical Interface Module(100m,RJ45) |
| OMXD30000 | Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC) |
| OSX010000 | Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC) |
| SFP-10G-BXU1 | 10GBase,BIDI Optical Transceiver,SFP+,10G,Single-mode Module(TX1270nm/RX1330nm,10km,LC) |
| SFP-10G-ER-1310 | Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,40km,LC) |
| SFP-10G-ER-SM1330-BIDI | Optical Transceiver,SFP+,10G,BIDI Single-mode Module(TX 1330nm/RX 1270nm,40km,LC) |
| SFP-10G-BXD1 | 10GBase,BIDI Optical Transceiver,SFP+,10G,Single-mode Module(TX1330nm/RX1270nm,10km,LC) |
| SFP-10G-ZR | 10GBase-ZR Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,80km,LC) |
| OSX040N01 | Optical Transceiver,SFP+,10G,Single-mode Module(1550nm,40km,LC) |
