Product Details:
|
| Model: | WS-C2960X-24TS-LL | Name: | WS-C2960X-24TS-LL Catalyst 2960-X Switch |
|---|---|---|---|
| Detail: | Catalyst 2960-X 24 GigE, 2 X 1G SFP, LAN Lite | Key Words: | Ethernet Switch WS-C2960X-24TS-LL |
| Uplink Interfaces: | 2 X 1G SFP | Forwarding: | Bandwidth 50Gbps |
| Flash Memory: | 64 MB | Ports: | 24 X Ethernet 10/100/1000 Gigabit Ports |
| High Light: | LAN Lite Cisco Network Firewall,Catalyst 2960 Cisco Hardware Firewall,Ethernet Cisco Switch Firewall |
||

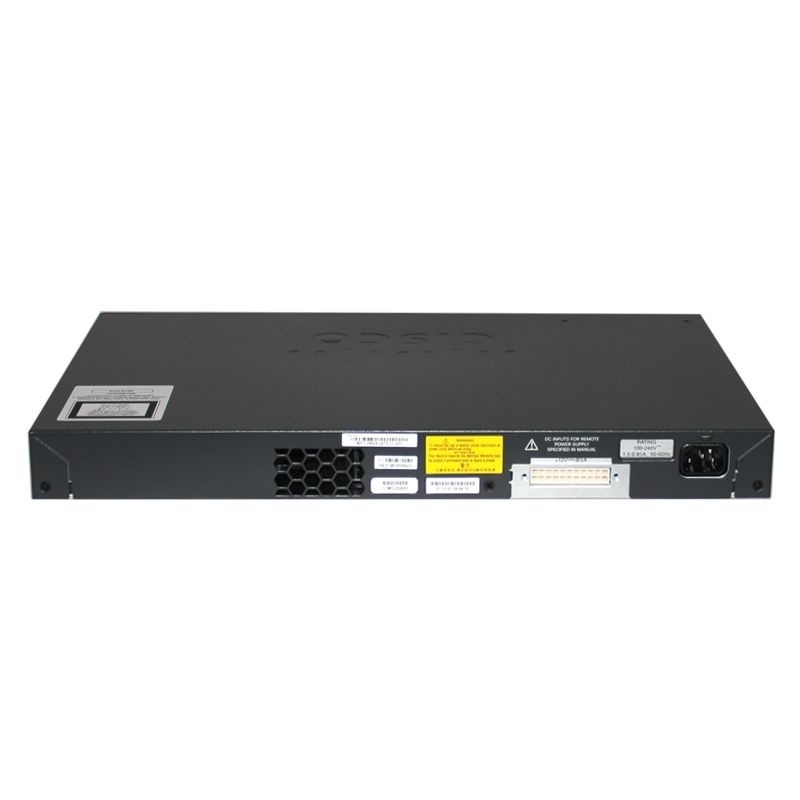

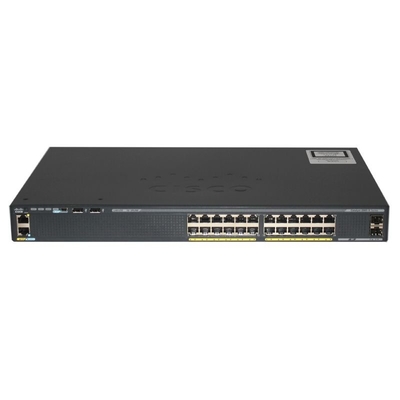

WS - C2960X - 24TS - LL Catalyst 2960 - X Switch
Cisco Catalyst 2960X-24TS-LL LAN Lite Layer 2 switch provides standalone mode with no FlexStack plus supporting and no NetFlow lite features.
WS-C2960X-24TS-LL Specification |
|
| General | |
| model info: | WS-2960X-24TS-LL |
| enclosure type | Rack-mountable - 1U |
| Ports | 24 x 10/100/1000 + 2 x 1G SFP |
| Network management Interface | 10/100 Mbps Ethernet (RJ-45) |
| Available PoE Power | None |
| Forwarding bandwidth(Gbps) | 50Gbps |
| Maximum stacking number | None |
| Stack Bandwidth | None |
| Forwarding Performance | 68.5Mpps |
| Switching bandwidth | 100Gbps |
| Maximum active VLANs | 64 |
| MAC Address Table Size | 16K (default) |
| CPU | APM86392 600MHz dual core |
| RAM | 256 MB |
| Flash Memory | 64 MB |
| Status Indicators | Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed |
| Expansion / Connectivity | |
| Console ports | USB (Type-B), Ethernet (RJ-45) |
| Stacking cable | None |
| Power Redundancy | Option (PWR-RPS2300) |
| Voltage range (Auto) | 110V-240V |
| Power Consumption Operational | 0.035KVA |
| Product Code | WS-C2960X-24TS-LL |
| Enclosure Type | Rack-mountable - 1U |
| Feature Set | LAN Lite |
| Uplink Interfaces | 2 x 1G SFP |
| Ports | 24 x Ethernet 10/100/1000 Gigabit ports |
| Forwarding Bandwidth | 50Gbps |
| Switching Bandwidth | 100Gbps |
| RAM | 256 MB |
| Flash Memory | 64 MB |
| Dimensions | 44.5 cm x 27.9 cm x 4.5 cm |
| Package Weight | 9.19 Kg |
