Product Details:
|
| Name: | S6730-S24X6Q - Huawei S6730-S Series Switches | Detail: | S6730-S Series,24 X 10 Gig SFP+/6 X 40 Gig QSFP/Dual Pluggable Power Modules, 600W AC (Power Supply Needs To Be Ordered Seperately.) |
|---|---|---|---|
| Model: | S6730-S24X6Q | Input Current (Power Supply Needs To Be Ordered Seperately.): | AC 600W：Max 8A DC 1000W：Max 30A |
| Chassis Height(U): | 1U | Dimensions (W X D X H): | 442 Mm X 420 Mm X 43.6 Mm |
| Fixed Ports: | 24 X 10 Gig SFP+, 6 X 40 Gig QSFP+ | Switching Capacity: | 960Gbps/2.4Tbps |
| Forwarding Performance: | 480 Mpps | ||
| High Light: | S6730 Huawei S Series Switches,2.4Tbps Switch Network Device,10 GE Downlink Ports Network Switches |
||

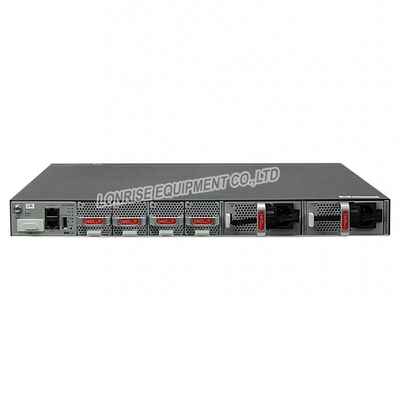

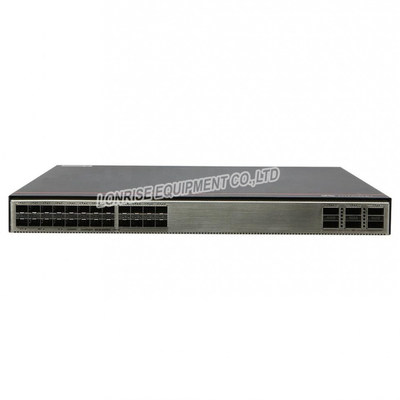

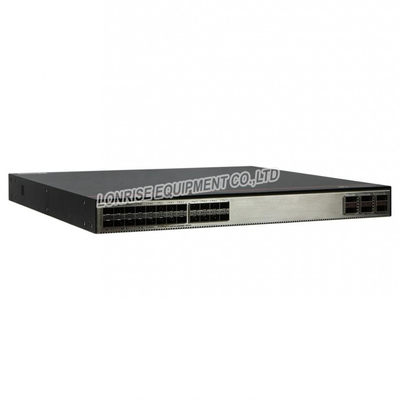

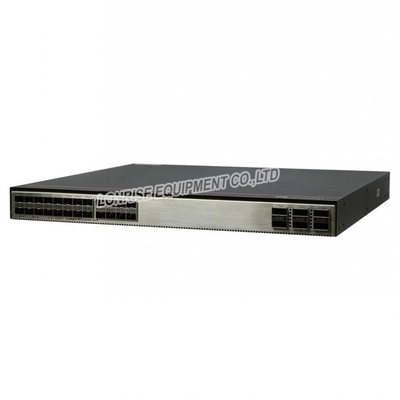

S6730 - S24X6Q Huawei S6730 - S Series network Switches
CloudEngine S6730-S series full-featured 10 GE switches are Huawei's new generation fixed switches ,to provide 10 GE downlink ports as well as 40 GE uplink ports.
CloudEngine S6730-S can be used to provide high-speed access for 10 Gbit/s access to high-density servers or function as a core/aggregation switch on a campus network to provide 40 Gbit/s rate. In addition, CloudEngine S6730-S provides a wide variety of services, comprehensive security policies, and various QoS features to help customers build scalable, manageable,reliable, and secure campus and data center networks.
S6730-S24X6Q Specification |
|
| Forwarding Performance | 480 Mpps |
| Switching Capacity | 960Gbps/2.4Tbps |
| Fixed ports | 24 x 10 Gig SFP+, 6 x 40 Gig QSFP+ |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| Chassis height(U) | 1U |
|
Input voltage (Power supply needs to be ordered seperately.) |
AC Power • Rated AC voltage: 100V to 240V AC; 50/60 Hz • Max. AC voltage: 90V to 290V AC; 45–65 Hz DC Power • Rated DC voltage: –48V～–60V • Max. DC voltage:-38.4V DC～-72V DC |
| Input current |
AC 600W:Max 8A DC 1000W:Max 30A |
| Maximum power consumption | 225W |
| Minimum power consumption | 88W |
|
Operating temperature
|
• 0–1800 m altitude: -5℃to 45℃ • 1800–5000 m altitude: The operating temperature reduces by 1℃ every time the altitude increases by 220 m. |
| Storage temperature | -40-70℃ |
| Operating altitude | 5000 m |
|
Noise (sound pressure at normal temperature) |
65dB(A) |
| Surge protection specification |
AC power interface: differential mode: ±6kV: common mode: ±6kV DC power interface: differential mode: ±2kV: common mode: ±4kV |
| Power supply type |
600W AC Power 1000W DC Power |
| Relative humidity | 5% to 95% (non-condensing) |
| Fans | 4 , Fan modules are pluggable |
|
Heat dissipation
|
Heat dissipation with fan, intelligent fan speed adjustment |
| Service Features | |
| MAC |
Up to 64K MAC address entries IEEE 802.1d standards compliance MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses |
| VLAN |
4K VLANs Guest VLANs and voice VLANs GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping |
| ARP |
Static ARP Dynamic ARP |
| IP routing |
Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, routing policy Up to 64K FIBv4 entries Up to 32K FIBv6 entries |
| Interoperability |
VLAN-Based Spanning Tree (VBST), working with PVST, PVST+, and RPVST Link-type Negotiation Protocol (LNP), similar to DTP VLAN Central Management Protocol (VCMP), similar to VTP |
| Ethernet loop protection |
RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover SEP ERPS (G.8032) BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) BPDU protection, root protection, and loop protection |
| IPv6 features |
Neighbor Discover (ND) PMTU IPv6 Ping, IPv6 Tracert, IPv6 Telnet ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or protocol types Multicast Listener Discovery snooping (MLDv1/v2) IPv6 addresses configured for sub-interfaces, VRRP6, DHCPv6, and L3VPN |
|
Multicast
|
IGMP v1/v2/v3 snooping and IGMP fast leave Multicast forwarding in a VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Port-based multicast traffic statistics IGMP v1/v2/v3, PIM-SM, PIM-DM, and PIM-SSM MSDP Multicast VPN |
| QoS/ACL |
Rate limiting in the inbound and outbound directions of a port Packet redirection Port-based traffic policing and two-rate three-color CAR Eight queues on each port DRR, SP, and DRR+SP queue scheduling algorithms WRED Re-marking of the 802.1p and DSCP fields of packets Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP source/destination port number, protocol type, and VLAN ID Queue-based rate limiting and shaping on ports |
| Security |
Hierarchical user management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, port number, and VLAN ID Port isolation, port security, and sticky MAC MAC Forced Forwarding (MFF) Blackhole MAC address entries Limit on the number of learned MAC addresses IEEE 802.1X authentication and limit on the number of users on a port AAA authentication, RADIUS authentication, and HWTACACS authentication NAC SSH V2.0 HTTPS CPU protection Blacklist and whitelist Attack source tracing and punishment for IPv6 packets such as ND, DHCPv6, and MLD packets IPSec for management packet encryption ECA Deception |
|
Reliability
|
LACP E-Trunk Ethernet OAM (IEEE 802.3ah and IEEE 802.1ag) ITU-Y.1731 DLDP LLDP BFD for BGP, BFD for IS-IS, BFD for OSPF, BFD for static routes |
| VXLAN |
VXLAN functions, VXLAN L2 and L3 gateways, BGP EVPN VXLAN configuration using NETCONF/YANG |
| SVF |
Acting as the parent node to vertically virtualize downlink switches and APs as one device for management Two-layer client architecture ASs can be independently configured. Services not supported by templates can be configured on the parent node. Third-party devices allowed between SVF parent and clients |
|
iPCA
|
Marking service packets to obtain the packet loss ratio and number of lost packets in real time Measurement of the number of lost packets and packet loss ratio on networks and devices |
|
Management and maintenance
|
Cloud-based management Virtual cable test SNMP v1/v2c/v3 RMON Web-based NMS System logs and alarms of different severities GVRP MUX VLAN NetStream Telemetry |
the comparison.
| Models | S6720-30C-EI-24S-AC | S6730-S24X6Q |
| Switching Capacity | 2.56 Tbit/s | 960Gbps/2.4Tbps |
| Forwarding Performance | 720 Mpps | 480 Mpps |
| Fixed Ports | 24 x 10 GE SFP+, 2 x 40 GE QSFP+ ports | 24 x 10 Gig SFP+, 6 x 40 Gig QSFP+ |
| Power Supply | AC Power Supply | AC/DC Power Supply |
| Dimensions (W x D x H) | 442 mm x 420 mm x 44.4 mm | 442 mm x 420 mm x 43.6 mm |
| Input Voltage | AC: Rated voltage range: 100V to 240V, 50 Hz/60 Hz Maximum voltage range: 90V to 264V, 50 Hz/60 Hz |
AC Power • Rated AC voltage: 100V to 240V AC; 50/60 Hz • Max. AC voltage: 90V to 290V AC; 45–65 Hz DC Power • Rated DC voltage: –48V～–60V • Max. DC voltage:-38.4V DC～-72V DC |
