Product Details:
|
| Name: | Huawei S5735-L Switch, 24 X 10/100/1000Base-T Ports, 4 X GE SFP Ports, PoE+ | Model: | S5735-L24P4S-A1 |
|---|---|---|---|
| Forwarding Performance: | 42 Mpps | Switching Capacity2: | 56 Gbit/s/336 Gbit/s |
| Product Model: | S5735-L24P4S-A Forwarding Performance 42 Mpps Switching Capacity2 56 Gbit/s/336 Gbit/s Fixed Ports 24 X 10/100/1000Base-T Ports, 4 X GE SFP Ports | PoE+: | Supported |
| IP Routing: | Static Route, RIP, RIPng, OSPF, OSPFv3 | S5735-L24P4S-A Specification: | Forwarding Performance 42 Mpps Switching Capacity2 56 Gbit/s/336 Gbit/s Fixed Ports 24 X 10/100/1000Base-T Ports, 4 X GE SFP Ports PoE+ Supported MAC Features MAC Address Auto-learning And Aging Static, Dynamic, And Blackhole MAC Address Entries P |
| High Light: | 1000BASE-T Huawei S5735 Switch,Static Route Huawei S Series Switches,S5735 - L24P4S - A1 4 Port Network Switch |
||

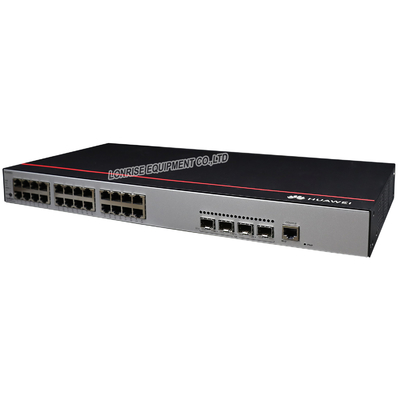

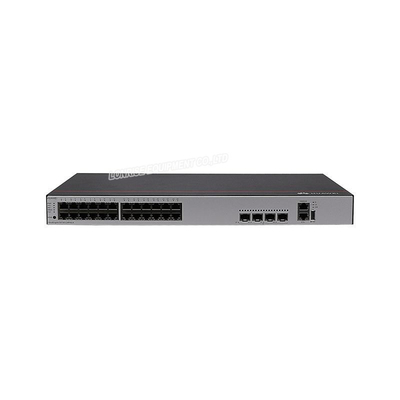

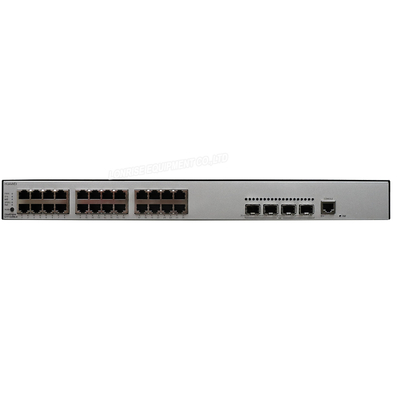

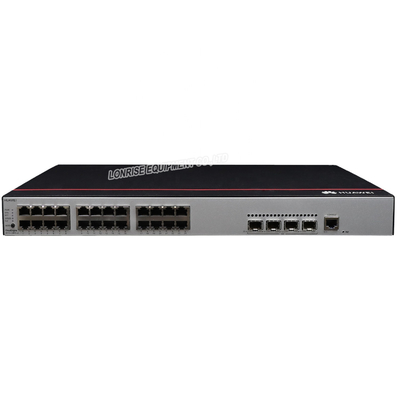

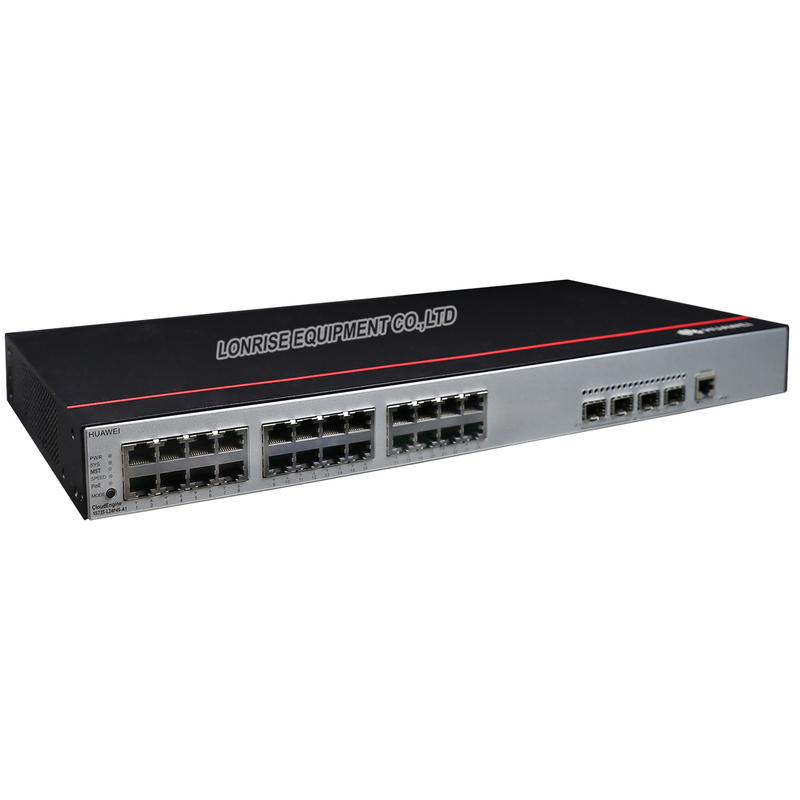

Huawei S5735 - L24P4S - A1 switch 24 x 10 / 100 / 1000Base - T ports 4 x GE SFP ports PoE +
S5735-L24P4S-A is the Huawei S5735-L switch with 24 x 10/100/1000Base-T ports, 4 x GE SFP ports, PoE+. Huawei CloudEngine S5735-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.
S5735-L24P4S-A Specification |
|
| Forwarding Performance | 42 Mpps |
| Switching Capacity2 | 56 Gbit/s/336 Gbit/s |
| Fixed Ports | 24 x 10/100/1000Base-T ports, 4 x GE SFP ports |
| PoE+ | Supported |
| MAC Features | MAC address auto-learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses Interface-based MAC address learning limiting |
| VLAN Features | 4094 VLANs Guest VLAN, Voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping |
| IP Routing | Static route, RIP, RIPng, OSPF, OSPFv3 |
| Super Virtual Fabric (SVF) | Plug-and-play SVF clients Automatic software package and patch loading to SVF clients One-click and automatic delivery of service configurations Independent SVF client operations |
| Interoperability | VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP) |
the comparison.
| Product Model |
S5735-L24P4S-A |
S5735-L48T4S-A | S5735-L32ST4X-A | |||
| Forwarding Performance | 24 Mpps | 42 Mpps | 96 Mpps | 78 Mpps | 132 Mpps | 108 Mpps |
| Switching Capacity2 | 32 Gbit/s/336 Gbit/s | 56 Gbit/s/336 Gbit/s | 128 Gbit/s/336 Gbit/s | 104 Gbit/s/432 Gbit/s | 176 Gbit/s/432 Gbit/s | 144 Gbit/s/432 Gbit/s |
| Fixed Ports | 12 x 10/100/1000Base-T ports, 4 x GE SFP ports | 24 x 10/100/1000Base-T ports, 4 x GE SFP ports | 24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports | 48 x 10/100/1000BASE-T ports, 4 x GE SFP ports | 48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports | 24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
| PoE+ | CloudEngine S5735-L12P4S-A: Supported CloudEngine S5735-L24P4S-A: Supported CloudEngine S5735-L24P4X-A: Supported CloudEngine S5735-L48P4X-A: Supported Other: Not supported |
|||||
the recommended models.
| Model | Description |
| OMXD30000 | Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| OSXD22N00 | Optical Transceiver, SFP+, 10G, Multi-mode Module (1310nm, 0.22km, LC, LRM) |
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| OMXD30009 | Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10 |
| SFP-10G-LR | Huawei Optical Transceiver SFP-10G-LR, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
