Product Details:
|
| Model Number: | ES1M2G48TX5S | Transmission Rate: | 10/100/1000Mbps |
|---|---|---|---|

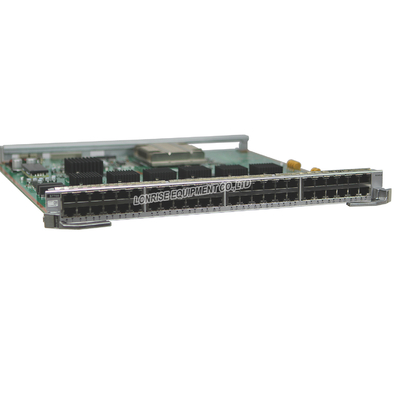

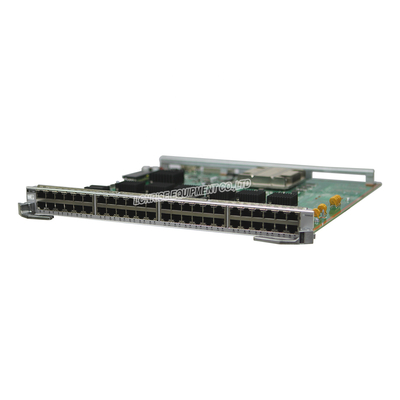

| Product Name: | ES1M2G48TX5S-48-port 10/100/1000BASE-T Interface Card (X5S, M, RJ45) | Communication Mode: | Full-Duplex & Half-Duplex |
| Switching Capacity: | 336 Gbit/s | Ports: | ≥ 48 |
| Function: | LACP, POE, QoS, SNMP, Stackable, VLAN Support | Switch Capacity: | 1.6G |
| Condition: | 100% Original Brand | Memory (RAM): | 512 |
| High Light: | 100BASE Wireless Network Interface Card,X5S M RJ45 Network Interface Card,Huawei 48 Port Interface Card |
||
The ES1M2G48TX5S provides high performance, large entry sizes, and a large buffer for data switching.
This card is highly integrated and has a large port density.
The ES1M2G48TX5S can be installed in:
|
Function |
Description |
|---|---|
| Basic functions | Provides forty-eight GE electrical ports for data access and switching. |
| Distributed forwarding | Performs concurrent data forwarding using a distributed data plane. |
| Hot swapping | The ES1M2G48TX5S is hot swappable. |
|
Number |
Indicator |
Color |
Description |
|---|---|---|---|
| 1 | LINK/ACT indicator of an upper electrical port | Green |
Steady on: A link has been established on the port. Blinking: The port is transmitting and receiving data. |
| 2 | LINK/ACT indicator of a lower electrical port | ||
| 3 | RUN/ALM: running status indicator | Green |
Steady on: The card is powered on. If the indicator is steady green for no more than 30 seconds, the CPU is being started. If the indicator is steady green for more than 30 seconds, the software is not running. Slow blinking: The card software is running properly. Fast blinking: The card software is starting. |
| Red | Steady on: The card has failed and the fault requires manual intervention. | ||
| Yellow | Steady on: The card is powered off. (For example, the card has been forcibly powered off using the power off command or is about to start.) |
