Product Details:
|
| Product Number: | S5731-S48P4X | Function: | LACP, VLAN Support |
|---|---|---|---|
| 02353AJH 02353AJH: Condition 02353AJH:: | V200R019C00 And Later Versions | 02353AJH-001: | V200R020C10 And Later Versions |
| 02353AJH-002: | V200R021C01 And Later Versions | Device Type: | Switch - 48 Ports - Managed |
| Transmission Rate: | 10/100/1000Mbps | Memory (RAM): | 2 GB |
| High Light: | 1000BASE Huawei S5700 Switch,S5731-S48P4X Huawei S5700 Switch,Huawei VLAN Support Network Switches |
||
Huawei S5731 - S48P4X 48*10 / 100 / 1000BASE - T ports S5700 Series Switches
Technical specifications
|
Item |
Description |
|---|---|
| Memory (RAM) | 2 GB |
| Flash | 1 GB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) | 54.96 years |
| Mean time to repair (MTTR) | 2 hours |
| Availability | > 0.99999 |
| Service port surge protection | Common mode: ±6 kV |
| Power supply surge protection |
|
| Dimensions (H x W x D) |
|
| Weight (with packaging) | 8.8 kg (19.40 lb) |
| Stack ports | 10GE SFP+ ports on the front panel |
| RTC | Supported |
| RPS | Not supported |
| PoE | Supported |
| Rated voltage range |
|
| Maximum voltage range |
|
| Maximum power consumption (100% throughput, full speed of fans) |
|
| Typical power consumption (30% of traffic load, tested according to ATIS standard) | 108 W |
| Operating temperature |
-5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)
NOTE:
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0°C (32°F). |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) | < 62.3 dB(A) |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Certification |
|
| Part number |
02353AJH 02353AJH-001 02353AJH-002 |

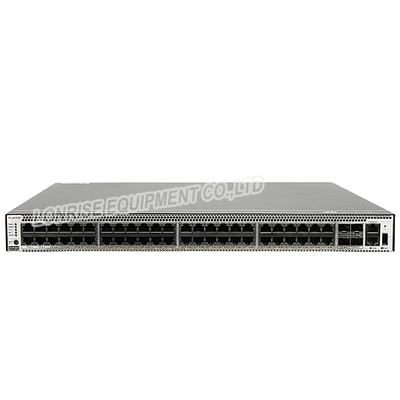

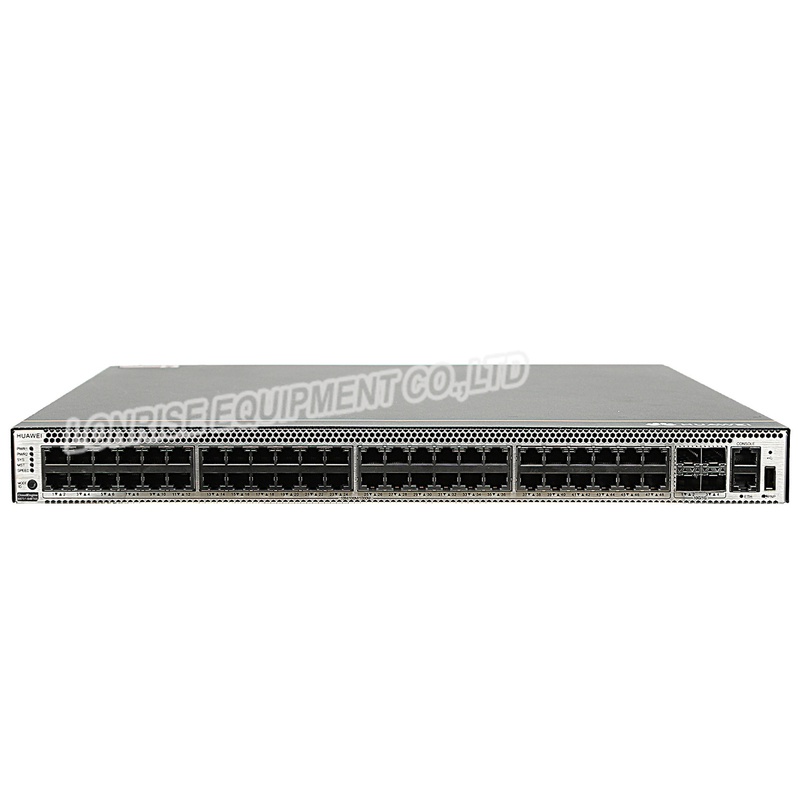

S5731-S48P4X (02353AJH) appearance

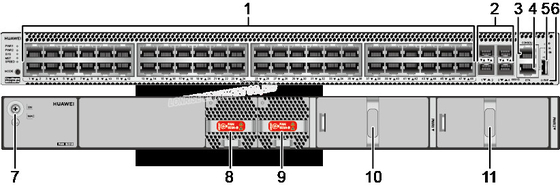

S5731-S48P4X (02353AJH-001 or 02353AJH-002) appearance
| 1 | Forty-eight PoE+ 10/100/1000BASE-T ports | 2 |
Four 10GE SFP+ ports Applicable modules and cables:
|
| 3 | One console port | 4 | One ETH management port |
| 5 | One USB port | 6 |
One PNP button NOTICE:
To restore the factory settings and reset the switch, hold down the button for at least 6 seconds. To reset the switch, press the button. Resetting the switch will cause service interruption. Exercise caution when you press the PNP button. |
| 7 |
Ground screw NOTE:
It is used with a ground cable.
|
8 |
Fan module slot 1 NOTE:
Applicable fan module: FAN-023A-B (Fan box(B,FAN panel side exhaust)) |
| 9 |
Fan module slot 2 NOTE:
Applicable fan module: FAN-023A-B (Fan box(B,FAN panel side exhaust)) |
10 |
Power module slot 1 NOTE:
Applicable power module:
|
| 11 |
Power module slot 2 NOTE:
Applicable power module:
|
- | - |
