Product Details:
|
Brand: | Cisco | Switching Capacity: | Up To 2 Tbps |
---|---|---|---|
Forwarding Rate: | Up To 1 Bpps | DRAM: | 16 G |
Condition: | New With 1Year Replacement Warranty | Shipment: | DHL,UPS,TNT, |
Flash: | 16 G | Rack Units (RU): | 1RU |
High Light: | C9500-24Y4C-E Ethernet Network Switch,16G Flash Ethernet Network Switch,Catalyst 9500 Series Ethernet Network Switch |

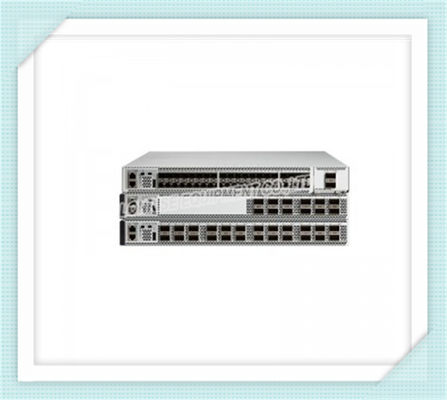

C9500-24Y4C-E Overview
C9500-24Y4C-E is a Cisco Catalyst 9500 Series high performance 24-port 1/10/25G switch, NW Ess. License. The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco's lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The Catalyst 9500 Series is the industry's first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.
C9500-24Y4C-E Specification |
|
Performance specifications | |
Switching capacity | Up to 2 Tbps |
Forwarding rate | Up to 1 Bpps |
Total number of MAC addresses | Up to 82,000 |
Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) |
Up to 212,000 indirect + direct Up to 90,000 host/ARP |
Total number of IPv6 routes |
Up to 212,000 indirect + direct Up to 90,000 host |
QoS ACL scale | Up to 16000 |
Security ACL scale | Up to 27000 |
FNF entries | Up to 98,000 |
DRAM | 16 GB |
Flash | 16 GB |
VLAN IDs | 4000 |
Total Switched Virtual Interfaces (SVIs) | 4000 |
Jumbo frame | 9216 bytes |
Power supply specifications | |
Power Supply Selection | C9K-PWR-650WAC-R or C9K-PWR-930WDC-R |
Dimensions, physical specifications, weight, and MTBF | |
Dimensions (H x W x D) | 1.73 x 17.5 x 18.0 in |
Rack units (RU) | 1 RU |
Input voltage | 90 to 264 VAC |
Operating temperature | 32° to 104°F (0° to 40°C) |
Storage temperature | -4° to 149°F (-20° to 65°C) |
Relative humidity operating and nonoperating noncondensing |
Ambient (noncondensing) operating: 5% to 90% Ambient (noncondensing) nonoperating and storage: 5% to 95% |
Altitude | Operation up to 13,000 feet at 40°C |
MTBF (hours) | 336,780 |
Catalyst 9500 25-G 24- and 48-port switches: C9500-24Y4C, C9500-48Y4C
· 24 and 48 ports of 25 G with rich campus features
· Cisco innovation extending SR reach to 300 million
· High performance, SFP28
· Secure segmentation with SD-Access
· MPLS Level 2/3 VPNs, MVPN; flexible design templates
· Enhanced Limited Lifetime Warranty (E-LLW)
Product Code |
C9500-16X-A |
C9500-24Y4C-E |
Description |
Catalyst 9500 16-port 10Gig switch, with Network Advantage |
Cisco Catalyst 9500 Series high performance 24-port 1/10/25G switch, NW Ess. License |
Switching capacity |
Up to 480 Gbps |
Up to 2 Tbps |
Forwarding rate |
Up to 360 Mpps |
Up to 1 Bpps |
DRAM |
16 G |
16 G |
Flash |
16 G |
16 G |
Dimensions (H x W x D) |
1.73 x 17.5 x 21.52 in |
1.73 x 17.5 x 18.0 in |
Rack units (RU) |
1 RU |
1RU |
The Accessories
Category |
Model |
Description |
License |
C9500-DNA-L-E-3Y |
Catalyst 9500 NW & DNA Essentials. low port density license (3Y) for 12Q, 16X, 24Y4C SKU |
C9500-DNA-L-E-5Y |
Catalyst 9500 NW & DNA Essentials. low port density license (5Y) for 12Q, 16X, 24Y4C SKU |
|
C9500-DNA-L-E-7Y |
Catalyst 9500 NW & DNA Essentials. low port density license (7Y) for 12Q, 16X, 24Y4C SKU |
|
C9500-DNA-L-A-3Y |
Catalyst 9500 NW & DNA Advantage low port density license (3Y) for 12Q, 16X, 24Y4C SKU |
|
C9500-DNA-L-A-5Y |
Catalyst 9500 NW & DNA Advantage low port density license (5Y) for 12Q, 16X, 24Y4C SKU |
|
C9500-DNA-L-A-7Y |
Catalyst 9500 NW & DNA Advantage low port density license (7Y) for 12Q, 16X, 24Y4C SKU |
|
Module |
C9500-NM-2Q |
Cisco Catalyst 9500 2 x 40GE Network Module |
C9500-NM-8X |
Cisco Catalyst 9500 8 x 10GE Network Module |
