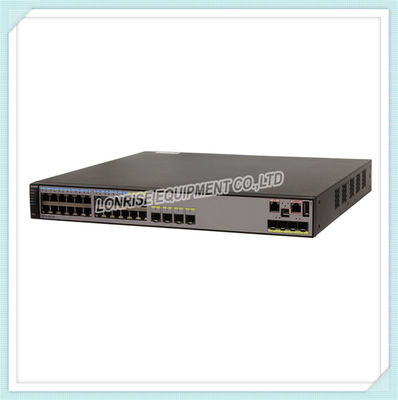

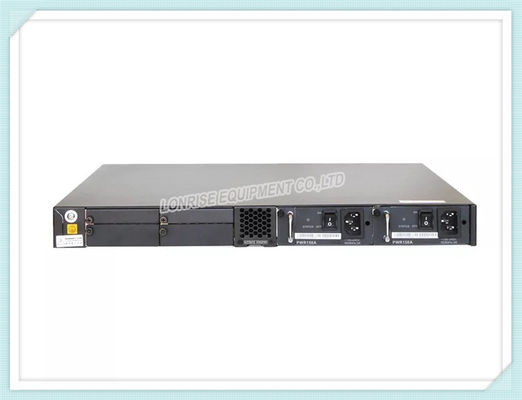

Huawei 5700 Series Gigabit Enterprise Switch S5710-28C-EI-AC 4 10 Gig SFP+

Huawei 5700 Series Gigabit Enterprise Switch S5710-28C-EI-AC 4 10 Gig SFP+
Huawei 5700 Series Gigabit Enterprise Switch S5710-28C-EI-AC 4 10 Gig SFP+ Huawei 5700 Series Gigabit Enterprise Switch S5710-28C-EI-AC 4 10 Gig SFP+ Huawei 5700 Series Gigabit Enterprise Switch S5710-28C-EI-AC 4 10 Gig SFP+ Huawei 5700 Series Gigabit Enterprise Switch S5710-28C-EI-AC 4 10 Gig SFP+

Large Image :  Huawei 5700 Series Gigabit Enterprise Switch S5710-28C-EI-AC 4 10 Gig SFP+

Product Details:
Place of Origin: CHINA
Brand Name: Huawei
Certification: CE
Model Number: S5710-28C-EI-AC
Payment & Shipping Terms:
Minimum Order Quantity: 1UNIT
Packaging Details: NEW IN BOX
Delivery Time: 2-3days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 50 Units/Month

Huawei 5700 Series Gigabit Enterprise Switch S5710-28C-EI-AC 4 10 Gig SFP+

Description
Product Code: S5710-28C-EI-AC Memory (RAM): 512 MB
Forwarding Performance: 156 Mpps Switching Capacity: 416 Gbit/s
Power Supply: ACpower Supply Warranty: 1 Year Replacement Warranty
Website: Www.lonriseeqt.com
High Light:

Huawei 5700 Series Gigabit Enterprise Switch

,

S5710-28C-EI-AC

,

512MB RAM Gigabit Enterprise Switch



S5710-28C-EI-AC Overview



The S5710-28C-EI-AC gigabit enterprise switch is next-generation energy-saving switch developed by Huawei to meet the demand for high-bandwidth access and Ethernet multi-service aggregation. With 24 GE ports and 2 extended slots, it provides a large switching capacity and high-density GE ports to implement 10 Gbit/s upstream transmissions, widely used in various application scenarios like enterprise park access, convergence, gigabit access of data center application scenarios. The S5710-28C-EI-AC is easy to install and maintain, reducing workloads for network planning, construction, and maintenance, then it uses advanced reliability, security, and energy conservation technology to help enterprise customers build a next-generation IT network.

S5710-28C-EI-AC Specification

S5710-28C-EI-AC Specification

MAC address table

IEEE 802.1d compliance

MAC address learning and aging

Static, dynamic, and blackhole MAC address entries

Packet filtering based on source MAC addresses

MAC address entries:
S5700S-LI series: 8K, S5700-LI/S5700-SI series: 16K, S5700-EI series: 32K, S5720-EI series: 64K, S5700-HI series: S5700-HI: 32K, S5710-HI: 456K, S5720-HI: 128K

VLAN

4K VLANs

Guest VLAN and voice VLAN

GVRP

MUX VLAN

VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports

1:1 and N:1 VLAN Mapping

SuperVLAN(supported by the S5700-SI/S5700-EI/S5700-HI series)

Ring protection

RRPP ring topology and RRPP multi-instance

Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover

SEP

ERPS(G.8032)(supported by the S5700-LI/S5700-SI/S5700-EI/S5700-HI series)

STP, RSTP, and MSTP

BPDU protection, root protection, and loop protection

BPDU Tunnel

Reliability

Ethernet OAM (IEEE 802.3ah and 802.1ag)

ITU-Y.1731

DLDP

LACP

E-Trunk(supported by the S5700-SI/S5700-EI/S5700-HI series)

BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM (supported by the S5700-EI/S5700-HI series)

MPLS features

MPLS L3VPN

MPLS L2VPN(VPWS/VPLS)

MPLS-TE

MPLS QoS

Notes: supported by S5710-EI, S5700-HI and S5710-HI

IP routing

Static routing

RIPv1, RIPv2 and RIPng,ECMP(supported by the S5700-SI/S5700-EI/S5700-HI series)

OSPF, OSPFv3, IS-IS, IS-ISv6, BGP and BGP4+ (supported by the S5700-EI/S5700-HI series)

IPv6 features

Neighbor Discovery (ND)

Path MTU (PMTU)

IPv6 ping, IPv6 tracert, and IPv6 Telnet

ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type

MLD v1/v2 snooping

6to4 tunnel, ISATAP tunnel, and manually configured tunnel(supported by the S5700-SI/S5700-EI/S5700-HI series)

Multicast

IGMP v1/v2/v3 snooping and IGMP fast leave

Multicast forwarding in a VLAN and multicast replication between VLANs

Multicast load balancing among member ports of a trunk

Controllable multicast

Port-based multicast traffic statistics

IGMP v1/v2/v3, PIM-SM, PIM-DM, PIM-SSM, MSDP (supported by the S5700-EI/S5700-HI series)

QoS/ACL

Rate limiting on packets sent and received by an interface

Packet redirection

Port-based traffic policing and two-rate three-color CAR

Eight queues on each port

WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms

WRED (supported by the S5710-EI and S5700-HI)

Re-marking of the 802.1p priority and DSCP priority

Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID

Rate limiting in each queue and traffic shaping on ports

Security

User privilege management and password protection

DoS attack defense, ARP attack defense, and ICMP attack defense

Binding of the IP address, MAC address, interface, and VLAN

Port isolation, port security, and sticky MAC

MFF

Blackhole MAC address entries

Limit on the number of learned MAC addresses

802.1x authentication and limit on the number of users on an interface

AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC

SSH v2.0

Hypertext Transfer Protocol Secure (HTTPS)

CPU defense

Blacklist and whitelist

Access Security DHCP Relay, DHCP Server, DHCP Snooping, DHCP Security
Management and maintenance

Virtual cable test

Port mirroring and RSPAN (remote port mirroring)

Remote configuration and maintenance using Telnet

SNMP v1/v2c/v3

RMON

Web NMS

HGMP

System logs and alarms of different levels

802.3az EEE (supported by the S5700(S)-LI, S5710-EI, S5700-HI and S5710-HI)

Dying gasp (supported by the S5700-HI, S5710-HI and S5700(S)-LI(except battery LAN switches)

NetStream (supported by the S5710-EI, S5700-HI and S5710-HI)

sFlow(supported by the S5700(S)-LI/S5700-EI/S5700-HI series)

Interoperability

Supports VBST (Compatible with PVST/PVST+/RPVST)

Supports LNP (Similar to DTP)

Supports VCMP (Similar to VTP)

Operating environment

Operating temperature: 0℃–50℃

Relative humidity: 10%–90% (non-condensing)

Input voltage

AC:

Rated voltage range: 100 V to 240 V AC, 50/60 Hz

Maximum voltage range: 90 V to 264 V AC, 47/63 Hz

DC:

Rated voltage range: –48 V to –60 V, DC

Maximum voltage range: –36 V to –72 V DC

Note: PoE-support switches do not use DC power supplies.

MAC address table

IEEE 802.1d compliance

MAC address learning and aging

Static, dynamic, and blackhole MAC address entries

Packet filtering based on source MAC addresses

MAC address entries:
S5700S-LI series: 8K, S5700-LI/S5700-SI series: 16K, S5700-EI series: 32K, S5720-EI series: 64K, S5700-HI series: S5700-HI: 32K, S5710-HI: 456K, S5720-HI: 128K

VLAN

4K VLANs

Guest VLAN and voice VLAN

GVRP

MUX VLAN

VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports

1:1 and N:1 VLAN Mapping

SuperVLAN(supported by the S5700-SI/S5700-EI/S5700-HI series)

Ring protection

RRPP ring topology and RRPP multi-instance

Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover

SEP

ERPS(G.8032)(supported by the S5700-LI/S5700-SI/S5700-EI/S5700-HI series)

STP, RSTP, and MSTP

BPDU protection, root protection, and loop protection

BPDU Tunnel

Reliability

Ethernet OAM (IEEE 802.3ah and 802.1ag)

ITU-Y.1731

DLDP

LACP

E-Trunk(supported by the S5700-SI/S5700-EI/S5700-HI series)

BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM (supported by the S5700-EI/S5700-HI series)

MPLS features

MPLS L3VPN

MPLS L2VPN(VPWS/VPLS)

MPLS-TE

MPLS QoS

Notes: supported by S5710-EI, S5700-HI and S5710-HI

IP routing

Static routing

RIPv1, RIPv2 and RIPng,ECMP(supported by the S5700-SI/S5700-EI/S5700-HI series)

OSPF, OSPFv3, IS-IS, IS-ISv6, BGP and BGP4+ (supported by the S5700-EI/S5700-HI series)

IPv6 features

Neighbor Discovery (ND)

Path MTU (PMTU)

IPv6 ping, IPv6 tracert, and IPv6 Telnet

ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type

MLD v1/v2 snooping

6to4 tunnel, ISATAP tunnel, and manually configured tunnel(supported by the S5700-SI/S5700-EI/S5700-HI series)

Multicast

IGMP v1/v2/v3 snooping and IGMP fast leave

Multicast forwarding in a VLAN and multicast replication between VLANs

Multicast load balancing among member ports of a trunk

Controllable multicast

Port-based multicast traffic statistics

IGMP v1/v2/v3, PIM-SM, PIM-DM, PIM-SSM, MSDP (supported by the S5700-EI/S5700-HI series)

QoS/ACL

Rate limiting on packets sent and received by an interface

Packet redirection

Port-based traffic policing and two-rate three-color CAR

Eight queues on each port

WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms

WRED (supported by the S5710-EI and S5700-HI)

Re-marking of the 802.1p priority and DSCP priority

Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID

Rate limiting in each queue and traffic shaping on ports

Security

User privilege management and password protection

DoS attack defense, ARP attack defense, and ICMP attack defense

Binding of the IP address, MAC address, interface, and VLAN

Port isolation, port security, and sticky MAC

MFF

Blackhole MAC address entries

Limit on the number of learned MAC addresses

802.1x authentication and limit on the number of users on an interface

AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC

SSH v2.0

Hypertext Transfer Protocol Secure (HTTPS)

CPU defense

Blacklist and whitelist

Access Security DHCP Relay, DHCP Server, DHCP Snooping, DHCP Security
Management and maintenance

Virtual cable test

Port mirroring and RSPAN (remote port mirroring)

Remote configuration and maintenance using Telnet

SNMP v1/v2c/v3

RMON

Web NMS

HGMP

System logs and alarms of different levels

802.3az EEE (supported by the S5700(S)-LI, S5710-EI, S5700-HI and S5710-HI)

Dying gasp (supported by the S5700-HI, S5710-HI and S5700(S)-LI(except battery LAN switches)

NetStream (supported by the S5710-EI, S5700-HI and S5710-HI)

sFlow(supported by the S5700(S)-LI/S5700-EI/S5700-HI series)

Interoperability

Supports VBST (Compatible with PVST/PVST+/RPVST)

Supports LNP (Similar to DTP)

Supports VCMP (Similar to VTP)

Operating environment

Operating temperature: 0℃–50℃

Relative humidity: 10%–90% (non-condensing)

Input voltage

AC:

Rated voltage range: 100 V to 240 V AC, 50/60 Hz

Maximum voltage range: 90 V to 264 V AC, 47/63 Hz


The Transceiver





Model

Description

FE-SFP Optical Transceiver

SFP-FE-SX-MM1310

Optical Transceiver,SFP,100M/155M, Multi-mode Module(1310nm,2km,LC)

eSFP-FE-LX-SM1310

Optical Transceiver, eSFP, 100M/155M,Single-mode Module(1310nm,15km,LC)

S-SFP-FE-LH40-SM1310

Optical Transceiver, SFP, FE, Single-mode Module(1310nm,40km,LC)

GE-SFP Optical Transceiver

SFP-1000BaseT

Electrical Transceiver, SFP, GE, Electrical Interface Module(100m,RJ45)

eSFP-GE-SX-MM850

Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.55km,LC)

SFP-GE-LX-SM1310

Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC)

S-SFP-GE-LH40-SM1310

Optical Transceiver, eSFP, GE, Sngle-mode Module(1310nm,40km,LC)

S-SFP-GE-LH40-SM1550

Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC)

10G-SFP+ Optical Transceiver

SFP-10G-USR

10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm,0.1km,LC)

OMXD30000

Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm,0.3km,LC)

OMXD30000

Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm,10km,LC)





Compare to Similar Items



Models

S5710-28C-EI

S5710-28C-EI-AC

S5710-28C-PWR-EI-AC

Fixed Ports

24 x 10/100/1,000 Base-T, 4 of which are dual-purpose 10/100/1,000 or SFP, 4 x 10 GE SFP+

24 x 10/100/1,000 Base-T, 4 of which are dual-purpose 10/100/1,000 or SFP, 4 x 10 GE SFP+

24 x 10/100/1,000 Base-T, 4 of which are dual-purpose 10/100/1,000 or SFP, 4 x 10 GE SFP+

Extended Slots

2 extended slots  for uplink subcards

2 extended slots  for uplink subcards

2 extended slots  for uplink subcards.

Power Supply

Double hot-swappable AC/DC

AC power supply

Double hot-swappable AC, PoE+

Forwarding Performance

156 Mpps

 156 Mpps

156 Mpps

Switching Capacity

416 Gbit/s

  416 Gbit/s

416 Gbit/s

Power Consumption

< 100W

< 100W

< 942W





Huawei 5700 Series Gigabit Enterprise Switch S5710-28C-EI-AC 4 10 Gig SFP+ 0
3. Advantages
Huawei 5700 Series Gigabit Enterprise Switch S5710-28C-EI-AC 4 10 Gig SFP+ 1

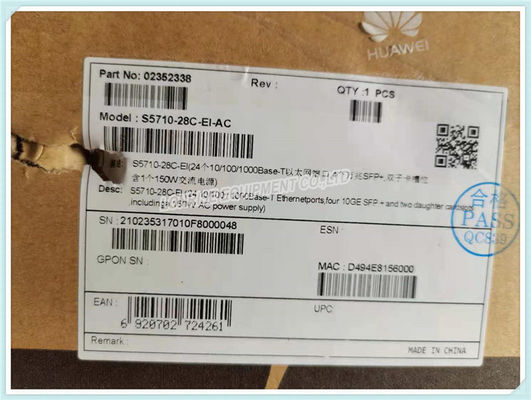

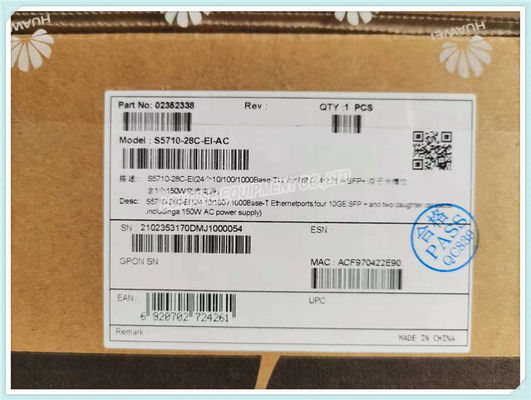

4 .Packaging and shiping
Huawei 5700 Series Gigabit Enterprise Switch S5710-28C-EI-AC 4 10 Gig SFP+ 2

If you are interested in any product,Welcome to consult !!


Contact Details
LonRise Equipment Co. Ltd.

Contact Person: Laura

Tel: +8618616582084

Send your inquiry directly to us (0 / 3000)
