Huawei Ethernet Switch S5710-108C-PWR-HI 48 PoE+ Ports Part Number 02354043

Huawei Ethernet Switch S5710-108C-PWR-HI 48 PoE+ Ports Part Number 02354043
Huawei Ethernet Switch S5710-108C-PWR-HI 48 PoE+ Ports Part Number 02354043 Huawei Ethernet Switch S5710-108C-PWR-HI 48 PoE+ Ports Part Number 02354043

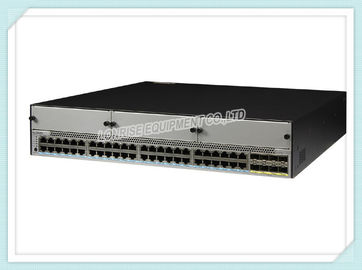

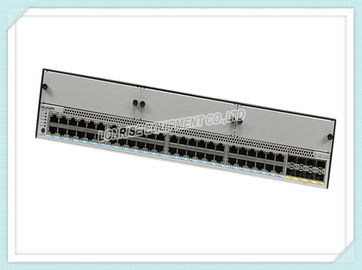

Large Image :  Huawei Ethernet Switch S5710-108C-PWR-HI 48 PoE+ Ports Part Number 02354043

Product Details:
Place of Origin: China
Brand Name: HUAWEI
Certification: CE
Model Number: S5710-108C-PWR-HI
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: Negotiatable
Packaging Details: NEW IN BOX
Delivery Time: 1-2 DAYS
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 100 PCS/MONTH

Huawei Ethernet Switch S5710-108C-PWR-HI 48 PoE+ Ports Part Number 02354043

Description
Brand: HUAWEI PN: S5710-108C-PWR-HI
Ports: 48x PoE+ 10/100/1000,8x10GE SFP+ Switching Capacity: 1024 Gbit/s
Power Supply: 350W AC / 1150W DC RPS: Not Supported
High Light:

gigabit network switch

,

huawei ethernet switches





Huawei Ethernet Switch S5710-108C-PWR-HI 48 PoE+ Ports,Part Number 02354043





S5710-108C-PWR-HI Overview



The S5710-108C-PWR-HI is advanced Ethernet switch based on new generation of high-performance hardware and Huawei Versatile Routing Platform (VRP). With 48 GE ports (10/100/1000Base-T) and 8 x 10 GE SFP+ ports, it provides a large switching capacity, high-density GE interfaces for users. What's more, it can be equipped with multiple types of card modules to meet different demands of users, and the PoE function ensures constant large power supply. All these features make the S5710-108C-PWR-HI the best choice as an access switch on large and medium-sized campus networks or data centers and aggregation switch on small campus networks. The S5710-108C-PWR-HI integrates many advanced technologies in terms of reliability, security, and energy conservation in order to help enterprise customers build a next-generation IT network.





S5710-108C-PWR-HI   Specification

S5710-108C-PWR-HI Specification

Fixed port 48 × 10/100/1000BASE-T, 8 × 10GE SFP+
MAC address table

IEEE 802.1d compliance

MAC address learning and aging

Static, dynamic, and blackhole MAC address entries

Packet filtering based on source MAC addresses

MAC address entries: 456K

VLAN

4K VLANs

Guest VLAN and voice VLAN

GVRP

MUX VLAN

VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports

1:1 and N:1 VLAN Mapping

Ring protection

RRPP ring topology and RRPP multi-instance

Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover

SEP

STP, RSTP, and MSTP

BPDU protection, root protection, and loop protection

BPDU Tunnel

Reliability

Ethernet OAM (IEEE 802.3ah and 802.1ag)

ITU-Y.1731

DLDP

LACP

MPLS features

MPLS L3VPN

MPLS L2VPN(VPWS/VPLS)

MPLS-TE

MPLS QoS

Notes

IP routing Static routing
IPv6 features

Neighbor Discovery (ND)

Path MTU (PMTU)

IPv6 ping, IPv6 tracert, and IPv6 Telnet

ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type

MLD v1/v2 snooping

Multicast

IGMP v1/v2/v3 snooping and IGMP fast leave

Multicast forwarding in a VLAN and multicast replication between VLANs

Multicast load balancing among member ports of a trunk

Controllable multicast

Port-based multicast traffic statistics

QoS/ACL

Rate limiting on packets sent and received by an interface

Packet redirection

Port-based traffic policing and two-rate three-color CAR

Eight queues on each port

WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms

Re-marking of the 802.1p priority and DSCP priority

Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID

Rate limiting in each queue and traffic shaping on ports

Security

User privilege management and password protection

DoS attack defense, ARP attack defense, and ICMP attack defense

Binding of the IP address, MAC address, interface, and VLAN

Port isolation, port security, and sticky MAC

MFF

Blackhole MAC address entries

Limit on the number of learned MAC addresses

802.1x authentication and limit on the number of users on an interface

AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC

SSH v2.0

Hypertext Transfer Protocol Secure (HTTPS)

CPU defense

Blacklist and whitelist

Access Security DHCP Relay, DHCP Server, DHCP Snooping, DHCP Security
Management and maintenance

Virtual cable test

Port mirroring and RSPAN (remote port mirroring)

Remote configuration and maintenance using Telnet

SNMP v1/v2c/v3

RMON

Web NMS

HGMP

System logs and alarms of different levels

802.3az EEE

Dying gasp

Interoperability

Supports VBST (Compatible with PVST/PVST+/RPVST)

Supports LNP (Similar to DTP)

Supports VCMP (Similar to VTP)

Operating environment

Operating temperature: 0℃–50℃

Relative humidity: 10%–90% (non-condensing)

Input voltage

AC:

Rated voltage range: 100 V to 240 V AC, 50/60 Hz

Maximum voltage range: 90 V to 264 V AC, 47/63 Hz

Dimensions (W x D x H) 442x470.0x87.2
Powerconsumption <1680W (PoE:1440W)
