Product Details:
|
| Brand: | HUAWEI | PN: | S5710-108C-PWR-HI |
|---|---|---|---|
| Ports: | - 48 X 10/100/1,000 BASE-T Ports, - 8 X 10 GE SFP+ Ports | Memory (RAM): | 1G |
| RPS: | Not Supported | Condition: | New With 1 Year Replacement Warranty |
| High Light: | gigabit network switch,huawei ethernet switches |
||

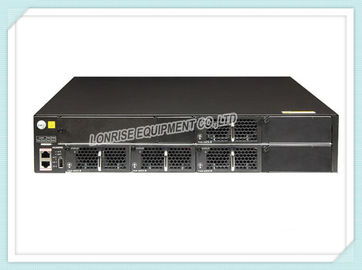

S5710-108C-PWR-HI Huawei Network Switch 48x10/100/1000 PoE+ ,8x10 Gig SFP+,with 4 Interface Slots
The S5710-108C-PWR-HI is advanced Ethernet switch based on new generation of high-performance hardware and Huawei Versatile Routing Platform (VRP). With 48 GE ports (10/100/1000Base-T) and 8 x 10 GE SFP+ ports, it provides a large switching capacity, high-density GE interfaces for users. What's more, it can be equipped with multiple types of card modules to meet different demands of users, and the PoE function ensures constant large power supply. All these features make the S5710-108C-PWR-HI the best choice as an access switch on large and medium-sized campus networks or data centers and aggregation switch on small campus networks. The S5710-108C-PWR-HI integrates many advanced technologies in terms of reliability, security, and energy conservation in order to help enterprise customers build a next-generation IT network.
| Product Code | S5710-108C-PWR-HI |
| Ports | - 48 x 10/100/1,000 BASE-T ports, - 8 x 10 GE SFP+ ports |
| Extended Slots |
Three slots on the front panel, One slot at the real panel |
| Memory (RAM) | 1 GB |
| Flash | 200 MB |
| MAC Address Table Size | 456 MAC |
| Subcard Supported | - Three slots on the front panel: support 16 x 1,000 Base-X SFP subcard and 16 x 10/100/1,000 Base-T subcard - One slot at the real panel: supports 4 x 40 GE QSFP+ subcard and 4 x 10 GE SFP+ subcard |
| Voltage Required |
AC: Rated voltage range: 100V to 240V, 50/60 Hz Maximum voltage range: 90V to 264V, 50/60 Hz |
| Power Device | Double swappable AC power supplies |
| Power Consumption Operational |
< 1,680W (Device: 240W, PoE: 1440W) |
| Forwarding performance | 504 Mpps |
| Switching capacity | 1024 Gbit/s |
| Dimensions (W x D x H) | 442 mm x 470 mm x 87.2 mm |
| Package Weight | 15.3 kg |
| RPS | Not supported |
| 1 | Forty-eight PoE+ 10/100/1000BASE-T ports | 2 | Eight 10GE SFP+ ports
Applicable modules and cables:
|
| 3 | Front card slot 1 | 4 | Front card slot 2 |
| 5 | Front card slot 3 | 6 | One console port |
| 7 | One ETH management port | 8 | One USB port |
| 9 | Fan slot 1 | 10 | Fan slot 2 |
| 11 | Fan slot 3 | 12 | Fan slot 4 |
| 13 | Power module slot 1 | 14 | Power module slot 2 |
| 15 | Ground screw | 16 | ESN label |
| 17 | Rear card slot | - | - |
