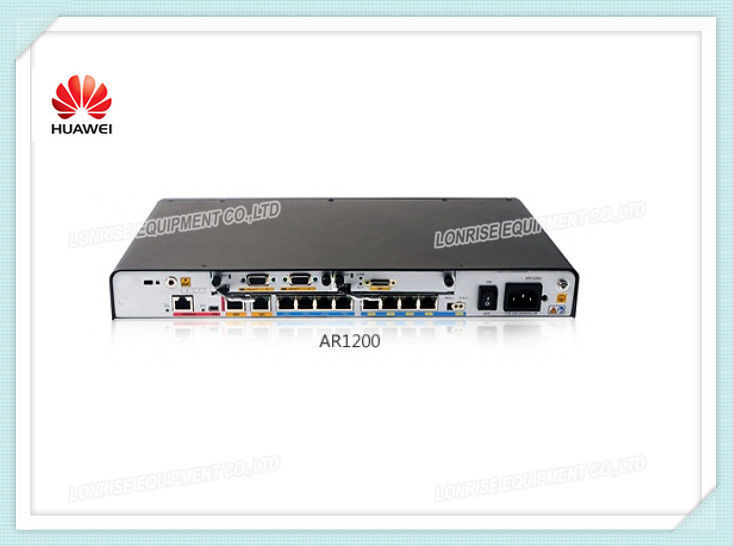

Huawei Next Generation AR1200 Series Router AR0MNTEH10100 BT-NTE-H101 Bundle

Huawei Next Generation AR1200 Series Router AR0MNTEH10100 BT-NTE-H101 Bundle
Huawei Next Generation AR1200 Series Router AR0MNTEH10100 BT-NTE-H101 Bundle

Large Image :  Huawei Next Generation AR1200 Series Router AR0MNTEH10100 BT-NTE-H101 Bundle

Product Details:
Place of Origin: China
Brand Name: Cisco
Certification: CE
Model Number: AR0MNTEH10100
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: New in box
Delivery Time: 1-2 days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000 pcs / month

Huawei Next Generation AR1200 Series Router AR0MNTEH10100 BT-NTE-H101 Bundle

Description
Brand: Cisco Model: AR0MNTEH10100
Memory: 512 MB Flash: 512 MB
Dimensions (W X D X H): 390.0 Mm X 232.5 Mm X 44.5 Mm Weight: 2.9 Kg (6.39 Lb)
High Light:

cisco ethernet router

,

cisco modular router

Huawei Next Generation AR1200 Series Router AR0MNTEH10100 BT-NTE-H101 Bundle



AR0MNTEH10100 Overview



Huawei AR G3 AR1200 Series AR0MNTEH10100 router is targeted for small enterprise or remote office environment to provide the voice solution (up to 30 phones). The AR1220 Voice bundle includes AR1220 Base Configuration,1-Port ADSL2+ A/M Card,2.125m Telephone Cable,Splitter,3m Shielded Straight Through Ethernet Cable,3m Shielded Crossover Network Cable and Britain type Power Cable. The non-blocking architecture combines with multi-core CPU of AR1200 Series router deliver resilient bandwidth for data traffic to optimal system performance.



Huawei Next Generation AR1200 Series Router AR0MNTEH10100 BT-NTE-H101 Bundle 0



AR0MNTEH10100 Specification





AR0MNTEH10100 Specification

WAN speed with services***

200 Mbit/s

Firewall Performance (large packet)

900 Mbit/s

Device Switching Capacity

8 Gbit/s

Slot Switching Bandwidth

SIC & WSIC slots: 2 Gbit/s

Number of Recommended Users

100

Fixed WAN Ports

2 x GE

Fixed LAN Ports

8 x FE (can be configured as WAN interfaces)

SIC Slots

2

WSIC Slots (default/max)

0/1

DSP Slots

-

Wi-Fi

-

USB 2.0 Ports

2

Mini-USB Ports

1

Serial Auxiliary/Console Port

1

Memory

512 MB

Flash

256 MB

Max. Power

60W

PoE Power

-

AC Power

100V to 240V

Frequency

50 Hz/60 Hz

DC power

-

Dimensions (H x W x D)

44.5 mm x 390 mm x 220 mm

Weight

2.9 kg (without interface cards)

Ambient Temperature

0°C to 45°C

Relative Humidity

5% to 95% (non-condensing)

Basic Features

DHCP server/client, PPPoE server/client, PPPoA server/client, PPPoEoA server/client, NAT, and Sub interface management

Voice

RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call, BEST, DISA, and SBC (only voice models support voice features)

WLAN (AP)

AP management, WLAN QoS (WMM), WLAN security (WEP/WPA/WPA2/key management), WLAN radio management (802.11b/g/n), and WLAN user management (only WLAN models support WLAN AP features)

WLAN (AC)

AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n, WLAN QoS (WMM), and WLAN security (WEP/WPA/WPA2/Key management)

3G

3G Interface card (WCDMA)

LTE

LTE Interface card (FDD LTE: Uplink: 50 Mbit/s; Downlink: 100 Mbit/s)

LAN

IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, and MSTP

IPv4 Unicast Routing

Routing policy, static route, RIP, OSPF, IS-IS, and BGP

IPv6 Unicast Routing

Routing policy, static route, RIPng, OSPFv3, IS-ISv6, and BGP4+

Multicast

IGMPv1/v2/v3, PIM SM, PIM DM, and MSDP

MPLS

LDP, MPLS L3 VPN, VLL, PWE3, static LSP, dynamic LSP, MPLS TE, IP FRR, LDP FRR, TE FRR

VPN

IPSec VPN, GRE VPN, DSVPN, A2A VPN, L2TP VPN, Smart VPN

QoS

DiffServ mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP + WRR; WAN interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, and traffic policy), Hierarchical QoS, WLAN QoS, FR QoS, and Smart Application Control (SAC)

Security

ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, and IP source tracing

Management and maintenance

Upgrade management, device management, web-based GUI, GTL, SNMPv1/v2c/v3, NTP, CWMP, Auto-Config, deployment using USB disk, and CLI





Business

Huawei Next Generation AR1200 Series Router AR0MNTEH10100 BT-NTE-H101 Bundle 1 Huawei Next Generation AR1200 Series Router AR0MNTEH10100 BT-NTE-H101 Bundle 2 Huawei Next Generation AR1200 Series Router AR0MNTEH10100 BT-NTE-H101 Bundle 3
