Product Details:
|
| Part Number: | N7K-C7004-S2 | Brand: | CISCO |
|---|---|---|---|
| Enclosure Type: | Rack-mountable 7U | Remote Management Protocol: | SNMP 1, SNMP 3, SNMP 2c, CLI |
| Compliant Standards: | IEEE 802.1ae | Processor: | 1 X Intel Xeon: 2.13 GHz |
| High Light: | optical ethernet switch,poe ethernet switch |
||

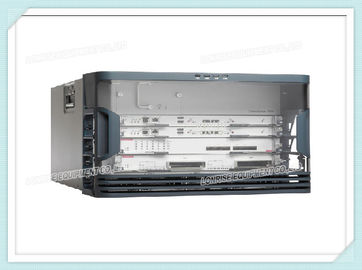

Nexus 7004 Bundle (Chassis.1xSUP2).No Power Supplies
N7K-C7004-S2 Specification |
|
| General | |
| Device Type | Switch - L3 - managed - with Cisco Nexus 7000 Series Supervisor 2 Module |
| Enclosure Type | Rack-mountable 7U |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, CLI |
| Features | Modular design |
| Compliant Standards | IEEE 802.1ae |
| Processor | 1 x Intel Xeon: 2.13 GHz |
| RAM | 8 GB |
| Flash Memory | 8 GB |
| Expansion / Connectivity | |
| Interfaces | 1 x console - RJ-45 management ¦ 1 x console RJ-45 ¦ 1 x USB Type B ¦ 2 x USB Type A ¦ 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 management |
| Expansion Slots | 4 (total) / 1 (free) x expansion slot ¦ 2 (total) / 1 (free) x CompactFlash Card |
| Installed Modules Qty (Max) | 1 (installed) / 4 (max) |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 (installed) / 2 (max) |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V |
| Miscellaneous | |
| Compliant Standards | NEBS level 3, FCC Class A certified, ETSI, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, EMC, ICES-003 Class A, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS |
| Dimensions & Weight | |
| Width | 17.4 in |
| Depth | 24.5 in |
| Height | 6.9 in |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance parts replacement - 1 year - response time: 10 days |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 95% (non-condensing) |
