N9K-C9372TX Cisco Switch Nexus 9000 Series Switch Nexus 9300 With 48p 1/10G-T And 6p 40G QSFP+

N9K-C9372TX Cisco Switch Nexus 9000 Series Switch Nexus 9300 With 48p 1/10G-T And 6p 40G QSFP+
N9K-C9372TX Cisco Switch Nexus 9000 Series Switch Nexus 9300 With 48p 1/10G-T And 6p 40G QSFP+

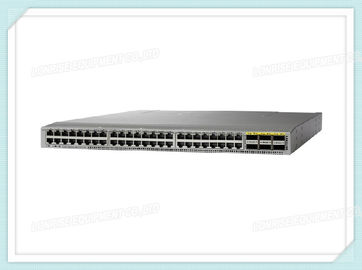

Large Image :  N9K-C9372TX Cisco Switch Nexus 9000 Series Switch Nexus 9300 With 48p 1/10G-T And 6p 40G QSFP+

Product Details:
Place of Origin: CHINA
Brand Name: CISCO
Certification: CE
Model Number: N9K-C9372TX
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: Negotiable
Packaging Details: NEW IN BOX
Delivery Time: 1-2 DAYS
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50 UNITS/MONTH

N9K-C9372TX Cisco Switch Nexus 9000 Series Switch Nexus 9300 With 48p 1/10G-T And 6p 40G QSFP+

Description
Part Number: N9K-C9372TX Brand: CISCO
Supported Speeds: 00 Megabit Ethernet And 1/10 Gigabit Ethernet Speeds Fans: 4
High Light:

optical ethernet switch

,

poe ethernet switch





N9K-C9372TX Cisco Nexus 9000 Series Switch Nexus 9300 with 48p 1/10G-T and 6p 40G QSFP+




N9K-C9372TX Overview



Cisco Nexus 9372TX Switch(N9K-C9372TX) is a 1RU switch that supports 1.44 Tbps of bandwidth and over 1150 mpps across 48 fixed 10-Gbps BASE-T ports and 6 fixed 40-Gbps QSFP+ ports.





N9K-C9372TX Cisco Switch Nexus 9000 Series Switch Nexus 9300 With 48p 1/10G-T And 6p 40G QSFP+ 0





N9K-C9372TX Specification



N9K-C9372TX Specification

Ports 48 fixed 1/10GBASE-T and 6 QSFP+ ports
Supported speeds 100 Megabit Ethernet and 1/10 Gigabit Ethernet speeds
40 Gigabit Ethernet uplink port 6 fixed QSFP+ ports
Advanced QSFP+ optics enable connectivity using existing 10 Gigabit Ethernet fiber.
The switch offers 25 MB of additional packet buffer space shared with all ports for more resilient operations.
Power supplies (up to 2) 650W AC, 930W DC, or 1200W HVAC/HVDC
Typical power*(AC & DC) 374.5W
Maximum power* (AC & DC) 694W
Input voltage (AC) 100 to 240V
Input voltage (HVAC) 200 to 277V
Input voltage (DC)

-40V to -72V DC (min-max)

-48V to -60V DC (nominal)

Input voltage (HVDC) –240 to –380V
Frequency (AC) 50 to 60 Hz
Fans 4
Physical (H x W x D) 1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1cm)
Acoustics 48.6 dBA at 40% fan speed, 65.2 dBA at 70% fan speed, and 76.5 dB at 100% fan speed
RoHS compliance Yes
Product Specifications
Maximum number of longest prefix match (LPM) routes 128,000*
Maximum number of IP host entries 208,000*
Maximum number of MAC address entries 96,000*
Number of multicast routes

● 32,000 (without virtual PortChannel [vPC])

● 32,000 (with vPC)

Number of Interior Gateway Management Protocol (IGMP) snooping groups

● 32,000 (without vPC)

● 32,000 (with vPC)

Maximum number of Cisco Nexus 2000 Series Fabric Extenders per switch 16
Number of access control list (ACL) entries

● 4000 ingress

● 1000 egress

Maximum number of VLANs 4096
Maximum number of Virtual Routing and Forwarding (VRF) instances 1000
Maximum number of links in a PortChannel 32
Maximum number of ECMP paths 64
Maximum number of PortChannels 528
Number of active SPAN sessions 4
Maximum number of Rapid per-VLAN Spanning Tree (RPVST) instances 507
Maximum number of Hot-Standby Router Protocol (HSRP) groups 490
Maximum number of Multiple Spanning Tree (MST) instances 64
Maximum number of VXLAN tunnel endpoints (VTEP) 256
Environmental Properties
Operating temperature 32 to 104°F (0 to 40°C)
Nonoperating (storage) temperature -40 to 158°F (-40 to 70°C)
Humidity 5 to 95% (noncondensing)
Altitude 0 to 13,123 ft (0 to 4000m)
Weight
Cisco Nexus 9372PX/9372PX-E without power supplies or fans 22.2 lb (10.1 kg)
Cisco Nexus 9372TX/9372TX-E without power supplies or fans 22.6 lb (10.25 kg)
Safety and EMC
Regulatory compliance Products should comply with CE Markings according to directives 2004/108/EC and 2006/95/EC
Safety

● UL 60950-1 Second Edition

● CAN/CSA-C22.2 No. 60950-1 Second Edition

● EN 60950-1 Second Edition

● IEC 60950-1 Second Edition

● AS/NZS 60950-1

● GB4943

EMC: Emissions

● 47CFR Part 15 (CFR 47) Class A

● AS/NZS CISPR22 Class A

● CISPR22 Class A

● EN55022 Class A

● ICES003 Class A

● VCCI Class A

● EN61000-3-2

● EN61000-3-3

● KN22 Class A

● CNS13438 Class A

EMC: Immunity

● EN55024

● CISPR24

● EN300386

● KN 61000-4 series

RoHS The product is RoHS-6 compliant with exceptions for leaded-ball grid-array (BGA) balls and lead press-fit connectors
