Cisco Switch 3850 Series Platform C1-WS3850-24P/K9 24 Port PoE IP Manageable Ethernet Switch

Cisco Switch 3850 Series Platform C1-WS3850-24P/K9 24 Port PoE IP Manageable Ethernet Switch
Cisco Switch 3850 Series Platform C1-WS3850-24P/K9 24 Port PoE IP Manageable Ethernet Switch Cisco Switch 3850 Series Platform C1-WS3850-24P/K9 24 Port PoE IP Manageable Ethernet Switch

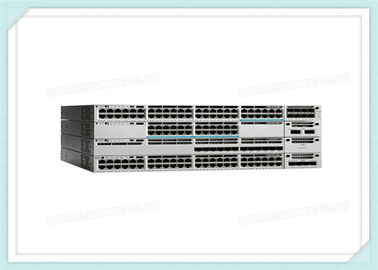

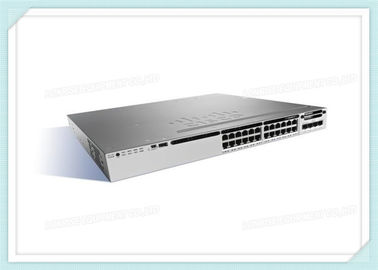

Large Image :  Cisco Switch 3850 Series Platform C1-WS3850-24P/K9 24 Port PoE IP Manageable Ethernet Switch

Product Details:
Place of Origin: China
Brand Name: Cisco
Certification: CE
Model Number: C1-WS3850-24P/K9
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: New in box
Delivery Time: 1~2 days
Payment Terms: Western Union, Paypal,T/T
Supply Ability: 1000 Pcs /Month

Cisco Switch 3850 Series Platform C1-WS3850-24P/K9 24 Port PoE IP Manageable Ethernet Switch

Description
Brand: Cisco Parts Number: 24 X 10/100/1000 (PoE+)
Ports: 12 SFP+ Ports And 4 10G SFP Ports (C3850-NM-4-10G) Stack Bandwidth: 480 Gbps
Condition: New With 1Year Replacement Warranty Shipment: DHL,UPS,TNT,
High Light:

optical ethernet switch

,

poe ethernet switch

Cisco ONE Catalyst 3850 Series Platform C1-WS3850-24P/K9 24 Port PoE Ip Manageable Ethernet Switch



C1-WS3850-24P/K9  Overview



The Cisco® Catalyst® 3850 Series is the next generation of enterprise-class stackable Ethernet and Multigigabit Ethernet access and aggregation layer switches that provide full convergence between wired and wireless on a single platform. Cisco's new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480 technology. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ45 and fiber-based downlink interfaces, and redundant fans and power supplies. With speeds that reach 10Gbps, the Cisco Catalyst 3850 Multigigabit Ethernet Switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure



Cisco Switch 3850 Series Platform C1-WS3850-24P/K9 24 Port PoE IP Manageable Ethernet Switch 0



C1-WS3850-24P/K9 Specification



C1-WS3850-24P/K9 Specification

General

Device Type

Switch - 24 ports - managed - stackable

Enclosure Type

Desktop, rack-mountable 1U

Subtype

Gigabit Ethernet

Ports

24 x 10/100/1000 (PoE+)

Power Over Ethernet (PoE)

PoE+

PoE Budget

435 W

Performance

Switching capacity: 88 Gbps ¦ Stacking bandwidth: 480 Gbps

Capacity

IPv4 routes: 24000 ¦ NetFlow entries: 24000 ¦ Switched virtual interfaces (SVIs): 1000

MAC Address Table Size

32000 entries

Jumbo Frame Support

9198 bytes

Routing Protocol

Static IP routing

Remote Management Protocol

SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, SSH, CLI

Authentication Method

Kerberos, Secure Shell (SSH), RADIUS, TACACS+

Features

Auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), PoE+, STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Energy Efficient Ethernet, Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF)

Compliant Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at

RAM

4 GB

Flash Memory

2 GB

Status Indicators

Port transmission speed, port duplex mode, system, status, PoE

Expansion / Connectivity

Interfaces

24 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 1 x USB Type A ¦ 1 x management (mini-USB) Type B ¦ 1 x management (RS-232) RJ-45 ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 2 x network stack device

Expansion Slots

1 (total) / 1 (free) x expansion slot

Power

Power Device

Internal power supply

Installed Qty

1 (installed) / 2 (max)

Power Redundancy

Optional

Power Redundancy Scheme

1+1 (with optional power supply)

Power Provided

715 Watt

Voltage Required

AC 120/230 V (50/60 Hz)

Miscellaneous

MTBF

269,450 hours

Compliant Standards

CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, KCC, FCC Part 15 A, ISO 7779, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A

Software / System Requirements

Software Included

Cisco IOS Universal

Dimensions & Weight

Width

17.5 in

Depth

17.7 in

Height

1.8 in

Weight

16.31 lbs

Manufacturer Warranty

Service & Support

Limited warranty - advance parts replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days

Environmental Parameters

Min Operating Temperature

23 °F

Max Operating Temperature

113 °F

Humidity Range Operating

10 - 95% (non-condensing)

Min Storage Temperature

-40 °F

Max Storage Temperature

158 °F
