Product Details:
|
| Brand: | Cisco | Parts Number: | WS-C3850-16XS-E |
|---|---|---|---|
| Ports: | 12 SFP+ Ports And 4 10G SFP Ports (C3850-NM-4-10G) | Stack Bandwidth: | 480 Gbps |
| High Light: | optical ethernet switch,fiber optic network switch |
||

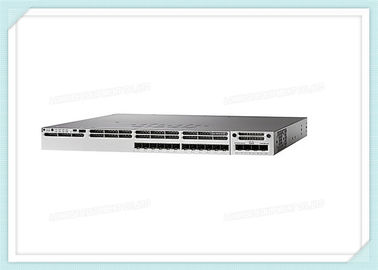

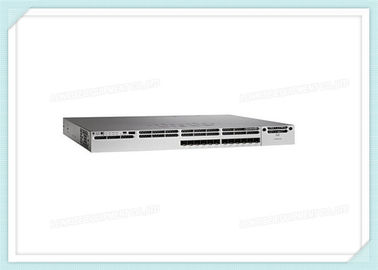

Cisco WS-C3850-16XS-E supports 12 SFP+ port stackable model, with C3850-NM-4-10G module and 350WAC power supply. 1 RU, and IP Servuces feature set. Cisco Catalyst 3850 Series provides capabilities that ideally suited to support the convergence of wired and wireless access. The new Cisco Unified Access Data™ Plane (UADP) Application-Specific Integrated Circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility, and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise®-480 technology.
|
WS-C3850-16XS-E Specification |
|
|
Capacity |
64 Wireless LANs |
|
Dimensions & Weight |
Width: 17.5 in Depth: 17.7 in Height: 1.8 in Weight: 12.79 lbs |
|
Environmental Parameters |
Min Operating Temperature: 23 °F Max Operating Temperature: 113 °F Humidity Range Operating: 10 - 95% (non-condensing) Min Storage Temperature: -40 °F Max Storage Temperature: 158 °F |
|
Switching capacity |
320 Gbps |
|
RAM |
4GB |
|
Flash Memory |
4GB |
|
Interface Provided |
Qty: 4 Type: Management (mini-USB) Connector Type: Type B Comments: Management |
|
Miscellaneous |
Compliant Standards: AS/NZS 3548 Class A, AS/NZS CISPR 22, BSMI Class A, CAN/CSA C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, CNS 13438, EN 300386, EN 55022 Class A, EN 60950-1, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-1, EN50082-1, EN55024, FCC CFR47 Part 15, FCC Part 15 A, ICES-003 Class A, IEC 60950-1, IEC 60950-1 Second Edition, KCC, KN22 Class A, KN24, NOM, RoHS 5/6, UL 60950-1, UL 60950-1 Second Edition, VCCI Class A
Authentication Method: Kerberos, RADIUS, Secure Shell (SSH), TACACS+
MTBF: 371,440 hours Height (Rack Units): 1U |
|
Software |
Cisco IOS IP Services |
|
Power Device |
Frequency Required: 50 - 60 Hz Power Provided: 350 Watt Installed Qty: 1 Max Supported Qty: 2 Nominal Voltage: AC 120/230 V Power Redundancy: Optional Power Redundancy Scheme: 1+1 (with optional power supply) Type: Internal power supply |
