Cisco AIR-CAP3602E-E-K9 802.11n CAP W / CleanAir Mod Ext Ant E Reg Domain

Cisco AIR-CAP3602E-E-K9 802.11n CAP W / CleanAir Mod Ext Ant E Reg Domain
Cisco AIR-CAP3602E-E-K9 802.11n CAP W / CleanAir Mod Ext Ant E Reg Domain Cisco AIR-CAP3602E-E-K9 802.11n CAP W / CleanAir Mod Ext Ant E Reg Domain

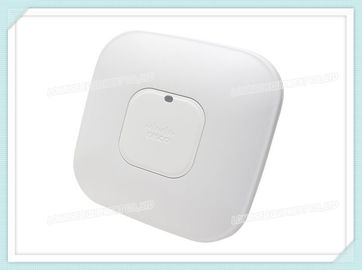

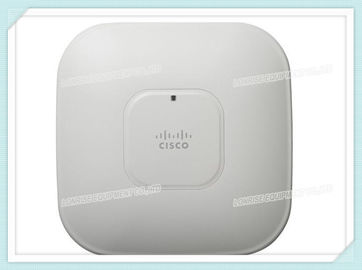

Large Image :  Cisco AIR-CAP3602E-E-K9 802.11n CAP W / CleanAir Mod Ext Ant E Reg Domain

Product Details:
Place of Origin: USA
Brand Name: Cisco
Certification: CE
Model Number: AIR-CAP3602E-E-K9
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: NEW IN BOX
Delivery Time: 1-3 days
Payment Terms: T/T, Western Union, Paypal, Alipay, Wechat
Supply Ability: 20 units per month

Cisco AIR-CAP3602E-E-K9 802.11n CAP W / CleanAir Mod Ext Ant E Reg Domain

Description
Brand: Cisco Model: AIR-CAP3602E-E-K9
Wireless Type: 802.11G, 802.11n RAM: 256 MB
High Light:

cisco poe wifi access point

,

cisco aironet access point

Cisco AIR-CAP3602E-E-K9 802.11n CAP w/CleanAir; 4x4:3SS; Mod; Ext Ant; E Reg Domain



AIR-CAP3602E-E-K9 Overview



AIR-CAP3602E-E-K9 is Cisco Aironet 3600 Series Access Point:

●4 x 4 MIMO technology with three spatial streams

●IEEE 802.11 a/b/g/n

●Dual-band, Integrated antennas and A regulatory domain

●Modular architecture design, MIMO equalization

●Cisco Clientlink 2.0, Cisco CleanAir technology

Designed to address the wireless connectivity needs of factories, large office and other indoor industrial environment, AIR-CAP3602E-E-K9 is the enterprise class, three-spatial-stream access point with Dual-band, controller-based 802.11a/g/n, internal antennas and A regulatory domain. Cisco Aironet 3600 series delivers industry leading performance for secure and reliable wireless connection with up to 450 Mpbs or 1.3 Gbps with IEEE802.11ac module over great coverage to ensure the robust mobility experience.



Cisco AIR-CAP3602E-E-K9 802.11n CAP W / CleanAir Mod Ext Ant E Reg Domain 0





AIR-CAP3602E-E-K9 Specifications





AIR-CAP3602E-E-K9 Specification

Product Description

Cisco Catalyst 3600 Series Access Points with external antennas



Devide Type

Wireless Access point



Regulatory domain

A regulatory domain



Supported wireless LAN controllers

● Cisco 2500 Series Wireless Controllers
● Cisco Wireless Controller Module for ISR G2
● Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches
● Cisco 5500 Series Wireless Controllers

● Cisco Flex 7500 Series Wireless Controllers
● Cisco 8500 Series Wireless Controllers ● Cisco Virtual Wireless Controller
● Cisco 5760 Wireless LAN Controller
● Cisco Catalyst 3850 Series Switches
● Cisco Catalyst 3650 Series Switches

Software

Cisco Unified Wireless Network Software Release with AireOS Wireless Controllers:
● 7.2 or later for the Cisco Aironet 3600 Series Access Point
● 7.4 or later for support of the Wireless Security Module for the 3600 Series Access Point
● 7.5 or later for support of the 802.11ac Wave 1 Module for the 3600 Series Access Point

Cisco IOS XE Software Release:
● 3.2.0SE or later for the Cisco Aironet 3600 Series Access Point
● 3.3.0SE or later for the Cisco 802.11ac Wave 1 Module for the 3600 Series Access Point
● Wireless Security Module for the 3600 Series Access Point support – (T arget 1HCY15)

Data rates supported

● 802.11a: up to 54 Mbps
● 802.11g: up to 54 Mbps

● 802.11n: up to 450 Mbps

Maximum number of nonoverlapping channels

5 GHz
● 802.11a:
◦ 20 MHz: 21
● 802.11n:
◦ 20 MHz: 21
◦ 40 MHz: 9

2.4 GHz
● 802.11b/g:
◦ 20 MHz: 3
● 802.11n:
◦ 20 MHz: 3

Antenna (purchase separately)

● Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)

● Cisco offers the industry's broadest selection of 802.11n antennas delivering optimal coverage for a variety of deployment scenarios

Interfaces

● 10/100/1000BASE-T autosensing (RJ-45)

● Management console port (RJ-45)

System memory

● 256 MB DRAM

● 32 MB flash

Module options

● Cisco Aironet Wireless Security Module
● Cisco Aironet IEEE 802.1ac Wave 1 Module

● Cisco Universal Small Cell 5310

Power consumption (purchase separately)

● No external module installed, 4x4:3 on 2.4/5 GHz : 16.1 Watts

● with wireless Security module, 4x4:3 on 2.4/5 GHz +WSM: 19.6 Watts



● No external module installed, 3x3:3 on 2.4/5 GHz : 15.4 Watts

● with wireless Security module, 2x2:2 on 2.4/5 GHz +WSM: 15.4 Watts

IEEE standards

● IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d

● IEEE 802.11ac (by module)

Security

● 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA
● 802.1X

● Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP)

Extensible Authentication Protocol (EAP) types

● EAP-Transport Layer Security (TLS)
● EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)
● Protected EAP (PEAP) v0 or EAP-MSCHAPv2

● EAP-Flexible Authentication via Secure Tunneling (FAST)
● PEAP v1 or EAP-Generic Token Card (GTC)
● EAP-Subscriber Identity Module (SIM)

Frequency band and 20-MHz operating channels

A (A regulatory domain):
● 2.412 to 2.462 GHz; 11 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.700 GHz, 8 channels
(excludes 5.600 to 5.640 GHz)
● 5.745 to 5.825 GHz; 5 channels
C (C regulatory domain):
● 2.412 to 2.472 GHz; 13 channels
● 5.745 to 5.825 GHz; 5 channels
E (E regulatory domain):
● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.700 GHz, 8 channels
(excludes 5.600 to 5.640 GHz)
I (I regulatory domain):
● 2.412 to 2.472 GHz, 13 channels
● 5.180 to 5.320 GHz; 8 channels
K (K regulatory domain):
● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.620 GHz, 7 channels
● 5.745 to 5.805 GHz, 4 channels

N (N regulatory domain):
● 2.412 to 2.462 GHz; 11 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.745 to 5.825 GHz; 5 channels
Q (Q regulatory domain):
● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.700 GHz; 11 channels
R (R regulatory domain):
● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
● 5,660 to 5,805 GHz, 7 channels
S (S regulatory domain):
● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.745 to 5.825 GHz; 5 channels
T (T regulatory domain):
● 2.412 to 2.462 GHz; 11 channels
● 5.280 to 5.320 GHz; 3 channels
● 5.500 to 5.700 GHz, 8 channels
(excludes 5.600 to 5.640 GHz)
● 5.745 to 5.825 GHz; 5 channels

Environmental

● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
● Nonoperating (storage) altitude test: -25˚C, 15,000 ft.
● Operating temperature: -4° to 131°F (-20° to 55°C)

● Operating humidity: 10% to 90% percent (noncondensing)
● Operating altitude test: -40˚C, 9843 ft.
