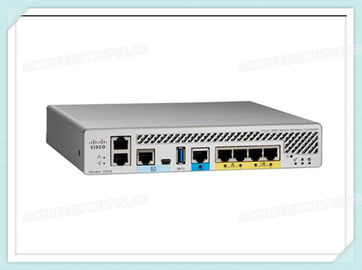

AIR-CT3504-K9 Cisco WLAN Wireless Acess Point Controller 8GB DDR4 Throughput 4 Gbps

AIR-CT3504-K9 Specification

Control/Data Plane Memory—8GB DDR4

Boot Flash—8MB SPI NOR Serial Boot

Bulk Flash—32GB eMMC

· RFC 768 UDP

· RFC 791 IP

· RFC 2460 IPv6

· RFC 792 Internet Control Message Protocol (ICMP)

· RFC 793 TCP

· RFC 826 Address Resolution Protocol (ARP)

· RFC 1122 Requirements for Internet Hosts

· RFC 1519 Classless Interdomain Routing (CIDR)

· RFC 1542 BOOTP

· RFC 2131 Dynamic Host Configuration Protocol (DHCP)

· RFC 5415 CAPWAP Protocol

· RFC 5416 CAPWAP Binding for 802.11

· Wi-Fi Protected Access (WPA)

· IEEE 802.11i (WPA2, RSN)

· RFC 1321 MD5 Message-Digest Algorithm

· RFC 1851 Encapsulating Security Payload (ESP) Triple Data Encryption Standard (3DES) Transform

· RFC 2104 HMAC: Keyed Hashing for Message Authentication

· RFC 2246 Transport Layer Security (TLS) Protocol Version 1.0

· RFC 2401 Security Architecture for the Internet Protocol

· RFC 2403 HMAC-MD5-96 within ESP and Authentication Header (AH)

· RFC 2404 HMAC-SHA-1-96 within ESP and AH

· RFC 2405 ESP DES-CBC Cipher Algorithm with Explicit IV

· RFC 2407 Interpretation for Internet Security Association and Key Management Protocol (ISAKMP)

· RFC 2408 ISAKMP

· RFC 2409 Internet Key Exchange (IKE)

· RFC 2451 ESP Cipher Block Chaining (CBC)-Mode Cipher Algorithms

· RFC 3280 Internet X.509 Public Key Infrastructure (PKI) Certificate and Certificate Revocation List (CRL) Profile

· RFC 4347 Datagram Transport Layer Security

· RFC 5426 TLS Protocol Version 1.2

Wired Equivalent Privacy (WEP) and Temporal Key Integrity Protocol-Message Integrity Check
(TKIP-MIC):

· RC4 40, 104 and 128 bits (both static and shared keys)

· Advanced Encryption Standard (AES): CBC, Counter with CBC-MAC (CCM), Counter with CBC Message Authentication Code Protocol (CCMP)

· Data Encryption Standard (DES): DES-CBC, 3DES

· Secure Sockets Layer (SSL) and TLS: RC4 128-bit and RSA 1024- and 2048-bit

· DTLS: AES-CBC

· IPsec: DES-CBC, 3DES, AES-CBC

· 802.1AE MACsec encryption

· IEEE 802.1X

· RFC 2548 Microsoft Vendor-Specific RADIUS Attributes

· RFC 2716 Point-to-Point Protocol (PPP) Extensible Authentication Protocol (EAP)-TLS

· RFC 2865 RADIUS Authentication

· RFC 2866 RADIUS Accounting

· RFC 2867 RADIUS Tunnel Accounting

· RFC 2869 RADIUS Extensions

· RFC 3576 Dynamic Authorization Extensions to RADIUS

· RFC 5176 Dynamic Authorization Extensions to RADIUS

· RFC 3579 RADIUS Support for EAP

· RFC 3580 IEEE 802.1X RADIUS Guidelines

· RFC 3748 EAP

· Web-based authentication

· TACACS support for management users

· Simple Network Management Protocol (SNMP) v1, v2c, v3

· RFC 854 Telnet

· RFC 1155 Management Information for TCP/IP-Based Internets

· RFC 1156 MIB

· RFC 1157 SNMP

· RFC 1213 SNMP MIB II

· RFC 1350 Trivial File Transfer Protocol (TFTP)

· RFC 1643 Ethernet MIB

· RFC 2030 Simple Network Time Protocol (SNTP)

· RFC 2616 HTTP

· RFC 2665 Ethernet-Like Interface Types MIB

· RFC 2674 Definitions of Managed Objects for Bridges with Traffic Classes, Multicast Filtering, and Virtual Extensions

· RFC 2819 Remote Monitoring RMON MIB

· RFC 2863 Interfaces Group MIB

· RFC 3164 Syslog

· RFC 3414 User-Based Security Model (USM) for SNMPv3

· RFC 3418 MIB for SNMP

· RFC 3636 Definitions of Managed Objects for IEEE 802.3 MAUs

· Cisco private MIBs

· Web-based: HTTP/HTTPS

· Command-line interface: Telnet, Secure Shell (SSH) Protocol, serial port

· Cisco Prime Infrastructure

· 1x Multigigabit Ethernet interface (up to 5 Gigabit Ethernet) + 4x 1 Gigabit Ethernet interfaces (RJ-45)

· 1x service port: 1 Gigabit Ethernet port (RJ-45)

· 1x redundancy port: 1 Gigabit Ethernet port (RJ-45)

· 1x console port: Serial port (RJ-45)

· 1x console port: Serial port (mini-B USB)

· 1x USB 3.0 port

· LED indicators: Network link, diagnostics

Dimensions: 1.73 x 9.5 x 8.5 in. (43.94 x 214.3 x 215.9 mm)

Weight: 4.4lbs

Temperature:

Operating: 32 to 104 °F (0 to 40°C)

Storage: -4 to 158 °F (-20 to 70°C)

Humidity:

Operating Humidity: 5% to 95% RH non-condensing

Storage Humidity: 0% to 95% RH non-condensing

Power adapter: Input power: 100 to 240 VAC; 50/60 Hz

Heat dissipation (without PoE): 47W, 160BTU/hr

Heat dissipation (with PoE): 98W, 335BTU/hr

CE Markings per directives 2004/108/EC and 2006/95/EC Safety:

· UL 60950-1 Second Edition

· CAN/CSA-C22.2 No. 60950-1 Second Edition

· EN 60950-1 Second Edition

· IEC 60950-1 Second Edition

· AS/NZS 60950-1

· GB4943 2011 EMC - Emissions:

· 47CFR Part 15 (CFR 47) Class B

· AS/NZS CISPR22 Class B

· EN 55032 Class B

· ICES003 Class A VCCI Class B

· EN 61000-3-2 EN 61000-3-3 KN22 Class B

· CNS13438 Class B EMC - Immunity:

· EN 55024

· CISPR24

· EN 300386

· KN24
