Cisco WS-C3850-48P-L Switch Access Layer 48 * 10/100/1000 Ethernet POE+ Ports - LAN Base

China Cisco WS-C3850-48P-L Switch Access Layer 48 * 10/100/1000 Ethernet POE+ Ports - LAN Base supplier
Cisco WS-C3850-48P-L Switch Access Layer 48 * 10/100/1000 Ethernet POE+ Ports - LAN Base supplier Cisco WS-C3850-48P-L Switch Access Layer 48 * 10/100/1000 Ethernet POE+ Ports - LAN Base supplier

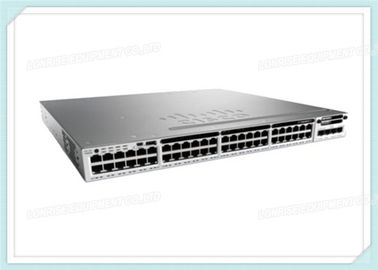

Large Image :  Cisco WS-C3850-48P-L Switch Access Layer 48 * 10/100/1000 Ethernet POE+ Ports - LAN Base

Product Details:

Place of Origin: CHINA
Brand Name: CISCO
Certification: CE
Model Number: WS-C3850-48P-L

Payment & Shipping Terms:

Minimum Order Quantity: 1 UNIT
Price: Negotiable
Packaging Details: NEW IN BOX
Delivery Time: 1-2 DAYS
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50 UNITS/MONTH
Contact Now
Detailed Product Description
Part Number: WS-C3850-48P-L Brand: CISCO
Ports: 48 X 10/100/1000 (POE+) Available PoE Power: 435W
Switching Capacity: 176Gbps Stack Bandwidth: 480Gbps





Cisco WS-C3850-48P-L Switch Access Layer 48 * 10/100/1000 Ethernet POE+ ports - LAN Base







WS-C3850-48P-L  Overview





Cisco Catalyst 3850-48P-L switch is the next generation stackable enterprise level switch and integrated with 48 Ethernet POE + ports with upgradeable LAN base IOS image.









WS-C3850-48P-L Specification



WS-C3850-48P-L Specification

model info: WS-C3850-48P-L
enclosure type Rack-mountable - 1U
Ports 48 x 10/100/1000 (POE+)
Network management Interface ● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
● Management console port: RJ-45-to-DB9 cable for PC connections
Available PoE Power 435W
Switching Capacity 176Gbps
Maximum stacking number up to 9 switches with same IOS feature set in same series
Stack Bandwidth 480Gbps
Forwarding Performance 130.95Mpps
FNF (Flexible NetFlow) entries Disabled (IP base license required)
Maximum VLANs IDs 255
MAC Address Table Size 32K
CPU Multicore CPU
RAM 4 G
Flash Memory 2 G
Wireless
Number of AP per switch/stack 100
Number of wireless clients per switch/stack 2000
Total number of WLANs per switch 64
Wireless bandwidth per switch up to 40Gbps
Supported Aironet AP series 3600, 3500, 2600, 1600, 1260, 1140, 1040
Expansion / Connectivity
Console ports USB (Type-B), Ethernet (RJ-45)
Expansion Slot(s) 1 network module slot and 1 power redundant slot
Network Modules Selection ● C3850-NM-4-1G: 4 x 1G uplinks network module
● C3850-NM-4-10G: 4 x 10G uplinks network module
●C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module
Stacking cable ●STACK-T1-50CM StackWise stacking cable with a 0.5 m length
●STACK-T1-1M StackWise stacking cable with a 1.0 m length
●STACK-T1-3M StackWise stacking cable with a 3.0 m length
Stack Power Cable (recommended) ●CAB-SPWR-30CM stack power cable with a 30CM length
●CAB-SPWR-150CM stack power cable with a 150CM length
Power supply PWR-C1-715WAC
Power Device Power supply - redundant - plug-in module
Power Redundancy optional
Voltage range (Auto) 100V-240V
Power Consumption of standalone(in Watts) 135.96 (Max)
Miscellaneous
Width 17.5 Inches (44.5 cm)
Depth 17.7 Inches (44.5 Cm)
Height 1.75 Inches (4.45 cm)
Weight 17.4 Pounds (7.9Kg)
Rack Mounting Kit optional
MTBF in hours 241,050
Compliant Standards

● IEEE 802.1D Spanning Tree Protoco
● IEEE 802.1p CoS Prioritization
● IEEE 802.1Q VLAN
● IEEE 802.1s
● IEEE 802.1w
● IEEE 802.1X
● IEEE 802.1X-Rev
●IEEE 802.11
● IEEE 802.1ab (LLDP)
● IEEE 802.3ad
● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports

● IEEE 802.3 10BASE-T
● IEEE 802.3u 100BASE-TX
● IEEE 802.3ab 1000BASE-T
● IEEE 802.3z 1000BASE-X
● RMON I and II standards
● SNMP v1, v2c, and v3
●IEEE 802.3af and IEEE 802.3at

Technical Support and Services ● Cisco SMARTnet Service ● Cisco Smart Foundation Service ● Cisco SP Base Service ● Cisco Focused Technical Support Services
Environmental Ranges
With AC power supply Operating environment and altitude
Operating temperature up to 5000 ft (1500 m) 23ºF to 113ºF (-5ºC to +45ºC)
Operating temperature up to 10,000 ft (3000 m) 23ºF to 104ºF (-5ºC to +40ºC)
Short-term exception at sealevel with single fan failure 23ºF to 113ºF (-5ºC to +45ºC)
Short-term exception up to 5000 feet (1500 m) 23ºF to 122ºF (-5ºC to 50ºC)
Short-term exception up to 10,000 feet (3000 m) 23ºF to 113ºF (-5ºC to 45ºC)
With DC power supply Operating environment and altitude (NEBS)
Operating temperature up to 6000 ft (1800 m) 23ºF to 113ºF (-5ºC to +45ºC)
Operating temperature up to 10,000 ft (3000 m) 23ºF to 104ºF (-5ºC to +40ºC)
Operating temperature up to 13,000 ft (4000m) 23ºF to 95ºF (-5ºC to 35ºC)
Short-term exception up to 6,000 feet (1800 m) 23ºF to 131ºF (-5ºC to +55ºC)
Short-term exception up to 10,000 feet (3000 m) 23ºF to 122ºF (-5ºC to +50ºC)
Short-term exception up to 13,000 feet (4000 m) 23ºF to 113ºF (-5ºC to +45ºC)
Short-term exception at sealevel with single fan failure 23ºF to 113ºF (-5ºC to +45º)
Storage environment -40ºF to 160ºF (-40ºC to 70ºC)
Operating altitude Up to 13,000 Feet (Up to 4000 Meters)
Storage altitude Up to 15,000 Feet (Up to 4573 Meters)
Operating relative humidity 10% to 95% noncondensing
Storage relative humidity 10% to 95% noncondensing







FAQ




1. Where do your products come from?
All of our products are from Cisco/Huawei distribution , Cisco/Huawei partner directly. We are Cisco partner at local, with cisco verified certification.


2. If all equioments I can buy service from local cisco ?
For all equipments you can buy service from local, because our goods are smart net free, all with clean serial number.


3. How to ship the goods?
Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.


4. What’s your payment term?
We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.
