Cisco Switch WS-C3850-48F-S Layer 3 - 48 * 10/100/1000 Ethernet POE+ Ports IP Base

Cisco Switch WS-C3850-48F-S Layer 3 - 48 * 10/100/1000 Ethernet POE+ Ports IP Base
Cisco Switch WS-C3850-48F-S Layer 3 - 48 * 10/100/1000 Ethernet POE+ Ports IP Base Cisco Switch WS-C3850-48F-S Layer 3 - 48 * 10/100/1000 Ethernet POE+ Ports IP Base

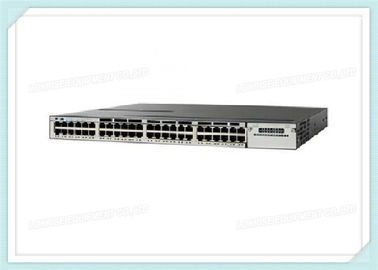

Large Image :  Cisco Switch WS-C3850-48F-S Layer 3 - 48 * 10/100/1000 Ethernet POE+ Ports IP Base

Product Details:
Place of Origin: CHINA
Brand Name: CISCO
Certification: CE
Model Number: WS-C3850-48F-S
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: Negotiable
Packaging Details: NEW IN BOX
Delivery Time: 1-2 DAYS
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50 UNITS/MONTH

Cisco Switch WS-C3850-48F-S Layer 3 - 48 * 10/100/1000 Ethernet POE+ Ports IP Base

Description
Part Number: WS-C3850-48F-S Brand: CISCO
Ports: 48 X 10/100/1000 (POE+) Model: Fiber Optic Switch
Maximum Stacking Number: Up To 9 Switches With Same IOS Feature Set In Same Series Total Number Of WLANs Per Switch: 64
High Light:

optical ethernet switch

,

fiber optic network switch





Cisco Switch WS-C3850-48F-S Layer 3 - 48 * 10/100/1000 Ethernet POE+ ports IP Base







WS-C3850-48F-S  Overview





Cisco next generation Catalyst WS-C3850-48F-S is integrated with 48 Ethernet POE+ ports stackable enterprise level switch with IP base IOS image. WS-C3850-48F-S supports up to 1K VLANs and delivers comprehensive layer 2 and limited layer 3 capabilities by offering the feasible solution for access layer or distribution layer.









WS-C3850-48F-S Specification



WS-C3850-48F-S Specification

model info: WS-C3850-48F-S
enclosure type Rack-mountable - 1U
Ports 48 x 10/100/1000 (POE+)
Network management Interface ● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
● Management console port: RJ-45-to-DB9 cable for PC connections
Available PoE Power 800W
Switching Capacity 176Gbps
Maximum stacking number up to 9 switches with same IOS feature set in same series
Stack Bandwidth 480Gbps
Forwarding Performance 130.95Mpps
FNF (Flexible NetFlow) entries 48,000 flows
Maximum VLANs IDs 1000
MAC Address Table Size 32K
CPU Multicore CPU
RAM 4 G
Flash Memory 2 G
Wireless
Number of AP per switch/stack 100
Number of wireless clients per switch/stack 2000
Total number of WLANs per switch 64
Wireless bandwidth per switch up to 40Gbps
Supported Aironet AP series 3600, 3500, 2600, 1600, 1260, 1140, 1040
Expansion / Connectivity
Console ports USB (Type-B), Ethernet (RJ-45)
Expansion Slot(s) 1 network module slot and 1 power redundant slot
Network Modules Selection ● C3850-NM-4-1G: 4 x 1G uplinks network module
● C3850-NM-4-10G: 4 x 10G uplinks network module
●C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module
Stacking cable ●STACK-T1-50CM StackWise stacking cable with a 0.5 m length
●STACK-T1-1M StackWise stacking cable with a 1.0 m length
●STACK-T1-3M StackWise stacking cable with a 3.0 m length
Stack Power Cable (recommended) ●CAB-SPWR-30CM stack power cable with a 30CM length
●CAB-SPWR-150CM stack power cable with a 150CM length
Power supply PWR-C1-1100WAC
Power Device Power supply - redundant - plug-in module
Power Redundancy optional
Voltage range (Auto) 100V-240V
Power Consumption of standalone(in Watts) 143.77 (Max)
Miscellaneous
Width 17.5 Inches (44.5 cm)
Depth 19.2 Inches (48.8 cm)
Height 1.75 Inches (4.45 cm)
Weight 17.6 Pounds (8.0Kg)
Rack Mounting Kit optional
MTBF in hours 241,050
Compliant Standards

● IEEE 802.1D Spanning Tree Protoco
● IEEE 802.1p CoS Prioritization
● IEEE 802.1Q VLAN
● IEEE 802.1s
● IEEE 802.1w
● IEEE 802.1X
● IEEE 802.1X-Rev
●IEEE 802.11
● IEEE 802.1ab (LLDP)
● IEEE 802.3ad
● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports

● IEEE 802.3 10BASE-T
● IEEE 802.3u 100BASE-TX
● IEEE 802.3ab 1000BASE-T
● IEEE 802.3z 1000BASE-X
● RMON I and II standards
● SNMP v1, v2c, and v3
●IEEE 802.3af and IEEE 802.3at

System software / license
System software IOS IP Base (Upgradable)
EnergyWise license ENERGY-MGMT, ENERGY-MGT-100-K9
Software license

C3850-48-S-E: IP Base to IP Services RTU paper license

L-C3850-48-S-E: IP Base to IP Services RTU electronic license

Access Point Licenses ●L-LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (e-delivery)
●L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)
●LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (paper license)
●LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license)
features

● RPS Support ● IP service-level agreements (SLAs) ● Advanced IP unicast routing protocols ● Jumbo Frames

● VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ● 802.3ad LACP and PAgP ● PVST/PVST+ ● 802.1W/802.1S

●Port Fast/Uplink Fast ●Dynamic Trunking Protocol (DTP) ● port CoS Trust and Override ● Trusted Boundary

● ACL Classification ●ingress Policing ● Auto QoS ● Per VLAN policies ● 802.1p queues ● Scheduling ● Priority

Queuing ● Configure CoS Priority Queues ●Configure CoS Priority Queues ● Configure Queue Weights ● Configure

Buffers and Thresholds ●Class & Policy Maps ● Modify CoS and DSCP Mapping ● Weighted Tail Drop ● IGMPv1,v2,v3

and MLDv1, v2 ● DHCP server ● DSCP transparency ● HSRP, VRRP, BLGP ● RIPv1, v2 EIGRP, PIM OSPF, OSPFv3,EIGRPv6, BGPv4, IS-ISv4 ● VRF-lite ● PIM-SM/DM, PIM sparse-dense mode, SSM ● Flexible Netflow

Advanced Network security ● Port security ● DHCP snooping ●Dynamic ARP inspection (DAI) ● IP source guard ●The Unicast Reverse Path Forwarding (uRPF)
● Bidirectional data support on a SPAN ● User authentication
● Private VLAN ●Router and VLAN ACLs ● complete identity and security
● Multidomain authentication ● MAC address notification
● IGMP filtering ● Cisco security VLAN ACL
● Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3)
● Port-based ACLs ● TrustSec SXP ● IEEE 802.1ae
● TACACS+ and RADIUS authentication ● Cisco standard and extended IP security router ACLs
● Bridge protocol data unit (BPDU) Guard
● Spanning Tree Root Guard (STRG) ● Wireless end-to-end security
Technical Support and Services ● Cisco SMARTnet Service ● Cisco Smart Foundation Service ● Cisco SP Base Service ● Cisco Focused Technical Support Services
Environmental Ranges
With AC power supply Operating environment and altitude
Operating temperature up to 5000 ft (1500 m) 23ºF to 113ºF (-5ºC to +45ºC)
Operating temperature up to 10,000 ft (3000 m) 23ºF to 104ºF (-5ºC to +40ºC)
Short-term exception at sealevel with single fan failure 23ºF to 113ºF (-5ºC to +45ºC)
Short-term exception up to 5000 feet (1500 m) 23ºF to 122ºF (-5ºC to 50ºC)
Short-term exception up to 10,000 feet (3000 m) 23ºF to 113ºF (-5ºC to 45ºC)
With DC power supply Operating environment and altitude (NEBS)
Operating temperature up to 6000 ft (1800 m) 23ºF to 113ºF (-5ºC to +45ºC)
Operating temperature up to 10,000 ft (3000 m) 23ºF to 104ºF (-5ºC to +40ºC)
Operating temperature up to 13,000 ft (4000m) 23ºF to 95ºF (-5ºC to 35ºC)
Short-term exception up to 6,000 feet (1800 m) 23ºF to 131ºF (-5ºC to +55ºC)
Short-term exception up to 10,000 feet (3000 m) 23ºF to 122ºF (-5ºC to +50ºC)
Short-term exception up to 13,000 feet (4000 m) 23ºF to 113ºF (-5ºC to +45ºC)
Short-term exception at sealevel with single fan failure 23ºF to 113ºF (-5ºC to +45º)
Storage environment -40ºF to 160ºF (-40ºC to 70ºC)
Operating altitude Up to 13,000 Feet (Up to 4000 Meters)
Storage altitude Up to 15,000 Feet (Up to 4573 Meters)
Operating relative humidity 10% to 95% noncondensing
Storage relative humidity 10% to 95% noncondensing



Cisco Switch WS-C3850-48F-S Layer 3 - 48 * 10/100/1000 Ethernet POE+ Ports IP Base 0



FAQ




1. Where do your products come from?
All of our products are from Cisco/Huawei distribution , Cisco/Huawei partner directly. We are Cisco partner at local, with cisco verified certification.


2. If all equioments I can buy service from local cisco ?
For all equipments you can buy service from local, because our goods are smart net free, all with clean serial number.


3. How to ship the goods?
Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.


4. What’s your payment term?
We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.
