Product Details:
|
| Part Number: | WS-C3850-24XU-S | Brand: | CISCO |
|---|---|---|---|
| Ports: | 24 100M/1G/2.5G/5G/10G UPoE Ports | Enclosure Type: | 1 RU |
| Performance: | 92 Gbps | RAM: | 4GB |
| High Light: | optical ethernet switch,fiber optic network switch |
||

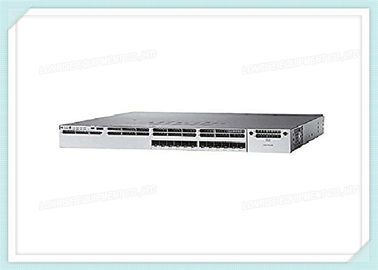

WS-C3850-24XU-S Overview
Cisco WS-C3850-24XU-S provides stackable 24 100M/1G/2.5G/5G/10G UPoE ports, 1 network module slot, and 1100 W AC power supply. Cisco Catalyst 3850 Series provides capabilities that ideally suited to support the convergence of wired and wireless access. The new Cisco Unified Access Data™ Plane (UADP) Application-Specific Integrated Circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility, and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise®-480 technology.
WS-C3850-24XU-S Specification |
|
| Description | Stackable 24 100M/1G/2.5G/5G/10G UPoE ports, 1 network module slot, 1100 W AC power supply 1RU |
| Ports | Stackable 24 100M/1G/2.5G/5G/10G UPoE ports |
| Performance | Switching capacity: 92 Gbps ¦ Stacking bandwidth: 480 Gbps |
| Dimensions & Weight |
Width: 17.5 in Depth: 19.2 in Height: 1.8 in Weight: 17.64 lbs |
| Environmental Parameters |
Min Operating Temperature: 23 °F Max Operating Temperature: 113 °F Humidity Range Operating: 10 - 95% (non-condensing) Min Storage Temperature: -40 °F Max Storage Temperature: 158 °F |
| PoE Power | 60W |
| RAM | 4 GB |
| Flash Memory | 2 GB |
| Miscellaneous |
MTBF: 203,150 hours Compliant Standards: AS/NZS 3548 Class A, AS/NZS CISPR 22, BSMI Class A, CAN/CSA C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, CNS 13438, EN 300386, EN 55022 Class A, EN 60950-1, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-1, EN50082-1, EN55024, FCC CFR47 Part 15, FCC Part 15 A, ICES-003 Class A, IEC 60950-1, IEC 60950-1 Second Edition, KCC, KN22 Class A, KN24, NOM, RoHS 5/6, UL 60950-1, UL 60950-1 Second Edition, VCCI Class A |
| Software | Cisco IOS IP Base |
| Power |
Power Device: Internal power supply Installed Qty: 1 (installed) / 2 (max) Power Redundancy: Optional Power Redundancy Scheme: 1+1 (with optional power supply) Power Provided: 1100 Watt Voltage Required: AC 120/230 V (50/60 Hz) Features: Rear-to-front airflow |
FAQ
1. Where do your products come from?
All of our products are from Cisco/Huawei distribution , Cisco/Huawei partner directly. We are Cisco partner at local, with cisco verified certification.
2. If all equioments I can buy service from local cisco ?
For all equipments you can buy service from local, because our goods are smart net free, all with clean serial number.
3. How to ship the goods?
Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.
4. What’s your payment term?
We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.
