WS-C3850-12X48U-S Cisco Catalyst Switch 1 Network Module Slot , 1100 W Power Supply

WS-C3850-12X48U-S Cisco Catalyst Switch 1 Network Module Slot , 1100 W Power Supply
WS-C3850-12X48U-S Cisco Catalyst Switch 1 Network Module Slot , 1100 W Power Supply WS-C3850-12X48U-S Cisco Catalyst Switch 1 Network Module Slot , 1100 W Power Supply

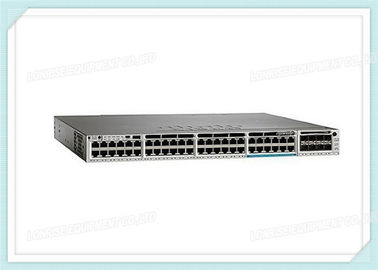

Large Image :  WS-C3850-12X48U-S Cisco Catalyst Switch 1 Network Module Slot , 1100 W Power Supply

Product Details:
Place of Origin: CHINA
Brand Name: CISCO
Certification: CE
Model Number: WS-C3850-12X48U-S
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: Negotiable
Packaging Details: NEW IN BOX
Delivery Time: 1-2 DAYS
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50 UNITS/MONTH

WS-C3850-12X48U-S Cisco Catalyst Switch 1 Network Module Slot , 1100 W Power Supply

Description
Part Number: WS-C3850-12X48U-S Brand: CISCO
Software: Cisco IOS IP Base PoE Power: 60W
Ports: 48 Port (12 MGig+36 Gig) UPoE Flash Memory: 2 GB
High Light:

poe ethernet switch

,

fiber optic network switch





WS-C3850-12X48U-S Cisco Catalyst Switch 1 network module slot, 1100 W power supply





WS-C3850-12X48U-S Overview





Cisco WS-C3850-12X48U-S provides Stackable 12 100M/1G/2.5G/5G/10G and 36 1 G UPoE ports, 1 network module slot, and 1100 W power supply. Cisco Catalyst 3850 Series provides capabilities that ideally suited to support the convergence of wired and wireless access. The new Cisco Unified Access Data™ Plane (UADP) Application-Specific Integrated Circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility, and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise®-480 technology.







WS-C3850-12X48U-S Specification



WS-C3850-12X48U-S Specification

Ports Stackable 12 100M/1G/2.5G/5G/10G and 36 1 G UPoE ports
Performance Switching capacity: 176 Gbps ¦ Stacking bandwidth: 480 Gbps
Dimensions & Weight

Width: 17.5 in

Depth: 19.2 in

Height: 1.8 in

Weight: 17.64 lbs

Environmental Parameters

Min Operating Temperature: 23 °F

Max Operating Temperature: 113 °F

Humidity Range Operating: 10 - 95% (non-condensing)

Min Storage Temperature: -40 °F

Max Storage Temperature: 158 °F

PoE Power 60W
RAM 4 GB
Flash Memory 2 GB
Miscellaneous

MTBF: 202,030 hours

Compliant Standards: CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition,

EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, GOST,

ICES-003 Class A, IEC 60950-1 Second Edition, KCC, KN22 Class A, KN24, NOM, RoHS,

UL 60950-1 Second Edition, VCCI Class A

Software Cisco IOS IP Base
Power

Power Device: Internal power supply

Installed Qty: 1 (installed) / 2 (max)

Power Redundancy: Optional

Power Redundancy Scheme: 1+1 (with optional power supply)

Power Provided: 1100 Watt

Voltage Required: AC 120/230 V (50/60 Hz)

Features: Rear-to-front airflow



FAQ




1. Where do your products come from?
All of our products are from Cisco/Huawei distribution , Cisco/Huawei partner directly. We are Cisco partner at local, with cisco verified certification.


2. If all equioments I can buy service from local cisco ?
For all equipments you can buy service from local, because our goods are smart net free, all with clean serial number.


3. How to ship the goods?
Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.


4. What’s your payment term?
We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.
