WS-C3850-12S-E Cisco Catalyst 3850 Switch Layer 3 IP Service Wireless Controller Managed

WS-C3850-12S-E Cisco Catalyst 3850 Switch Layer 3 IP Service Wireless Controller  Managed
WS-C3850-12S-E Cisco Catalyst 3850 Switch Layer 3 IP Service Wireless Controller  Managed WS-C3850-12S-E Cisco Catalyst 3850 Switch Layer 3 IP Service Wireless Controller  Managed

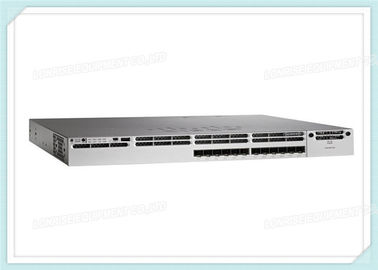

Large Image :  WS-C3850-12S-E Cisco Catalyst 3850 Switch Layer 3 IP Service Wireless Controller Managed

Product Details:
Place of Origin: CHINA
Brand Name: CISCO
Certification: CE
Model Number: WS-C3850-12S-E
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: Negotiable
Packaging Details: NEW IN BOX
Delivery Time: 1-2 DAYS
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50 UNITS/MONTH

WS-C3850-12S-E Cisco Catalyst 3850 Switch Layer 3 IP Service Wireless Controller Managed

Description
Part Number: WS-C3850-12S-E Brand: CISCO
Enclosure Type: Rack-mountable - 1U Ports: 12 X SFP Ports
Switch Type: Fiber Optic Switch Stack Bandwidth: 480Gbps
High Light:

optical ethernet switch

,

fiber optic network switch





WS-C3850-12S-E Cisco Catalyst 3850 Switch Layer 3 IP Service Wireless Controller Managed





WS-C3850-12S-E Overview



Cisco next generation Catalyst WS-C3850-12S-E is stackable enterprise level switch and integrated with 12 SFP ports in IP service feature set. It enables sophisticated layer2-4 switching capability by providing the optimal solution for access layer and aggregation layer.









WS-C3850-12S-E Specification



WS-C3850-12S-E Specification

model info: WS-C3850-12S-E
enclosure type Rack-mountable - 1U
Ports 12 x SFP ports
Network management Interface ● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling
● Management console port: RJ-45-to-DB9 cable for PC connections
Available PoE Power None
Switching Capacity 68Gbps
Maximum stacking number 9
Stack Bandwidth 480Gbps
Forwarding Performance 68.4Mpps
FNF entries 48,000 flows
Maximum VLANs IDs 1,000
MAC Address Table Size 32K
CPU Multicore CPU
RAM 4 G
Flash Memory 2 G
Wireless
Number of AP per switch/stack 100
Number of wireless clients per switch/stack 2000
Total number of WLANs per switch 64
Wireless bandwidth per switch up to 20Gbps
Supported Aironet AP series 3600, 3500, 2600, 1600, 1260, 1140, 1040
Expansion / Connectivity
Console ports USB (Type-B), Ethernet (RJ-45)
Expansion Slot(s) 1 network module slot and 1 power redundant slot
Network Modules Selection ● C3850-NM-4-1G: 4 x 1G uplinks network module
●C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module
Stacking cable ●STACK-T1-50CM StackWise stacking cable with a 0.5 m length
●STACK-T1-1M StackWise stacking cable with a 1.0 m length
●STACK-T1-3M StackWise stacking cable with a 3.0 m length
Stack Power Cable (recommended) ●CAB-SPWR-30CM stack power cable with a 30CM length
●CAB-SPWR-150CM stack power cable with a 150CM length
Power supply PWR-C1-350WAC
Power Device Power supply - redundant - plug-in module
Power Redundancy optional
Voltage range (Auto) 100V-240V
Power Consumption of standalone(in Watts) 109.75 (Max)
Miscellaneous
Width 17.5 Inches (44.5 cm)
Depth 17.7 Inches (45.0 cm)
Height 1.75 Inches (4.45 cm)
Weight 15.48 Pounds (7.02 Kg)
Rack Mounting Kit optional
MTBF in hours 315,840
Compliant Standards

● IEEE 802.1D Spanning Tree Protoco
● IEEE 802.1p CoS Prioritization
● IEEE 802.1Q VLAN
● IEEE 802.1s
● IEEE 802.1w
● IEEE 802.1X
● IEEE 802.1X-Rev
●IEEE 802.11
● IEEE 802.1ab (LLDP)
● IEEE 802.3ad
● IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports

● IEEE 802.3 10BASE-T
● IEEE 802.3u 100BASE-TX
● IEEE 802.3ab 1000BASE-T
● IEEE 802.3z 1000BASE-X
● RMON I and II standards
● SNMP v1, v2c, and v3

System software / license
System software IOS IP Service
EnergyWise license ENERGY-MGMT, ENERGY-MGT-100-K9
Access Point Licenses ●L-LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (e-delivery)
●L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery)
●LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (paper license)
●LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license)
features

●RPS Support ● Jumbo Frames ● VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ● 802.3ad LACP and PAgP

● PVST/PVST+ ● 802.1W/802.1S ●Port Fast/Uplink Fast ●Dynamic Trunking Protocol (DTP) ● port CoS Trust

and Override ● Trusted Boundary ● ACL Classification ●ingress Policing ● Auto QoS ● Per VLAN policies

● 802.1p queues ● Scheduling ● Priority Queuing ● Configure CoS Priority Queues ●Configure CoS Priority

Queues ● Configure Queue Weights ● Configure Buffers and Thresholds ●Class & Policy Maps ● Modify CoS

and DSCP Mapping ● Weighted Tail Drop ● IGMPv1,v2,v3 and MLDv1, v2 ● DHCP server ● DSCP transparency

● HSRP, VRRP, BLGP ● RIPv1, v2 EIGRP, PIM OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4 ● VRF-lite ● PIM-SM/DM,

PIM sparse-dense mode, SSM ● Flexible Netflow

Advanced Network security ● Port security ● DHCP snooping ●Dynamic ARP inspection (DAI) ● IP source guard ●The Unicast Reverse Path Forwarding (uRPF)
● Bidirectional data support on a SPAN ● User authentication
● Private VLAN ●Router and VLAN ACLs ● complete identity and security
● Multidomain authentication ● MAC address notification
● IGMP filtering ● Cisco security VLAN ACL
● Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3)
● Port-based ACLs ● TrustSec SXP ● IEEE 802.1ae
● TACACS+ and RADIUS authentication ● Cisco standard and extended IP security router ACLs
● Bridge protocol data unit (BPDU) Guard
● Spanning Tree Root Guard (STRG) ● Wireless end-to-end security
Technical Support and Services ● Cisco SMARTnet Service ● Cisco Smart Foundation Service ● Cisco SP Base Service ● Cisco Focused Technical Support Services




FAQ




1. Where do your products come from?
All of our products are from Cisco/Huawei distribution , Cisco/Huawei partner directly. We are Cisco partner at local, with cisco verified certification.


2. If all equioments I can buy service from local cisco ?
For all equipments you can buy service from local, because our goods are smart net free, all with clean serial number.


3. How to ship the goods?
Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.


4. What’s your payment term?
We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.
