Product Details:
|
| Part Number: | WS-C3750G-48TS-E | Brand: | CISCO |
|---|---|---|---|
| Enclosure Type: | 1U | Product Type: | Managed, Stackable 48 Ports L3 Switch |
| Form Factor: | Fixed, Rack Mountable 1U, Stackable/Clustering | MAC Address Table Size: | 12K Entries |
| High Light: | optical ethernet switch,poe ethernet switch |
||

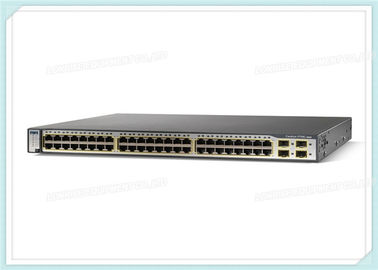

Cisco Catalyst 3750G-48TS is an innovative switch that improves LAN operating efficiency by combining industry-leading ease of use and the highest resiliency available for stackable switches. This product series represents the next generation in desktop switches, and features Cisco StackWise technology, a 32-Gbps stack interconnect that allows customers to build a unified, highly resilient switching system one switch at a time
• 48 Ethernet 10/100/1000 ports
• 4 SFP-based Gigabit Ethernet ports
• 32-Gbps, high-speed stacking bus
• Innovative stacking technology
• 1 RU stackable, multilayer switch
• Enterprise-class intelligent services delivered to the network edge
• IP Services software feature set (IPS)
• Provides full IPv6 dynamic routing
| WS-C3750G-48TS-E data sheet | |
|---|---|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | WS-C3750G-48TS-E |
| Product Type | Managed, Stackable 48 ports L3 Switch |
| Form Factor | Fixed, Rack Mountable 1U, Stackable/Clustering |
| Switch Port density - Uplinks | 48 x 10/100/1000 Ethernet Ports + 4 x SFP |
| MAC Address Table Size | 12K entries |
| Max Number of Stacks | 9 |
| Routing Protocol | OSPF, IGRP, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, PIM-SM, static IP routing, PIM-DM, EIGRP for IPv6, OSPF for IPv6, policy-based routing (PBR), RIPng |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Flow control, full duplex capability, Layer 3 switching, auto-sensing per device, IP-routing, DHCP support, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, stackable, IPv6 support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s |
| DRAM Memory | 128 MB |
| Flash Memory | 32 MB Flash |
| LED Status Lights Indicators | Port status, link activity, port transmission speed, port duplex mode, status |
| Connectivity / Expansion Slots | |
| Interfaces | 48 x 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x console - RJ-45 - management Network stack device : 4 x SFP (mini-GBIC) |
| Power Supply Specifications | |
| Power Device | Power supply - internal |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Power Consumption Operational | 160 Watt |
| Features | Redundant Power System (RPS) connector |
| Dimensions / Weight / Miscellaneous | |
| Width | 44.5 cm |
| Depth | 40.9 cm |
| Height | 4.4 cm |
| Weight | 6.4 kg |
| MTBF | 165,243 hour(s) |
| Compliant Standards | CE, FCC Class A certified, TUV GS, BSMI CNS 13438 Class A, CISPR 24, cUL, EN 60950, EN55022, NOM, VCCI Class A ITE, IEC 60950, EN55024, UL 60950 Third Edition, CISPR 22, CSA 22.2 No. 60950, CB, FCC Part 15, MIC, AS/NZS 3548 |
| System Software | |
| Software Included | Cisco IOS IP Services |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Service & Support Details | Limited warranty - lifetime |
FAQ
1. Where do your products come from?
All of our products are from Cisco/Huawei distribution , Cisco/Huawei partner directly. We are Cisco partner at local, with cisco verified certification.
2. If all equioments I can buy service from local cisco ?
For all equipments you can buy service from local, because our goods are smart net free, all with clean serial number.
3. How to ship the goods?
Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.
4. What’s your payment term?
We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.
