Product Details:
|
| Part Number: | WS-C2960X-48FPS-L | Brand: | CISCO |
|---|---|---|---|
| Feature Set: | LAN Base | Uplink Interfaces: | 4 X 1G SFP |
| Ports: | 48 X 10/100/1000 Ethernet Gigabit Ports | Stack Bandwidth: | 80G |
| Switching Bandwidth: | 216Gbps | Ximum Stacking Number: | 8 |
| High Light: | optical ethernet switch,fiber optic network switch |
||

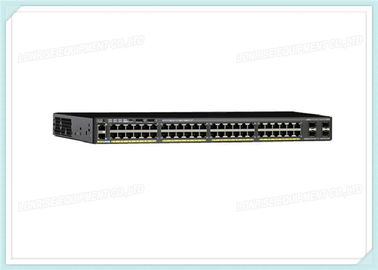

Cisco Catalyst 2960X series 48 ports LAN Base stackable switch delivers Power over Ethernet Plus(PoE+) that supports up to 740W of PoE budget for 24 ports with 30W per port or 48 ports with 15.4W per port.
WS-C2960X-48FPS-L Specification |
|
| Enclosure type | Rack-mountable - 1U |
| Ports | 48 x 10/100/1000 + 4 x 1G SFP |
| Network management Interface | 10/100 Mbps Ethernet (RJ-45) |
| Available PoE Power | 740W |
| Forwarding bandwidth(Gbps) | 108Gbps |
| Maximum stacking number | 8 |
| Stack Bandwidth | 80 G |
| Forwarding Performance | 107.1Mpps |
| Switching bandwidth | 216Gbps |
| Maximum active VLANs | 1023 |
| MAC Address Table Size | 16K (default) |
| CPU | APM86392 600MHz dual core |
| RAM | 256 MB |
| Flash Memory | 64 MB |
| Status Indicators | Per-port status: Link integrity, disabled, activity, speed, and full duplex System status: System, RPS, Stack link status, link duplex, PoE, and link speed |
| Expansion / Connectivity | |
| Console ports | USB (Type-B), Ethernet (RJ-45) |
| Stacking cable | Optional |
| Power Redundancy | Option (PWR-RPS2300) |
| Voltage range (Auto) | 110V-240V |
| Power Consumption Operational | 0.89KVA |
| Miscellaneous | |
| Width | 17.5 Inches (44.5 cm) |
| Depth | 14.5 Inches (36.8 cm) |
| Height | 1.75 Inches (4.5 cm) |
| Weight | 12.9 lb (5.8 Kg) |
| Package Weight | 23.48 lb (10.65 Kg) |
| Rack Mounting Kit | optional |
| MTBF in hours | 232,610 |
| Compliant Standards |
● IEEE 802.1D Spanning Tree Protocol |
| System software / license | |
| System software | IOS LAN BASE |
| license | NERGY-MGT-100-K9, EW-DO-100-DE |
| features |
●Jumbo Frames |
| Environmental Ranges | |
| Operating temperature up to 5000 ft (1500 m) |
23ºF to 113ºF |
| Operating temperature up to 10,000 ft (3000 m) |
23ºF to 104ºF |
| Short-term exception at sea level* |
23ºF to 131ºF |
| Short-term exception up to 5000 feet (1500 m)* |
23ºF to 122ºF |
| Short-term exception up to 10,000 feet (3000 m)* |
23ºF to 113ºF |
| Short-term exception up to 13,000 feet (4000 m)* |
23º to 104ºF |
| Storage temperature up to 15,000 feet (4573 m) |
-13º to 158ºF |
| Operating altitude |
Up to 10,000 Feet |
| Storage altitude |
Up to 13,000 |
| Operating relative humidity | 10% to 95% noncondensing |
| Storage relative humidity | 10% to 95% noncondensing |
FAQ
1. Where do your products come from?
All of our products are from Cisco/Huawei distribution , Cisco/Huawei partner directly. We are Cisco partner at local, with cisco verified certification.
2. If all equioments I can buy service from local cisco ?
For all equipments you can buy service from local, because our goods are smart net free, all with clean serial number.
3. How to ship the goods?
Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.
4. What’s your payment term?
We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.
