Product Details:
|

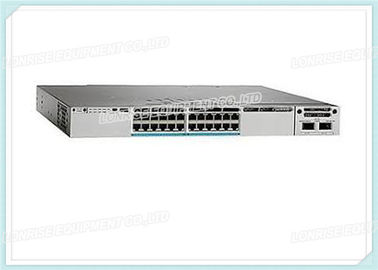

| Product Name: | Ethernet Network Switch | Product Model: | WS-C3850-24XU-S |
|---|---|---|---|
| Ports: | 24x10/100/1000 (UPOE) | Advanced Switching: | Layer 3 |
| Warranty: | 2 Years | Lead Time: | Within 2 - 3 Days After Received Payment |
| High Light: | optical ethernet switch,fiber optic network switch |
||
| Device Type | Switch - 24 ports - L3 - Managed - stackable |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24x 10/100/1000 (UPOE) |
| Power Over Ethernet (PoE) | UPOE |
| Performance | Switching capacity: 82Gbps ¦ Forwarding performance: 62Mpps |
| Features | ARP support, trunking, VLAN support, IGMP snooping, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service |
| General | |
| Authentication Method | Kerberos, RADIUS, Secure Shell (SSH), TACACS+ |
| Compliant Standards | IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Device Type | Switch - 24ports - L3 - Managed - stackable |
| Enclosure Type | Desktop, rack-mountable 1U |
| Routing Protocol | EIGRP, RIP-1, RIP-2, RIPng |
| Flash Memory | 2 GB |
| Mac Address Table Size | 32000 entries |
| Performance | Switching capacity: 82Gbps ¦ Forwarding performance: 62Mpps |
| Ram | 4 GB |
| Remote Management Protocol | CLI, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet |
| Status Indicators | Active PoE, Port duplex mode, Port transmission speed, Status, System |
| Dimensions & Weight | |
| Depth | 44.8 cm |
| Height | 4.4 cm |
| Weight | 7.21 kg |
| Width | 44.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Max Operating Temperature | 113 °F |
| Max Storage Temperature | 115 °F |
| Min Operating Temperature | 23 °F |
| Min Storage Temperature | -40 °F |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x Stacking Module |
| Interfaces | 24x 1000Base-T - RJ-45 UPoE ¦ 1 x USB - Type A ¦ 1 x serial (console) - RJ-45 - management ¦ 1 x management (Gigabit LAN) - RJ-45 - management ¦ 1 x management (mini-USB) - Type B - management ¦ |
| Manufacturer Warranty | |
| Service Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - phone consulting - 1Year |
| Miscellaneous | |
| Compliant Standards | BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, FCC Part 15 A, GOST, ICES-003 Class A, IEC 60950-1 Second Edition, ISO 7779, KCC, NOM, RoHS, UL 60950-1 Second Edition, VCCI Class A |
| Mtbf | 203,150 hours |
| Rack Mounting Kit | Included |
