Product Details:
|
| Brand: | Cisco | Model: | WS-C3850-48XS-S |
|---|---|---|---|
| Ports: | 48 X 1 Gigabit / 10 Gigabit SFP+ | Subtype: | 10 Gigabit Ethernet |
| Uplink Ports: | 4x40 Gigabit QSFP+ (uplink) | Subcategory: | Network Hubs And Switches |
| High Light: | optical ethernet switch,poe ethernet switch |
||

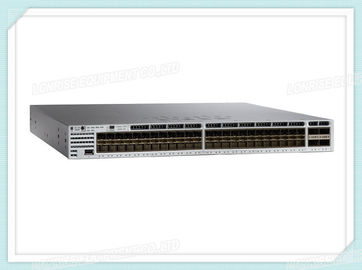

Cisco Switch WS-C3850-48XS-S Catalyst 3850 48 Port 10G Fiber Switch IP Base
| Device Type | Switch - 48 ports - L3 - Managed - stackable |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 48 x 1 Gigabit / 10 Gigabit SFP+ + 4 x 40 Gigabit QSFP+ (uplink) |
| Performance | Switching capacity: 1280 Gbps ¦ Stacking bandwidth: 480 Gbps |
| Capacity | IPv4 routes: 24000 ¦ NetFlow entries: 96000 ¦ Virtual interfaces (VLANs): 4000 ¦ Switched virtual interfaces (SVIs): 1000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MLDv2, MLD |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI |
| Features |
DHCP support, ARP support, Syslog support, PIM snooping, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), SSH support, Virtual Route Forwarding-Lite (VRF-Lite), front to back airflow, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Virtual Routing and Forwarding (VRF), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, radio resource management (RRM), ARP inspection, Weighted Tail Drop (WTD), VLAN Trunking Protocol (VTP), Bridge protocol data unit (BPDU), Control plane protection (CoPP) |
| Compliant Standards | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 44.5 cm x 51.1 cm x 4.45 cm |
| Weight | 7.45 kg |
.
