2 NIM Slots Industrial Network Router ISR4331/K9 Cisco Modular Router 42 Typical Power

2 NIM Slots Industrial Network Router ISR4331/K9 Cisco Modular Router 42 Typical Power
2 NIM Slots Industrial Network Router ISR4331/K9 Cisco Modular Router 42 Typical Power 2 NIM Slots Industrial Network Router ISR4331/K9 Cisco Modular Router 42 Typical Power 2 NIM Slots Industrial Network Router ISR4331/K9 Cisco Modular Router 42 Typical Power

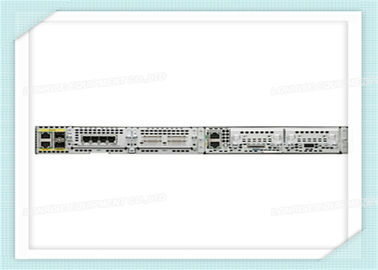

Large Image :  2 NIM Slots Industrial Network Router ISR4331/K9 Cisco Modular Router 42 Typical Power

Product Details:
Place of Origin: CHINA
Brand Name: CISCO
Certification: CE FCC ISO
Model Number: ISR4331
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: Negotiable
Packaging Details: NEW IN BOX
Delivery Time: 1-2 DYAS
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 50 UNITS/MONTH

2 NIM Slots Industrial Network Router ISR4331/K9 Cisco Modular Router 42 Typical Power

Description
Brand: CISCO Model: ISR4331/K9
Memory: 4 GB (default) / 16 GB (maximum) Lash Memory: 4 GB (default) / 16 GB (maximum)
Rack Height: 1 RU Aggregate Throughput: 100 Mbps To 300 Mbps
High Light:

cisco network router

,

cisco modular router



Cisco 4300 Series Router ISR4331/K9 Industrial Network Rack Mountable Router







CISCO ISR4331/K9 Overview



Cisco 4331 Integrated Services Router delivers 100 Mbps to 300 Mbps aggregate throughput and offers one Enhanced service-module (SM-X) slot, which supports for both single- and double-wide service modules provides flexibility in deployment options.





ISR4331/K9 Specification



Cisco ISR4331/K9 Specification

Aggregate Throughput 100 Mbps to 300 Mbps
Total onboard WAN or LAN 10/100/1000 ports 3
RJ-45-based ports 2
SFP-based ports 2
Enhanced service-module slots 1
Doublewide service-module slots 0
NIM slots 2
OIR (all I/O modules) Yes
Onboard ISC slot 1

Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM

(Combined control/services/data planes)

4 GB
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) 16 GB
Default memory DDR3 ECC DRAM (data plane) NA
Maximum memory DDR3 ECC DRAM (data plane) NA
Default memory DDR3 ECC DRAM (control/services plane) NA
Maximum memory DDR3 ECC DRAM (control/services plane) NA
Default flash memory 4 GB
Maximum flash memory 16 GB
External USB 2.0 slots (type A) 1
USB console port -type B mini (up to 115.2 kbps) 1
Serial console port - RJ45 (up to 115.2 kbps) 1

Serial auxiliary port - RJ45

(up to 115.2 kbps)

1
Power-supply options Internal: AC and PoE
Redundant power supply N/A
AC input voltage 100 to 240 VAC autoranging
AC input frequency 47 to 63 Hz
AC input current range, AC power supply (maximum) 3 to 1.3A
AC input surge current 60 A peak and less than 5 Arms per half cycle
Typical power (no modules) (watts) 42
Maximum power with AC power supply (watts) 250
Maximum power with PoE power supply (platform only) (watts) 530
Maximum endpoint PoE power available from PoE power supply (watts) 250





2 NIM Slots Industrial Network Router ISR4331/K9 Cisco Modular Router 42 Typical Power 0







FAQ



1. Where do your products come from?

All of our products are from Cisco/Huawei distribution , Cisco/Huawei partner directly. We are Cisco partner at local, with cisco verified certification.



2. If all equioments I can buy service from local cisco ?

For all equipments you can buy service from local, because our goods are smart net free, all with clean serial number.



3. How to ship the goods?

Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.



4. What’s your payment term?

We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.
