Product Details:
|
| Brand: | Cisco | PN: | WS-C2960S-48FPS-L |
|---|---|---|---|
| Ports: | 48 × Ethernet 10/100/1000 PoE+ Ports | Forwarding Bandwidth: | 77.4 Mbps |
| RAM: | 128 MB | Flash Memory: | 64 MB |
| High Light: | optical ethernet switch,poe ethernet switch |
||

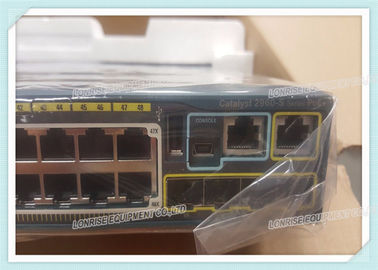

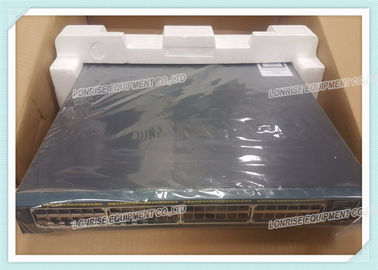

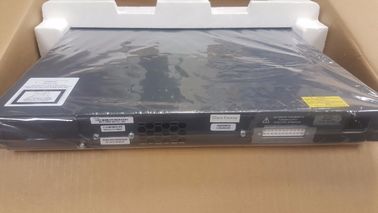

Cisco WS-C2960S-48FPS-L 48 Port Gigabit PoE Ethernet Switch
Overview
The WS-C2960S-48FPS-L is different from the WS-C2960S-48LPS-L in the PoE capabilities, because Cisco WS-C2960S-48FPS with Full PoE function can offer 740W PoE Power total with 24 ports up to 30W per switch ports or 48 ports up to 15.4W per switch port. But Cisco Catalyst Switch 2960S-48FPS-L and 2960S-48LPS-L share a similar datasheet with 4 One Gigabit Ethernet SFP uplink ports and optional Cisco FlexStack stacking supporting 20 Gbps of throughput. Both are Catalyst 2960-S models with LAN Base Software.
Specifications:
WS-C2960S-48FPS-L Specifications |
|
| General Information | |
| Manufacturer | Cisco |
| Product ID: | WS-C2960S-48FPS-L |
| Product Description: | Cisco CAT2960S Stack 48 Gige-POE 740W 4 x SFP LAN |
| Product Type: | Ethernet Switch |
| Marketing Information | |
| The Cisco Catalyst WS-C2960S-48FPS-L Ethernet Switch is the leading Layer 2 edge, providing improved ease of use, highly secure business operations, improved sustainability, and a borderless network experience. It include new Cisco FlexStack switch stacking capability with 1 and 10 Gigabit connectivity, and Power over Ethernet Plus (PoE+) with the Cisco Catalyst 2960 Switch offering fast Ethernet access connectivity and PoE capabilities. It is fixed-configuration access switch designed for enterprise, midmarket, and branch office networks to provide lower total cost of ownership. | |
| Interfaces/Ports | |
| Number of Ports: | 48 |
| Gigabit Ethernet Port: | Yes |
| Interfaces/Ports: | 48 x RJ-45 10/100/1000Base-T PoE LAN |
| Media & Performance | |
| Forwarding/Filtering Rate: | 77.4 Mpps |
| Switching Throughput: | 176 Gbps |
| I/O Expansions | |
| Number of Expansion Slots: | 5 |
| Expansion Slots: | (4 Total) SFP (mini-GBIC) Uplink |
| (1 Total) Stacking Module | |
| Network & Communication | |
| Layer Support: | 2 |
| Management & Protocols | |
| Manageable: | Yes |
| Management: |
DHCP QoS VLAN SNMP v1, v2, v3 Syslog CLI RMON CiscoWorks LAN Management Solution |
| Memory | |
| Standard Memory: | 128MB |
| Memory Technology: | DRAM |
| Flash Memory: | 64MB |
| Software | |
| Operating System: | Cisco IOS |
| Power Description | |
| Power Over Ethernet: | Yes |
| Power Source: | Power Supply |
| Redundant Power Supply: | Yes |
| Physical Characteristics | |
| Compatible Rack Unit: | 1U |
| Form Factor: | Rack-mountable |
| Stackable | |
| Dimensions: | 1.75" Height x 17.50" Width x 15.20" Depth |
| Weight (Approximate): | 13 lb |
