Product Details:
|
| Brand: | CISCO | Model: | WS-C3850-24T-S |
|---|---|---|---|
| Number Of LAN Ports: | 24 | Max. Transmitting Rate: | 10/100/1000Mbps |
| Condition: | NEW IN BOX | ||
| High Light: | optical ethernet switch,fiber optic network switch |
||

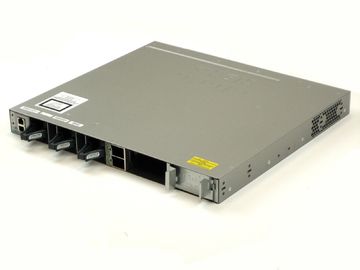

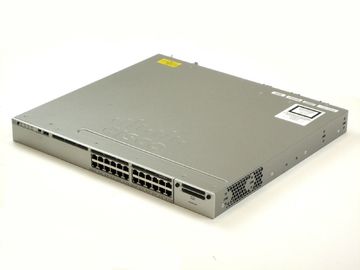

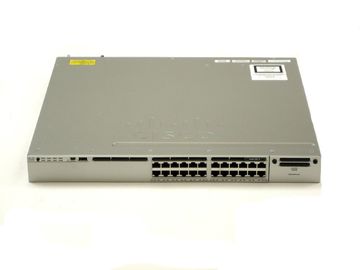

CISCO WS-C3850-24T-S New Cisco Catalyst 3850 24 Port Data IP Base
Condition: 100% Cisco Original, and Brand New
Warranty: Two years
Lead Time: Within 2-3 days after payment confirmed
Shipping: DHL,FedEx,TNT,UPS,EMS, ship to worldwide
Payment Terms: T/T,Western Union
Description:
3850 Series is the next generation of enterprise-class stackable access-layer switches that provide full convergence between wired and wireless on a single platform. Cisco's new Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), modular and field-replaceable network modules, redundant fans and power supplies.
| Device Type | Switch - 24 ports - L3 - Managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 |
| Performance | Switching capacity: 88 Gbps Stacking bandwidth: 480 Gbps |
| Capacity | IPv4 routes: 24000 NetFlow entries: 24000 Switched virtual interfaces (SVIs): 1000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | RIP-1, RIP-2, EIGRP, RIPng |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, SSH, CLI |
| Features | Auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Energy Efficient Ethernet, Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 44.5 cm x 45 cm x 4.45 cm |
| Weight | 7.2 kg |
