Product Details:
|
| Condition: | NIB And Used | Branch: | Cisco |
|---|---|---|---|
| Type: | Router Modules | PN: | HWIC-16A |
| Details: | 4 Port HWIC Serial High-Speed WAN Interface Card | Application: | Routers |
| Specificaiton: | 16-Port Asynchronous High-Speed WAN | ||
| High Light: | cisco router switch module,cisco network module |
||
HWIC-16A 2960 Stack Module 16-Port Asynchronous High-Speed WAN
Cisco HWIC-16A TBasic Parameters:
| General Information | |
| Manufacturer: | Cisco |
| Product ID: | HWIC-16A |
| Product Description: | 16-Port Async HWIC |
| Product Type: | HWIC |
| Marketing Information | |
| The HWIC-16A provides 16 ports of async interfaces operating at speeds up to 230.4 Kbps. 16-Port Asynchronous High-Speed WAN Interface Card use two high-density 8-port connectors. | |
| Technical Information | |
| Application/Usage: | Wide Area Network |
| Interfaces/Ports | |
| Interfaces/Ports: | 16 x Asynchronous Serial WAN |
| Media & Performance | |
| Connectors: | High-density 8-port connector |
| Data Transfer Rate: | 230.40 Kbps Maximum Asynchronous Serial Per Port |
| Management & Protocols | |
| Protocols: | X.25, TCP/IP, SDLC |
| Environmental Conditions | |
| Temperature: |
32°F (0°C) to 104°F (40°C) Operating -4°F (-20°C) to 149°F (65°C) Storage |
| Humidity: | 10% to 90% Non-condensing Relative Humidity |
| Physical Characteristics | |
| Dimensions: | 0.8" Height x 3.1" Width x 5.6" Depth |
| Miscellaneous | |
| Additional Information: |
· The HWIC-16A uses 8-port cables with a high-density 60-pin connector on the HWIC side, and 8 RJ-45 plugs on the other end · The RJ-45 plugs can connect directly to the console ports of Cisco routers and switches, or to other equipment by using RJ-45 to DB-25 adapters · DCN (Data Communications Network) · Lead Manipulation · Network Clock Synchronization · Systems Network Architecture (SNA) |
| Certifications & Standards: |
Agency Approvals: · UL 1950 (United States) · CSA-C22.2 #950 (Canada) · EN60950 (Europe) · TUV GS (Germany) · IEC 950 (International) Immunity: · EN300386 · EN55024/CISPR24 · EN50082-1 Emissions: · FCC Part 15 Class A · ICES-003 Class A · EN55022 Class A · CISPR22 Class A · AS/NZS 3548 Class A · VCCI Class A · EN 300386 · EN61000-3-3 · EN61000-3-2 |
Others better Models:
| PN | Description | Quantity |
| C3650-STACK-KIT= | Cisco Catalyst 3650 Stack Module Spare | 1 |
| PWR-C1-715WAC/2 | 715W AC Config 1 Secondary Power Supply | 4 |
| PWR-C2-250WAC/2 | #N/A | 1 |
| GLC-SX-MMD | 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM | 20 |
| STACK-T1-1M= | 1M Type 1 Stacking Cable | 1 |
| C3850-NM-4-1G= | Cisco Catalyst 3850 4 x 1GE Network Module | 2 |
| GLC-SX-MMD= | 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM | 10 |
| GLC-SX-MMD | 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM | 10 |

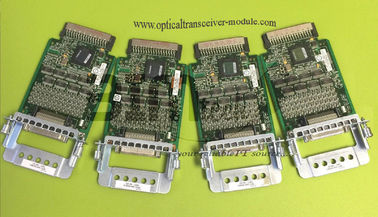

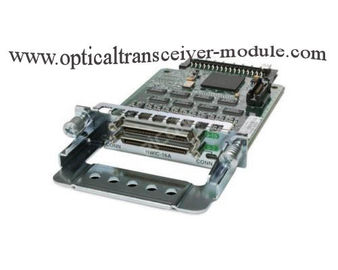

Pictures for reference:
