4 Port Clear Channel T1/E1 HWIC-4T1/E1 Cisco Router High-Speed WAN Interface card

4 Port Clear Channel T1/E1 HWIC-4T1/E1 Cisco Router High-Speed WAN Interface card
4 Port Clear Channel T1/E1 HWIC-4T1/E1 Cisco Router High-Speed WAN Interface card 4 Port Clear Channel T1/E1 HWIC-4T1/E1 Cisco Router High-Speed WAN Interface card 4 Port Clear Channel T1/E1 HWIC-4T1/E1 Cisco Router High-Speed WAN Interface card

Large Image :  4 Port Clear Channel T1/E1 HWIC-4T1/E1 Cisco Router High-Speed WAN Interface card

Product Details:
Place of Origin: China
Brand Name: Cisco
Certification: CE
Model Number: HWIC-4T1/E1
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negonation
Packaging Details: SEALED IN BAG
Delivery Time: 1-2 DAYS
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 1000 PCS/MONTH

4 Port Clear Channel T1/E1 HWIC-4T1/E1 Cisco Router High-Speed WAN Interface card

Description
Device Type: Expansion Module Part Number: HWIC-4T1/E1
Form Factor: Plug-in Module Interfaces/Ports: 4 X RJ-48C T1/E1 WAN
Relevant MIB Support: • RFC1406-MIB • CISCO-ICSUDSU-MIB Data Transfer Rate: 1.54 Mbps T1 2.05 Mbps E1
High Light:

cisco service module

,

cisco network module



4 Port Clear Channel T1/E1 HWIC Cisco Router High-Speed WAN Interface card HWIC-4T1/E1







HWIC-4T1/E1 Overview



The Cisco 4-Port Clear Channel T1/E1 High-Speed WAN Interface Card provides n x T1/E1 connectivity in a compact form factor and reduces deployment and management costs for the Cisco 2800, 3800, 2900 and 3900 Series Integrated Services Routers.



As more data and voice services are enabled in branch offices, the demand for WAN bandwidth increases accordingly. Multilink Point-to-Point Protocol (PPP) and Multilink Frame Relay enable customers to scale their leased lines from single T1/E1 to multiples of T1/E1, adding bandwidth as their needs increase. The Cisco 4-Port Clear Channel T1/E1 High-Speed WAN Interface Card (HWIC) integrates four T1/E1 ports in a singlewide HWIC to facilitate n x T1/E1 connectivity in a compact form factor.
With the Cisco 4-Port Clear Channel T1/E1 HWIC with integrated channel service unit and data service unit (CSU/DSU), you can consolidate customer premises equipment (CPE). The modules support balanced and unbalanced E1 connectivity and conform to G.703 and G.704 standards for unframed and framed E1 modes. The module supports both T1 and E1 modes, selectable by software configuration.

Features At-A-Glance

• 4 ports of RJ-48 connectors

• Cisco IOS Software configurable for T1 or E1 operation

• Integrated CSU/DSU per port

• Balanced or unbalanced E1 termination in the same module

• E1 unframed and framed modes (G.703 and G.704)

• Independent clocking for each port

• Multilink PPP or Multilink Frame Relay (FRF.16) for T1/E1 ports on the same module and across different modules





HWIC-4T1/E1 Specification



Cisco 4 Port Clear Channel T1/E1 High Speed WAN Interface Card(HWIC-4T1/E1)
Manufacturer Cisco
Part Number HWIC-4T1/E1
Device Type Expansion module
Form factor Plug-in module
Interfaces/Ports 4 x RJ-48C T1/E1 WAN
Data Transfer Rate

1.54 Mbps T1

2.05 Mbps E1

Management Features
Management

• Supported by Cisco WAN Access Performance Management System (WAPMS)

• Cisco CNS 2100 Series Intelligence Engine (IE2100)

• CiscoWorks

Diagnostic Loopback Support

• E1 loopback modes

• Controller local loopback

• Interface local loopback

• T1 loopback modes

• Interface local loopback

• Interface remote loopback

• Controller local loopback

• Controller remote loopback

• CSU loopback modes for T1 CSU

• Data terminal equipment (DTE) loopback

• Network loopback

• Payload loopback

Alarm Detection

• Yellow alarm: Receive/send from/to network

• Blue alarm: Receive alarm indication signal (AIS) from network

• Red alarm: Loss of network signal

Relevant MIB Support

• RFC1406-MIB

• CISCO-ICSUDSU-MIB

Signaling Debugging

• ISDN Q.921 and Q.931 decode

• All other previously existing applicable Cisco IOS Software debugs

Dimensions (H x W x D) 0.75 x 3.08 x 4.74 in. (1.91 x 7.82 x 12.04 cm)
Weight 0.20 lb (0.09kg)
Operating Temperature

32 to 104°F (0 to 40°C)

14 to 131F (-10C to 55C when installed in the MWR-2941-DC)

Relative Humidity 5 to 95% noncondensing
Regulatory Compliance and Safety
Telecom Compliance

• United States: FCC Part 68 and TIA-968A

• Canada: Industry Canada CS-03

• European Union: TBR 4, TBR 12, and TBR 13

• Australia: AS/ACIF S038 and AS/ACIF S016

• Japan: JATE Gray Book

• Hong Kong: HKTA 2027 and HKTA 2015

• Taiwan: IS6100

• Singapore: IDA TS ISDN PRA

• Korea: MIC No.2004-15

Telecommunication Interface Industry Standards

• ITU-T G.703

• G.704

• G.706

• G.823

• ANSI T1.403

Safety

• United States: UL60950

• Canada: C22.2 No.60950

• Europe: EN60950

• Australia and New Zealand: AS/NZS3260 and TS001

• Other countries: IEC60950

Network Equipment Building Standards (NEBS)

• GR-63

• GR-78

• GR-1089-CORE Type 1/3

EMC Emissions and Immunity

47 CFR Part 15:

• CISPR22: 2005

• EN300386: V1.3.3 : 2005

• EN55022: 1994 [+ amd 1 & 2]

• EN55022: 1998

• EN61000-3-2: 2000 [Inc amd 1 & 2]

• EN61000-3-3: 1995 [+ amd 1: 2001]

• ICES-003 Issue 4 : 2004

• KN 22: 2005

• VCCI: V-3/2006.04

• CISPR24: 1997 [+ amd 1 & 2]

• EN300386: V1.3.3 : 2005
EN50082-1: 1992

• EN50082-1: 1997

• EN55024: 1998 [+ amd 1 & 2]

• EN61000-6-1: 2001

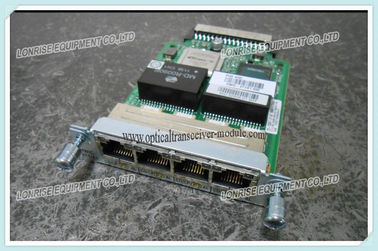

4 Port Clear Channel T1/E1 HWIC-4T1/E1 Cisco Router High-Speed WAN Interface card 0

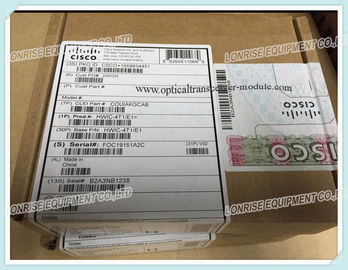

4 Port Clear Channel T1/E1 HWIC-4T1/E1 Cisco Router High-Speed WAN Interface card 1
