Product Details:
|
| Branch: | Cisco | PN: | PVDM3-16 |
|---|---|---|---|
| Type: | Router Modules | Port Structure: | The Modularity |
| Transmission Rate: | DSP Module For Cisco Router | Condition: | New With 1 Year Warranty |
| High Light: | cisco service module,cisco network module |
||
PVDM3-16 Cisco Router Mdules 16-channel high-density voice DSP module
Cisco PVDM3-16 Specification:
The Cisco High-Density Packet Voice Digital Signal Processor Module (PVDM3) enables Cisco 2900 and 3900 Series Integrated Services Routers Generation 2 to provide rich-media capabilities such as high-density voice video connectivity, conferencing, transcoding, transrating, and secure voice in Cisco Unified Communications Solutions.
Part code: PVDM3-16
| PRODUCT DETAILS | |
|---|---|
| Device Type | Voice DSP module |
| Form Factor | Plug-in module |
| RAM | 512 MB |
| Designed For | Cisco 2901, 2911, 2921, 2951, 3925, 3925E, 3945, 3945E |
product details:
| PRODUCT DETAILS | |
|---|---|
| Device Type | Router - voice / fax module |
| Enclosure Type | Rack-mountable - modular - 2U |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Capacity | Cisco Unified SRST sessions : 250 Cisco Unified Communications Manager Express sessions : 150 |
| Network / Transport Protocol | IPSec, L2TPv3 |
| Routing Protocol | OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), IPv4-to-IPv6 Multicast |
| Remote Management Protocol | SNMP, RMON, TR-069 |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824 |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Dimensions (WxDxH) | 43.82 cm x 46.99 cm x 8.89 cm |
| Weight | 13.2 kg |
| Manufacturer Warranty | 1 year warranty |
shows the comparison of PVDM3-16, PVDM3-32, PVDM3-64, PVDM3-128, PVDM3-192 and PVDM3-256.
| Product Code | PVDM3-16 | PVDM3-32 | PVDM3-64 | PVDM3-128 | PVDM3-192 | PVDM3-256 |
| Description | 16-channel high-density voice DSP module | 32-channel high-density voice DSP module | 64-channel high-density voice DSP module | 128-channel high-density voice DSP module | 192-channel high-density voice DSP module | 256-channel high-density voice DSP module |
| Maximum Number of Channels in Low-Complexity Codecs | 16 | 32 | 64 | 128 | 192 | 256 |
| Maximum Number of Channels in Medium-Complexity Codecs | 12 | 21 | 42 | 96 | 138 | 192 |
| Maximum Number of Channels in High-Complexity Codecs | 10 | 14 | 28 | 60 | 88 | 120 |
Products Reference:
| PN | Description | GPL |
| PVDM2-16 | 16-Channel Packet Voice/Fax DSP Module | $800 |
| PVDM2-48 | 48-Channel Packet Voice/Fax DSP Module | $2400 |
| PVDM3-32 | 32-channel high-density voice DSP module | $1600 |
| PVDM3-128 | 128-channel high-density voice DSP module | $6400 |
| PVDM3-256 | 256-channel high-density voice DSP module | $9900 |

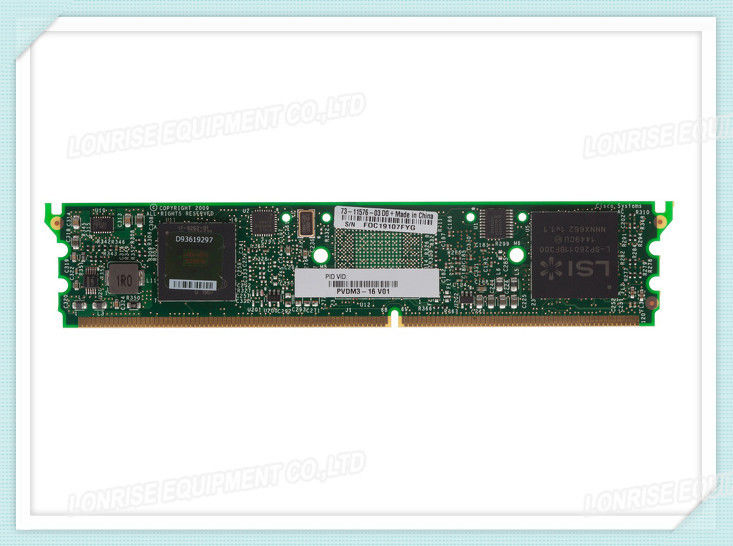

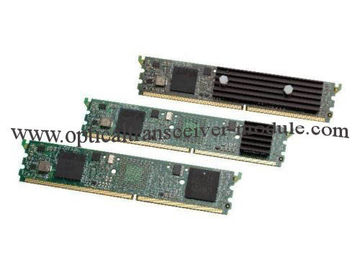

Pictures for reference:
