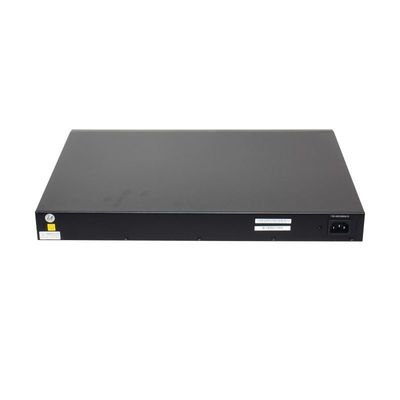

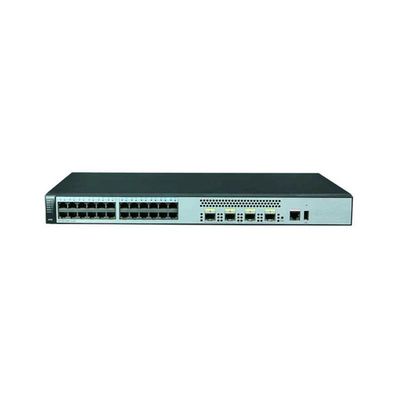

S5720S-28X-PWR-LI-AC Overview:
S5720S-28X-PWR-LI-AC - Huawei S5700 Series Switches.S5720S-28X-PWR-LI-AC(24 Ethernet 10/100/1000 ports,4 10 Gig SFP+,PoE+,370W POE AC 110/220V)
Quick Specs
Table 1 shows the Quick Specs.
| Memory (RAM) |
512 MB |
| Flash |
240 MB |
| Mean time between failures (MTBF) |
41 years |
| Mean time to repair (MTTR) |
2 hours |
| Availability |
> 0.99999 |
| Service port surge protection |
Common mode: ±7 kV |
| Power supply surge protection |
±6 kV in differential mode, ±6 kV in common mode |
| Dimensions (W x D x H) |
442.0 mm x 310.0 mm x 43.6 mm (17.4 in. x 12.2 in. x 1.72 in.) |
| Weight (including packaging materials) |
4.5 kg (9.92 lb) |
| Stack ports |
Twenty-four 10/100/1000BASE-T ports and four 10G SFP+ ports |
| RTC |
Not supported |
| RPS |
Not supported |
| PoE |
Supported |
| Rated voltage range |
100 V AC to 240 V AC, 50/60 Hz |
| Maximum voltage range |
90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Maximum power consumption (100% throughput, full speed of fans) |
- Without PoE: 42.7 W
- 100% PoE loads: 448.5 W (system power consumption: 78.9 W, PoE: 369.6 W)
|
|
Typical power consumption (30% of traffic load)
- Tested according to ATIS standard
- EEE enabled
- No PoE power consumption
|
29.5 W |
| Storage temperature |
-40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) |
less than 49.1 dBA |
| Relative humidity |
5% to 95%, noncondensing |
| Operating altitude |
0-5000 m (0-16404 ft.) |
S5720S-28X-PWR-LI-AC Specification
S5720S-28X-PWR-LI-AC Specification
|
| Memory (RAM) |
512 MB |
| Flash |
240 MB |
| Mean time between failures (MTBF) |
41 years |
| Mean time to repair (MTTR) |
2 hours |
| Availability |
> 0.99999 |
| Service port surge protection |
Common mode: ±7 kV |
| Power supply surge protection |
±6 kV in differential mode, ±6 kV in common mode |
| Dimensions (W x D x H) |
442.0 mm x 310.0 mm x 43.6 mm (17.4 in. x 12.2 in. x 1.72 in.) |
| Weight (including packaging materials) |
4.5 kg (9.92 lb) |
| Stack ports |
Twenty-four 10/100/1000BASE-T ports and four 10G SFP+ ports |
| RTC |
Not supported |
| RPS |
Not supported |
| PoE |
Supported |
| Rated voltage range |
100 V AC to 240 V AC, 50/60 Hz |
| Maximum voltage range |
90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Maximum power consumption (100% throughput, full speed of fans) |
- Without PoE: 42.7 W
- 100% PoE loads: 448.5 W (system power consumption: 78.9 W, PoE: 369.6 W)
|
|
Typical power consumption (30% of traffic load)
- Tested according to ATIS standard
- EEE enabled
- No PoE power consumption
|
29.5 W |
| Storage temperature |
-40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) |
less than 49.1 dBA |
| Relative humidity |
5% to 95%, noncondensing |
| Operating altitude |
0-5000 m (0-16404 ft.) |
S5735-L24P4S-A Overview
Establish Fast and Easy-to-use Network by Powerful Switches.
Choose top branded switches to accelerate your business, including Cisco, Huawei, Juniper, etc.
S5735-L24P4S-A is the Huawei S5735-L switch with 24 x 10/100/1000Base-T ports, 4 x GE SFP ports, PoE+. Huawei CloudEngine S5735-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.
Quick Spec
Table 1 shows the quick spec.
| Product Model |
S5735-L24P4S-A |
| Forwarding Performance |
42 Mpps |
| Switching Capacity2 |
56 Gbit/s/336 Gbit/s |
| Fixed Ports |
24 x 10/100/1000Base-T ports, 4 x GE SFP ports |
| PoE+ |
Supported |
Product Details
Figure 1 shows the front ports of S5735-L24P4S-A.
Note:
| ① |
24 10/100/1000BASE-T ports |
④ |
One PNP button |
| ② |
Four 1000BASE-X ports |
⑤ |
One USB port |
| ③ |
One ETH management port |
⑥ |
One console port |
Figure 2 shows the back view of S5735-L24P4S-A.
Note:
| ① |
Ground screw |
| ② |
Jack for AC power cable locking strap |
| ③ |
AC socket |
Supported Transceivers
Table 2 shows the recommended models.
| Model |
Description |
| OMXD30000 |
Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| OSX010000 |
Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
| SFP-GE-LX-SM1310 |
Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| OSXD22N00 |
Optical Transceiver, SFP+, 10G, Multi-mode Module (1310nm, 0.22km, LC, LRM) |
| SFP-10G-USR |
10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| OMXD30009 |
Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10 |
| SFP-10G-LR |
Huawei Optical Transceiver SFP-10G-LR, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
Compare to Similar Items
Table 3 shows the comparison.
| Product Model |
S5735-L12T4S-A
S5735-L12P4S-A
|
S5735-L24T4S-A
S5735-L24P4S-A
|
S5735-L24T4X-A
S5735-L24P4X-A
|
S5735-L48T4S-A |
S5735-L48T4X-A
S5735-L48P4X-A
|
S5735-L32ST4X-A |
| Forwarding Performance |
24 Mpps |
42 Mpps |
96 Mpps |
78 Mpps |
132 Mpps |
108 Mpps |
| Switching Capacity2 |
32 Gbit/s/336 Gbit/s |
56 Gbit/s/336 Gbit/s |
128 Gbit/s/336 Gbit/s |
104 Gbit/s/432 Gbit/s |
176 Gbit/s/432 Gbit/s |
144 Gbit/s/432 Gbit/s |
| Fixed Ports |
12 x 10/100/1000Base-T ports, 4 x GE SFP ports |
24 x 10/100/1000Base-T ports, 4 x GE SFP ports |
24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports |
48 x 10/100/1000BASE-T ports, 4 x GE SFP ports |
48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
| PoE+ |
CloudEngine S5735-L12P4S-A: Supported
CloudEngine S5735-L24P4S-A: Supported
CloudEngine S5735-L24P4X-A: Supported
CloudEngine S5735-L48P4X-A: Supported
Other: Not supported |
Get More Information
Do you have any question about the S5735-L24P4S-A?
Contact us now via Live Chat or sales@router-switch.com.
we also have Alibaba shop: you can click it . https://shuaiqicn.en.alibaba.com/?spm=a2700.7756200.0.0.fea571d2uK6of4
S5735-L24P4S-A Specification
S5735-L24P4S-A Specification
|
| Forwarding Performance |
42 Mpps |
| Switching Capacity2 |
56 Gbit/s/336 Gbit/s |
| Fixed Ports |
24 x 10/100/1000Base-T ports, 4 x GE SFP ports |
| PoE+ |
Supported |
| MAC Features |
MAC address auto-learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
Interface-based MAC address learning limiting |
| VLAN Features |
4094 VLANs
Guest VLAN, Voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN mapping |
| IP Routing |
Static route, RIP, RIPng, OSPF, OSPFv3 |
| Super Virtual Fabric (SVF) |
Plug-and-play SVF clients
Automatic software package and patch loading to SVF clients
One-click and automatic delivery of service configurations
Independent SVF client operations |
| Interoperability |
VBST (compatible with PVST/PVST+/RPVST)
LNP (similar to DTP) |
