S5735-L24P4X-A1 Overview

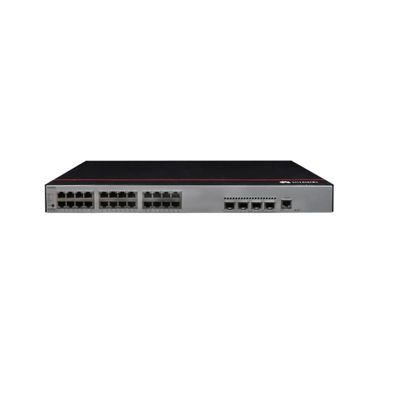

S5735S-L24P4X-A1 (24 10/100/1000BASE-T Ethernet ports, 4 10 Gigabit SFP+, PoE+, AC power supply)
is the Huawei S5735-L switch with 24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports, PoE+. Huawei CloudEngine S5735-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.
Quick Spec
Table 1 shows the quick spec.
| Product Model |
S5735-L24P4X-A1 |
| Forwarding Performance |
96 Mpps |
| Switching Capacity2 |
128 Gbit/s/336 Gbit/s |
| Fixed Ports |
24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports |
| PoE+ |
Supported |
Supported Transceivers
Table 2 shows the recommended models.
| Model |
Description |
| OMXD30000 |
Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| OSX010000 |
Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
| SFP-GE-LX-SM1310 |
Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| OSXD22N00 |
Optical Transceiver, SFP+, 10G, Multi-mode Module (1310nm, 0.22km, LC, LRM) |
| SFP-10G-USR |
10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| OMXD30009 |
Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10 |
| SFP-10G-LR |
Huawei Optical Transceiver SFP-10G-LR, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
Compare to Similar Items
Table 3 shows the comparison.
| Product Model |
S5735-L12T4S-A
S5735-L12P4S-A
|
S5735-L24T4S-A
S5735-L24P4S-A
|
S5735-L24T4X-A
S5735-L24P4X-A
|
S5735-L48T4S-A |
S5735-L48T4X-A
S5735-L48P4X-A
|
S5735-L32ST4X-A |
| Forwarding Performance |
24 Mpps |
42 Mpps |
96 Mpps |
78 Mpps |
132 Mpps |
108 Mpps |
| Switching Capacity2 |
32 Gbit/s/336 Gbit/s |
56 Gbit/s/336 Gbit/s |
128 Gbit/s/336 Gbit/s |
104 Gbit/s/432 Gbit/s |
176 Gbit/s/432 Gbit/s |
144 Gbit/s/432 Gbit/s |
| Fixed Ports |
12 x 10/100/1000Base-T ports, 4 x GE SFP ports |
24 x 10/100/1000Base-T ports, 4 x GE SFP ports |
24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports |
48 x 10/100/1000BASE-T ports, 4 x GE SFP ports |
48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
| PoE+ |
CloudEngine S5735-L12P4S-A: Supported
CloudEngine S5735-L24P4S-A: Supported
CloudEngine S5735-L24P4X-A: Supported
CloudEngine S5735-L48P4X-A: Supported
Other: Not supported |
