Huawei 02312VRE 180W DC Power Module PDC180S12-CR

Huawei 02312VRE 180W DC Power Module PDC180S12-CR
Huawei 02312VRE 180W DC Power Module PDC180S12-CR
Huawei 02312VRE 180W DC Power Module PDC180S12-CR Huawei 02312VRE 180W DC Power Module PDC180S12-CR Huawei 02312VRE 180W DC Power Module PDC180S12-CR

Large Image :  Huawei 02312VRE 180W DC Power Module PDC180S12-CR

Product Details:
Place of Origin: china
Brand Name: HUAWEI
Certification: ce
Model Number: PDC180S12-CR
Payment & Shipping Terms:
Minimum Order Quantity: 1

Huawei 02312VRE 180W DC Power Module PDC180S12-CR

Description
Product Model: PDC180S12-CR Power Supply: AC OR DC
AP-AC Networking: Layer 2 Or Layer 3 Networking Forwarding Capability: 40 Gbit/s
Forwarding Modes: Direct Forwarding Or Tunnel Forwarding Codition: New
Warranty: 1 Year Fixed Ports: 24 × 10/100Base-Tx Ports, 24 × 10/100/1000Base-T Ports,4 × GE SFP Ports
High Light:

Huawei Network DC Power Module

,

Tunnel Forwarding Network Power Module

,

180W Huawei Network Switches

PDC180S12-CR (180W DC Power Module):

Overview

Table 5-61 Basic information about the PDC180S12-CR
Item Details
Description 180W DC Power Module
Part Number 02312VRE
Model PDC180S12-CR



Appearance

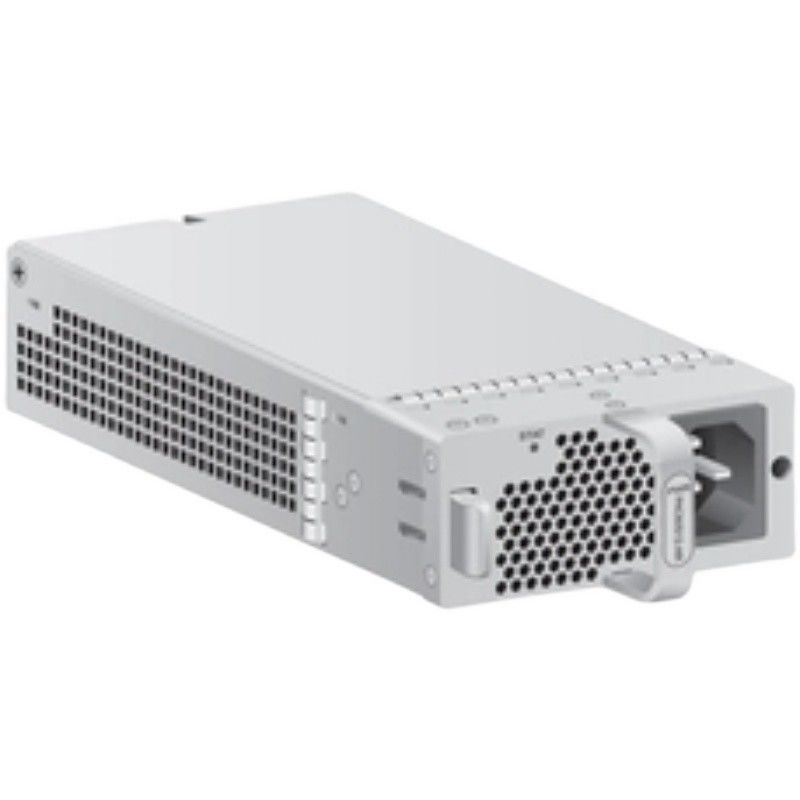

Figure 5-36 Appearance of the PDC180S12-CR







Huawei 02312VRE 180W DC Power Module PDC180S12-CR 0

Panel

Figure 5-37 Panel of the PDC180S12-CR
1. Lock 2. Indicator 3. Air vent 4. Handle
5. DC power socket - - -



Table 5-63 Indicators on the PDC180S12-CR
Silkscreen Name Color Status Description
STAT Running status indicator - Steady off The power input is abnormal (for example, no input, overvoltage, or undervoltage) or the power output is abnormal (for example, undervoltage or overtemperature).
Green Steady on The power module is working normally.
Green Blinking The output power is out of range, for example, overvoltage, overcurrent, or short circuit occurs.

Functions and Features

Table 5-64 Functions of a 180 W DC power module

Function

Description

Input protection Input undervoltage protection In this protection state, the power module stops supplying power. When the input voltage restores to the normal range, the power module automatically resumes power supply.
Input overcurrent protection In this protection state, the power module stops supplying power and cannot automatically resume power supply when the input current restores to the normal range.
Output protection Output overvoltage protection In this protection state, the power module stops supplying power intermittently. When the output voltage restores to the normal range, the power module automatically resumes power supply.
Output overcurrent protection In this protection state, the power module supplies power intermittently. When the output current is within a range, the power module automatically resumes power supply.
Output short-circuit protection In this protection state, the power module supplies power intermittently. When the short circuit is removed, the power module automatically resumes power supply.
Overtemperature protection When the temperature of the power module exceeds a specified threshold, the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply.
Hot swapping Supported

When a power module enters overtemperature protection state, take measures to lower the ambient temperature. The power module can automatically start supplying power again when the temperature falls within the normal range.
