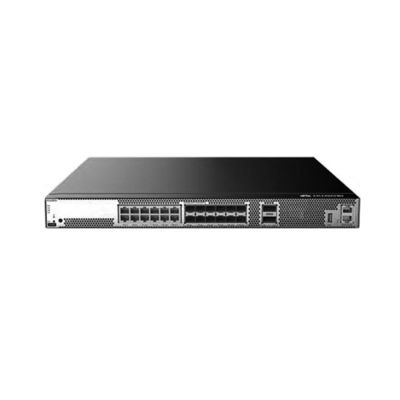

AC6805 Overview:
The Huawei AC6805 is a high-specification wireless access controller (AC) for medium- to large-sized enterprise campuses, enterprise branches, and school campuses. The AC6805 can manage up to 6K access points (APs) and provide up to 40 Gbit/s forwarding performance. It features high scalability and offers users considerable flexibility in configuring the number of managed APs. When used with Huawei's full series 802.11ax, 802.11ac and 802.11n APs, The AC6805 delivers an adaptable solution for medium to large campus networks, enterprise office networks, wireless Metropolitan Area Network (MAN), and hotspot coverage.
Quick Specs
Table 1 shows the Quick Specs.
Product Code |
AC6805 |
Ports
|
12 x GE + 12 x 10 GE + 2 x 40 GE (one 40 GE port is mutually exclusive with four 10 GE ports.) |
Power Supply |
AC or DC |
Forwarding Capability |
40 Gbit/s |
Maximum Number of Managed APs |
6K |
Maximum Number of Access Users |
64K |
AP-AC Networking |
Layer 2 or Layer 3 networking |
Forwarding Modes |
Direct forwarding or tunnel forwarding |
AC Active/Standby Mod |
1+1 HSB or N+1 backup |
Radio Protocols |
802.11 a/b/g/n/ac/ac Wave 2/ax |
Dimensions (H x W x D) |
43.6 mm x 442 mm x 440 mm |
The Huawei AC6805 is a high-specification wireless access controller (AC) for medium- to large-sized enterprise campuses, enterprise branches, and school campuses. The AC6805 can manage up to 6K access points (APs) and provide up to 40 Gbit/s forwarding performance. It features high scalability and offers users considerable flexibility in configuring the number of managed APs. When used with Huawei's full series 802.11ax, 802.11ac and 802.11n APs, The AC6805 delivers an adaptable solution for medium to large campus networks, enterprise office networks, wireless Metropolitan Area Network (MAN), and hotspot coverage.
Quick Specs
Table 1 shows the Quick Specs.
Product Code |
AC6805 |
Ports
|
12 x GE + 12 x 10 GE + 2 x 40 GE (one 40 GE port is mutually exclusive with four 10 GE ports.) |
Power Supply |
AC or DC |
Forwarding Capability |
40 Gbit/s |
Maximum Number of Managed APs |
6K |
Maximum Number of Access Users |
64K |
AP-AC Networking |
Layer 2 or Layer 3 networking |
Forwarding Modes |
Direct forwarding or tunnel forwarding |
AC Active/Standby Mod |
1+1 HSB or N+1 backup |
Radio Protocols |
802.11 a/b/g/n/ac/ac Wave 2/ax |
Dimensions (H x W x D) |
43.6 mm x 442 mm x 440 mm |
Product Details
Huawei AC6805 provides these features:
• Large-capacity and high-performance design
• SmartRadio for air interface optimization
• Various roles
• Flexible networking
• Built-in application identification server
• Comprehensive reliability design
• Built-in visualized network management platform
• Health-centric one-page monitoring, visualized KPIs
• Profile-based configuration by AP group simplifies configuration procedure and improves efficiency.
• One-click diagnosis solves 80% of common network problems
Compare to Similar Items
Table 2 shows the comparison.
Product Code |
AC6507S |
AC6508 |
AC6805 |
Ports |
10 x GE + 2 x 10GE SFP+ |
10 x GE + 2 x 10 GE SFP+ |
12 x GE + 12 x 10 GE + 2 x 40 GE (one 40 GE port is mutually exclusive with four 10 GE ports.) |
Forwarding Capability |
4 Gbit/s |
6 Gbit/s |
40 Gbit/s |
Maximum Number of Managed APs |
128 |
256 |
6K |
Maximum Number of Access Users |
2k |
4K |
64K |
Dimensions (H x W x D) |
43.6mm×210mm×250mm |
43.6 mm x 210 mm x 250 mm |
43.6 mm x 442 mm x 440 mm |
Maximum power consumption |
21W |
21W |
231.7 W |
Get More Information
Do you have any question about the AC6805?
Contact us now via Live Chat or sales@router-switch.com.
Product Details
Huawei AC6805 provides these features:
• Large-capacity and high-performance design
• SmartRadio for air interface optimization
• Various roles
• Flexible networking
• Built-in application identification server
• Comprehensive reliability design
• Built-in visualized network management platform
• Health-centric one-page monitoring, visualized KPIs
• Profile-based configuration by AP group simplifies configuration procedure and improves efficiency.
• One-click diagnosis solves 80% of common network problems
Compare to Similar Items
Table 2 shows the comparison.
Product Code |
AC6507S |
AC6508 |
AC6805 |
Ports |
10 x GE + 2 x 10GE SFP+ |
10 x GE + 2 x 10 GE SFP+ |
12 x GE + 12 x 10 GE + 2 x 40 GE (one 40 GE port is mutually exclusive with four 10 GE ports.) |
Forwarding Capability |
4 Gbit/s |
6 Gbit/s |
40 Gbit/s |
Maximum Number of Managed APs |
128 |
256 |
6K |
Maximum Number of Access Users |
2k |
4K |
64K |
Dimensions (H x W x D) |
43.6mm×210mm×250mm |
43.6 mm x 210 mm x 250 mm |
43.6 mm x 442 mm x 440 mm |
Maximum power consumption |
21W |
21W |
231.7 W |
AC6805 Specification
AC6805 Specification
|
Forwarding Capability |
40 Gbit/s |
Maximum Number of Managed APs |
6K |
Maximum Number of Access Users |
64K |
AP-AC Networking |
Layer 2 or Layer 3 networking |
Forwarding Modes |
Direct forwarding or tunnel forwarding |
AC Active/Standby Modes |
1+1 HSB or N+1 backup |
Radio Protocols |
802.11 a/b/g/n/ac/ac Wave 2/ax |
Dimensions (H x W x D) |
43.6 mm x 442 mm x 440 mm |
Interface type |
2 x 40G (QSFP+) + 12 x 10GE (SFP+) + 12 x GE |
Maximum power consumption |
231.7 W |
Operating temperature and altitude |
-60 m to +1800 m: 0°C to 45°C 1800 m to 5000 m: Temperature decreases by 1°C every time the altitude increases 220 m. |
Relative humidity |
5% RH to 95% RH, non-condensing |
Power module |
AC and DC power modules, supporting hot swapping, and hot backup
NOTE:A maximum of two power modules are supported
|
Number of managed APs |
Central APs:768 Common APs and RUs:6K
NOTE:The RUs managed by the WLAN AC do not occupy the WLAN AC's license resources. However, the total number of managed common APs and RUs cannot exceed the upper limit allowed by the WLAN AC.
|
Number of access users |
64K
NOTE:The maximum number of access users varies depending on the authentication mode.
|
Number of MAC address entries |
100K |
Forwarding capability |
40Gbit/s
NOTE:Packet length: 1024 bytes
|
Number of VLANs |
4K |
Number of routing entries |
IPv4: 16K l
IPv6: 4K
|
Number of ARP entries |
100K |
Number of multicast forwarding entries |
2K |
Number of DHCP IP address pools |
256 IP address pools, each of which contains a maximum of 64K IP addresses |
Number of local accounts |
6.4K |
Number of ACLs |
|
https://shuaiqicn.en.alibaba.com/
S5735-L24P4S-A Overview
Establish Fast and Easy-to-use Network by Powerful Switches.
Choose top branded switches to accelerate your business, including Cisco, Huawei, Juniper, etc.
S5735-L24P4S-A is the Huawei S5735-L switch with 24 x 10/100/1000Base-T ports, 4 x GE SFP ports, PoE+. Huawei CloudEngine S5735-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports. They are designed for enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and powered by Huawei’s Versatile Routing Platform (VRP), CloudEngine S5735-L switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.
Quick Spec
Table 1 shows the quick spec.
Product Model |
S5735-L24P4S-A |
Forwarding Performance |
42 Mpps |
Switching Capacity2 |
56 Gbit/s/336 Gbit/s |
Fixed Ports |
24 x 10/100/1000Base-T ports, 4 x GE SFP ports |
PoE+ |
Supported |
Product Details
Figure 1 shows the front ports of S5735-L24P4S-A.
Note:
① |
24 10/100/1000BASE-T ports |
④ |
One PNP button |
② |
Four 1000BASE-X ports |
⑤ |
One USB port |
③ |
One ETH management port |
⑥ |
One console port |
Figure 2 shows the back view of S5735-L24P4S-A.
Note:
① |
Ground screw |
② |
Jack for AC power cable locking strap |
③ |
AC socket |
Supported Transceivers
Table 2 shows the recommended models.
Model |
Description |
OMXD30000 |
Huawei Optical Transceiver OMXD30000, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
OSX010000 |
Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
SFP-GE-LX-SM1310 |
Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
OSXD22N00 |
Optical Transceiver, SFP+, 10G, Multi-mode Module (1310nm, 0.22km, LC, LRM) |
SFP-10G-USR |
10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
OMXD30009 |
Transceiver, QSFP+, 1310nm, 41.25Gbps, -7dBm, 2.3dBm, -11.5dBm, LC, SMF, 10 |
SFP-10G-LR |
Huawei Optical Transceiver SFP-10G-LR, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
Compare to Similar Items
Table 3 shows the comparison.
Product Model |
S5735-L12T4S-A
S5735-L12P4S-A
|
S5735-L24T4S-A
S5735-L24P4S-A
|
S5735-L24T4X-A
S5735-L24P4X-A
|
S5735-L48T4S-A |
S5735-L48T4X-A
S5735-L48P4X-A
|
S5735-L32ST4X-A |
Forwarding Performance |
24 Mpps |
42 Mpps |
96 Mpps |
78 Mpps |
132 Mpps |
108 Mpps |
Switching Capacity2 |
32 Gbit/s/336 Gbit/s |
56 Gbit/s/336 Gbit/s |
128 Gbit/s/336 Gbit/s |
104 Gbit/s/432 Gbit/s |
176 Gbit/s/432 Gbit/s |
144 Gbit/s/432 Gbit/s |
Fixed Ports |
12 x 10/100/1000Base-T ports, 4 x GE SFP ports |
24 x 10/100/1000Base-T ports, 4 x GE SFP ports |
24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports |
48 x 10/100/1000BASE-T ports, 4 x GE SFP ports |
48 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
24 x GE SFP ports, 8 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports |
PoE+ |
CloudEngine S5735-L12P4S-A: Supported
CloudEngine S5735-L24P4S-A: Supported
CloudEngine S5735-L24P4X-A: Supported
CloudEngine S5735-L48P4X-A: Supported
Other: Not supported |
Get More Information
Do you have any question about the S5735-L24P4S-A?
Contact us now via Live Chat or sales@router-switch.com.
we also have Alibaba shop: you can click it . https://shuaiqicn.en.alibaba.com/?spm=a2700.7756200.0.0.fea571d2uK6of4
S5735-L24P4S-A Specification
S5735-L24P4S-A Specification
|
Forwarding Performance |
42 Mpps |
Switching Capacity2 |
56 Gbit/s/336 Gbit/s |
Fixed Ports |
24 x 10/100/1000Base-T ports, 4 x GE SFP ports |
PoE+ |
Supported |
MAC Features |
MAC address auto-learning and aging
Static, dynamic, and blackhole MAC address entries
Packet filtering based on source MAC addresses
Interface-based MAC address learning limiting |
VLAN Features |
4094 VLANs
Guest VLAN, Voice VLAN
GVRP
MUX VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN mapping |
IP Routing |
Static route, RIP, RIPng, OSPF, OSPFv3 |
Super Virtual Fabric (SVF) |
Plug-and-play SVF clients
Automatic software package and patch loading to SVF clients
One-click and automatic delivery of service configurations
Independent SVF client operations |
Interoperability |
VBST (compatible with PVST/PVST+/RPVST)
LNP (similar to DTP) |
