Product Details:
|
| Brand: | HUAWEI | PART NUMBER: | S5720-36C-EI-DC |
|---|---|---|---|
| Uplink Interfaces: | 2 SFP/ RJ-45 Combo And 2 SFP | CPU:: | ARM V7 800 MHz |
| Flash Memory:: | 256 MB | DRAM:: | 512MB |
| Port:: | 48 10/100 RJ45 Data | TYPE: | Enterprise Switch |
| High Light: | S5720-36C-EI-DC Ethernet Network Switch,256MB Flash Ethernet Network Switch,132Mpps Ethernet Network Switch |
||
Huawei’s S5720-EI Series Gigabit Switches provide resilient, energy-efficient GE ports for access switching in data centers, and aggregation switching in enterprise campus networks. Performance enhancements include advanced processing hardware, 10 Gbit/s uplink ports, and large MAC address and routing tables; Super Virtual Fabric (SVF) support enables intelligent virtualization, iStack clustering, and operation in N + 1 backup mode for simplified O&M and high availability. Mature IPv6 features ensure smooth migration to next-generation IP networking.

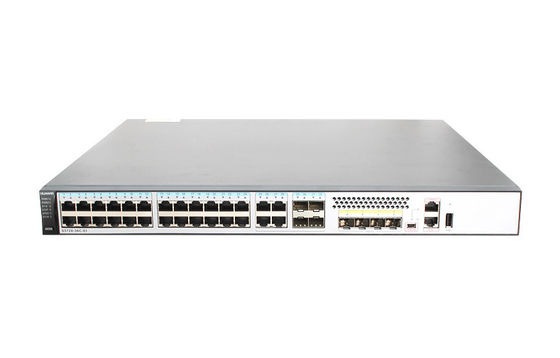

Figure 1 shows the appearance of S5720-36C-EI-DC.
Table 1 shows the Quick Specs.
| Product Code | S5720-36C-EI-DC |
| Extended Slot | One extended slot supporting a service subcard or stack card |
| Switching Capacity | 598 Gbit/s |
| Forwarding Performance | 132 Mpps |
| Fixed Interfaces | 28 x 10/100/1,000 Base-T Ethernet ports, 4 x combo 100/1,000 Base-X SFP ports, and 4 x 10G SFP+ ports |
| Power Supply | Double hot-swappable DC power supplies, one AC/DC power module is configured by default |
| Memory (RAM) | 2 GB |
| Flash | 340 MB |
| Dimensions (W x D x H) | 442.0 mm x 420.0 mm x 44.4 mm (17.4 in. x 16.5 in. x 1.74 in.) |
| Weight |
Empty: ≤ 8 kg (17.64 lb) Fully loaded: ≤ 12 kg (26.46 lb) |
Figure 2 shows the front panel of S5720-36C-EI-DC.
Note:
| ① | Twenty-four 10/100/1000BASE-T ports |
| ② | Four combo ports (10/100/1000BASE-T + 100/1000BASE-X) |
| ③ | ETH management port |
| ④ | One USB port |
| ⑤ | One console port |
| ⑥ | One mini USB port |
| ⑦ | Four 10GE SFP+ ports |
Figure 3 shows the back panel of S5720-36C-EI-DC.
Note:
| ① | Ground screw |
| ② | ESN label |
| ③ | Rear card slot |
| ④ | Fan slot |
| ⑤ | Power module slot 2 |
| ⑥ | Power module slot 1 |
Table 2 shows the recommended elements for the S5720-36C-EI-DC.
| Model | Description |
| FE-SFP Optical Transceiver | |
| SFP-FE-SX-MM1310 | Optical Transceiver, SFP, 100M/155M, Multi-mode Module(1310nm, 2km, LC) |
| eSFP-FE-LX-SM1310 | Optical Transceiver, eSFP, 100M/155M, Single-mode Module(1310nm, 15km, LC) |
| S-SFP-FE-LH40-SM1310 | Optical Transceiver, eSFP, FE, Single-mode Module(1310nm, 40km, LC) |
| GE-SFP Optical Transceiver | |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module(850nm, 0.55km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module(1550nm, 40km, LC) |
| 10G-SFP+ Optical Transceiver | |
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.1km, LC) |
| OMXD30000 | Optical Transceiver, SFP+, 10G, Multi-mode Module(850nm, 0.3km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module(1310nm, 10km, LC) |
| GE Copper Transceiver | |
| SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module(100m, RJ45) |
| 10GE Interface Card | |
| ES5D21X02T01 | 2 10 Gig RJ45 Interface Card(used in S5720EI series) |
| ES5D21X02S01 | 2 10 Gig SFP+ Interface Card(used in S5720EI series) |
| Stack Card | |
|
|
Dedicated stack card with 2*QSFP+ interface(Including one PCS of 1M QSFP+ cable ,Used in S5720EI series) |
Table 3 shows the comparison of S5720-36C-EI-DC and S5720-32X-EI-AC.
| Product Code | S5720-36C-EI-DC | S5720-32X-EI-AC |
| Switching Capacity | 598 Gbit/s | 598 Gbit/s |
| Forwarding Performance | 132 Mpps | 102 Mpps |
| Fixed Interfaces | 28 x 10/100/1,000 Base-T Ethernet ports, 4 x combo 100/1,000 Base-X SFP ports, and 4 x 10G SFP+ ports | 24 x 10/100/1,000 Base-T, 4 x 100/1,000 Base-X SFP, 4 x 10 Gig SFP+ |
| Extended Slot | One extended slot that supports an uplink interface card or private stack card | NA |
| Dimensions (W x D x H) | 442 mm x 420 mm x 44.4 mm | 442 mm x 220 mm x 43.6 mm |
| Front Power Input | No | Yes |
Do you have any question about the S5720-36C-EI-DC?
S5720-36C-EI-DC Specification |
|
| Switching Capacity | 598 Gbit/s |
| Forwarding Performance | 132 Mpps |
| Fixed Ports | 28 x 10/100/1,000 Base-T (4 GE Combo SFP), 4 x 10 Gig SFP+ |
| Extended Slot | One extended slot supporting a service subcard or stack card |
| DRAM and Flash Memory |
SDRAM: 2 GB Flash: 340 MB |
| MAC Address Table | 64k |
| Jumbo Frame | 12K |
| VLAN | 4k |
| IP Routing | Static route, RIPv1, RIPv2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, and routing policy |
| Security |
Hierarchical user management and password protection AAA authentication DHCP relay, DHCP server, DHCP snooping, DHCP security, and SAVI Port isolation, port security, and sticky MAC NAC and user management based on user groups Limit on the number of learned MAC addresses CPU defense Blacklist and whitelist MACSec ready |
| Super Virtual Fabric (SVF) |
Working as an SVF client that is plug-and-play with zero configuration Automatically loading the system software and patching on the client One-click and automatic delivery of service configurations Independent running clients |
| Interoperability |
VBST (Compatible with PVST/PVST+/RPVST) LNP (Similar to DTP) VCMP (Similar to VTP) |
| Front Power Input | NA |
| Energy saving | 802.3az Energy Efficient Ethernet (EEE) supported |
| Typical Power Consumption | 39.5W |
| Input Voltage | Rated voltage range: –48V to –60V Maximum voltage range: –36V to –72V |
| Management and Maintenance | iStack Virtual cable test SNMPv1/v2c/v3 RMON/RMON2 Web-based network management system System logs and multi-level alarms sFlow LLDP/LLDP-MED Secure Copy Protocol (SCP), TFTP, FTP Store dual software images and configuration files 802.3az Energy Efficient Ethernet (EEE) |
| Surge Protection | Surge protection capability of service ports: 6 kV |
| Interoperability | VLAN-based Spanning Tree (working with PVST/PVST+/RPVST) Link-type Negotiation Protocol (LNP), similar to the Dynamic Trunking Protocol (DTP) VLAN Central Management Protocol (VCMP), similar to the VLAN Trunk Protocol (VTP) |
| Operating Environment | Operating temperature: Zero to 1,800m altitude: 0°C to 45°C 1,800m to 5,000m altitude: Operating temperature reduces by 1°C for every altitude increase of 220m. Relative humidity: 5% to 95% (non-condensing) |
| Dimensions (W x D x H) | 442 mm x 420 mm x 44.4 mm |
Shipment
