Product Details:
|
| Description: | C9500-16X-E - Cisco Switch Catalyst 9500 | Brand: | CISCO |
|---|---|---|---|
| PART NUMBER: | C9500-16X-E | Switching Capacity: | Up To 480 Gbps |
| Connectivity Technology: | Wired | Data Link Protocol: | 10 Gigabit Ethernet |
| Condition: | New With 1Year Warranty | Product Family: | Campus Switch & WLAN |
| Product Line: | Enterprise Networking | DRAM: | 16G |
| Flash: | 16G | ||
| High Light: | Catalyst 9500 Ethernet Network Switch,16G Flash Ethernet Managed Switch,480Gbps Switching Ethernet Managed Switch |
||

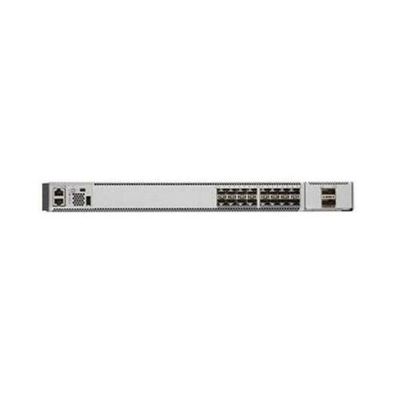

C9500-16X-E is a Cisco Catalyst 9500 16-port 10G switch, NW Ess. License. The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco's lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The Catalyst 9500 Series is the industry's first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.
Table 1 shows the Quick Specs.
| Product Code | C9500-16X-E |
| Description | Cisco Catalyst 9500 16-port 10G switch, NW Ess. License |
| Switching capacity | Up to 480 Gbps |
| Forwarding rate | Up to 360 Mpps |
| DRAM | 16 G |
| Flash | 16 G |
| Dimensions (H x W x D) | 1.73 x 17.5 x 21.52 in |
| Rack units (RU) | 1 RU |

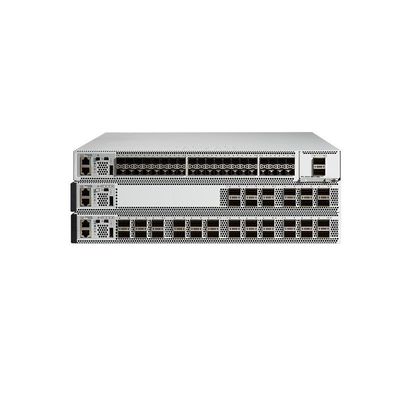

Highlights of Catalyst 9500 1/10-G 16- and 40-port switches: C9500-16X, C9500-48X
· 16 to 40 ports of 1/10 G with rich campus features
· SFP/SFP+, 8 x 1/10 G or 2 x 40 G uplinks
· Secure segmentation with SD-Access
· MPLS Level 2/3 VPNs, MVPN; flexible design templates
· Enhanced Limited Lifetime Warranty (E-LLW)
Table 2 shows the comparison.
| Product Code | C9500-16X-E | C9500-32C-A |
| Description | Cisco Catalyst 9500 16-port 10G switch, NW Ess. License | Cisco Catalyst 9500 Series high performance 32-port 100G switch, NW Adv. License |
| Switching capacity | Up to 480 Gbps | Up to 6.4 Tbps |
| Forwarding rate | Up to 360 Mpps | Up to 2 Bpps |
| DRAM | 16 G | 16 G |
| Flash | 16 G | 16 G |
| Dimensions (H x W x D) | 1.73 x 17.5 x 21.52 in | 1.73 x 17.5 x 21.2 in |
| Rack units (RU) | 1 RU | 1RU |
C9500-16X-E Specification |
|
| Performance specifications | |
| Switching capacity | Up to 480 Gbps |
| Forwarding rate | Up to 360 Mpps |
| Total number of MAC addresses | Up to 64,000 |
| Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) |
Up to 64,000 indirect Up to 80,000 host |
| Total number of IPv6 routes |
Up to 32,000 indirect Up to 40,000 host |
| QoS ACL scale | Up to 18000 |
| Security ACL scale | Up to 18000 |
| FNF entries | Up to 512,000 |
| DRAM | 16 GB |
| Flash | 16 GB |
| VLAN IDs | 4000 |
| Total Switched Virtual Interfaces (SVIs) | 4000 |
| Jumbo frame | 9198 bytes |
| Power supply specifications | |
| Power Supply Selection | PWR-C4-950WAC-R or PWR-C4-950WDC-R |
| Power max rating | 950 W |
| Dimensions, physical specifications, weight, and MTBF | |
| Dimensions (H x W x D) | 1.73 x 17.5 x 21.52 in |
| Rack units (RU) | 1 RU |
| Input voltage | 90 to 264 VAC |
| Operating temperature | 32° to 104°F (0° to 40°C) |
| Storage temperature | -4° to 149°F (-20° to 65°C) |
| Relative humidity operating and nonoperating noncondensing |
Ambient (noncondensing) operating: 5% to 90% Ambient (noncondensing) nonoperating and storage: 5% to 95% |
| Altitude | Operation up to 6000 feet at 55°C and 13,000 feet at 45°C |
| MTBF (hours) | 315,790 |
