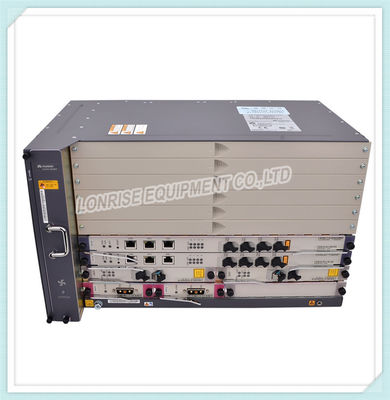

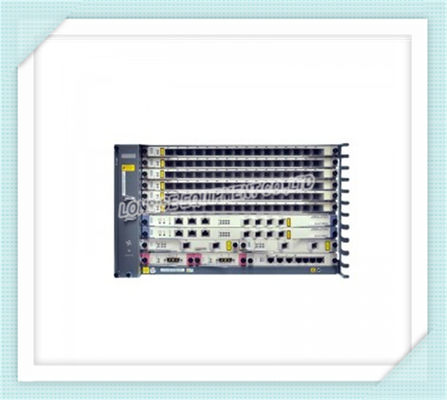

Huawei SmartAX MA5603T Supports 13 Board Slots 1.5Tbit/S GE/10GE Interfaces

Huawei SmartAX MA5603T Supports 13 Board Slots 1.5Tbit/S GE/10GE Interfaces
Huawei SmartAX MA5603T Supports 13 Board Slots 1.5Tbit/S GE/10GE Interfaces
Huawei SmartAX MA5603T Supports 13 Board Slots 1.5Tbit/S GE/10GE Interfaces Huawei SmartAX MA5603T Supports 13 Board Slots 1.5Tbit/S GE/10GE Interfaces Huawei SmartAX MA5603T Supports 13 Board Slots 1.5Tbit/S GE/10GE Interfaces Huawei SmartAX MA5603T Supports 13 Board Slots 1.5Tbit/S GE/10GE Interfaces

Large Image :  Huawei SmartAX MA5603T Supports 13 Board Slots 1.5Tbit/S GE/10GE Interfaces

Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE
Model Number: MA5603T
Payment & Shipping Terms:
Minimum Order Quantity: 1UNIT
Price: negotiation
Packaging Details: plastic package for anti-static
Delivery Time: 2-3days
Payment Terms: Western Union, L/C, T/T, Paypal
Supply Ability: 100

Huawei SmartAX MA5603T Supports 13 Board Slots 1.5Tbit/S GE/10GE Interfaces

Description
Part Number: MA5603T Condition: New With 1 Year Replacement Warranty
Shipment: DHL,UPS,TNT, Website: Www.lonriseeqt.com
Switching Capacity: 1.5Tbit/s (H801MABO) 2Tbit/s (H802MABO) Access Capacity: • 48*10G GPON • 96*GPON • 288*GE
Cabinet: Indoor: N66E-18 Outdoor: F01D500, F01S300 Maximum Uplink Port: • 4*GE • 4*10GE
High Light:

1.5Tbit/S Ethernet Network Interface Card

,

Huawei SmartAX Ethernet Network Interface Card

,

MA5603T Network Interface Card

MA5603T Overview

The MA5603T is the Huawei SmartAX MA5600T model, providing 13 slots. Huawei SmartAX MA5600T is the global first OLT which integrates the functionality of aggregation switch and edge router. It can provide high-density GPON, 10GPON and Ethernet P2P optical access, triple play service, TDM/ATM/Ethernet leased line services for business customers and high precision clock, and high-density GE/10GE interfaces for cascading remote access equipments. MA5600T helps to simplify network architecture, to improve network reliability and lower TCO essentially.

MA5603T Specification

Model MA5603T
(W/D/H) mm 442×283.2×263

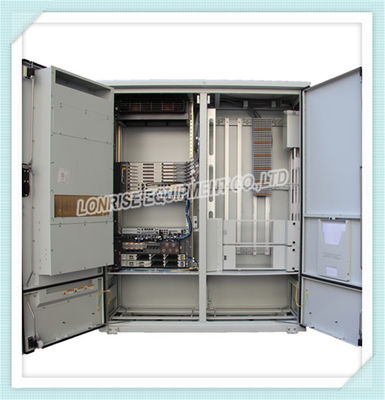

Cabinet Indoor: N66E-18
Outdoor: F01D500, F01S300
Configuration control board: 2
Service board: 6
Universal Interface board: 1
Upstream interface board: 2
Power interface board: 2
MTBF ≈45 years
Switching Capacity of
the Backplane Bus
1.5Tbit/s (H801MABO) 2Tbit/s (H802MABO)
Switching Capacity of
the Control Board
MCUD/MCUD1: 128Gbit/s (Standby
mode), 256Gbit/s (Load-sharing mode)
Access Capacity • 48*10G GPON
• 96*GPON
• 288*GE
Maximum uplink port
(GIU)
• 4*GE
• 4*10GE



Product Details

The Huawei SmartAX 5600T provide these features:

★ Convergence and access integration

• Provides super large convergence switching capacity. Specifically, an MA5600T series device supports 3.2 Tbit/s backplane capacity, 1,920 Gbit/s switching capacity, and 512,000 MAC addresses.

• Provides super high-density cascading capability. Specifcally, an MA5600T series device supports a maximum of 46 x 10GE or 768 GE services, with no additional convergence switches.

★ High reliability

• Provides highly reliable networking capabilities and ensures dual-OLT hot backup, remote disaster tolerance, and service upgrades without interruption.

• Provides comprehensive Quality of Service (QoS) functions and supports traffic classification management, priority control, and bandwidth control. The Hierarchical-Quality of Service (H-QoS) function meets various Service Level Agreement (SLA) requirements of commercial customers.

• Provides an End-to-End (E2E) highly reliable design, enabling Bidirectional Forwarding Detection (BFD), Smart Link, Link Aggregation Control Protocol (LACP) redundancy protection and GPON type B/type C line protection in the upstream direction.

★ Multi-scenario access

• Supports access of multiple E1 private line services, and Native Time-Division Multiplexing (TDM) or Circuit Emulation Services over Packet (CESoP)/ Structure-Agnostic TDM over Packet (SAToP) function.

• Supports the Emulated Local Area Network (ELAN) function and Virtual Local Area Network (VLAN)-based internal traffic exchange, satisfying enterprise and community network application requirements.

• Supports non-convergence access of Internet Protocol television (IPTV) users. One subrack supports 8,000 multicast users and 4,000 multicast channels.

★ Smooth evolution

• Supports GPON, 10G Passive Optical Network (PON), and 40G PON on a platform, enabling smooth evolution and achieving ultra-bandwidth access.

• Supports IPv4/IPv6 dual stacks and IPv6 multicast, enabling smooth evolution from IPv4 to IPv6.

★ Energy saving

• Uses special chips for conserving power. Specifcally, 16 ports on a GPON board consume less than 73 W of power.

• Supports idle board automatic power-off and intelligent fan speed adjustment, effectively lowering idle board power consumption.

Compare to Similar Items

Model MA5600T-ETSI MA5600T-IEC MA5603T MA5608T
Configuration control board: 2
Service board: 16
Universal Interface board: 1
Upstream interface board: 2
Power interface board: 2
control board: 2
Service board: 14
Universal Interface board: 1
Upstream interface board: 2
Power interface board: 2
control board: 2
Service board: 6
Universal Interface board: 1
Upstream interface board: 2
Power interface board: 2
control board: 2
Service board: 2
Power interface board: 1
Switching Capacity of
the Backplane Bus
3.2Tbit/s - 1.5Tbit/s (H801MABO) 2Tbit/s (H802MABO) 720Gbit/s
Access Capacity • 128*10G GPON
• 256*GPON
• 768*GE/FE
• 112*10G GPON
• 224*GPON
• 672*GE/FE
• 48*10G GPON
• 96*GPON
• 288*GE
• 8*10G GPON
• 32*GPON
• 96*GE
Maximum uplink port
(GIU)
• 4*GE
• 4*10GE
• 4*GE
• 4*10GE
• 4*GE
• 4*10GE
-



Supported Boards



Category Model Description
Control Boards H801SCUH Huawei SmartAX MA5600 Super Control Unit Board
H801SCUV Huawei SmartAX MA5600 Super Control Unit Board
H801SCUN Huawei SmartAX MA5600 Super Control Unit Board
H801MCUD Huawei SmartAX MA5600 Control Unit Board (GE Uplink)
H801MCUD1 Huawei SmartAX MA5600 Control Unit Board (GE/10GE Uplink)
H801SCUK Huawei SmartAX MA5600 Super Control Unit Board
Services Boards H806GPBH Huawei SmartAX MA5600 8-port Advanced GPON OLT Interface Board
H807GPBH Huawei SmartAX MA5600 8-port Advanced GPON OLT Interface Board
H801GPMD Huawei SmartAX MA5600 8-port Advanced GPON OLT Interface Board
H805GPFD Huawei SmartAX MA5600 16-port GPON OLT Interface board
H801XGBD Huawei SmartAX MA5600 8-port XG-PON OLT Interface board
H802XGBC Huawei SmartAX MA5600 4-port XG-PON OLT Interface Board
H801SPUF Huawei SmartAX MA5600 Multifunctional Service Process Board
H801ETHB Huawei SmartAX MA5600 Ethernet Service Access Board
Power Boards H801PRTA Huawei SmartAX MA5600 Power Transfer Board
H801PRTE Huawei SmartAX MA5600 Power Transfer Board
H801PRTG Huawei SmartAX MA5600 Power Transfer Board
Fan Boards H831FCBB0 Huawei SmartAX MA5600 MA5608T fan tray
