Huawei OptiX OSN 6800 Intelligent Optical Transport Platform 100 Gbit/S OTU4

Huawei OptiX OSN 6800 Intelligent Optical Transport Platform 100 Gbit/S OTU4
Huawei OptiX OSN 6800 Intelligent Optical Transport Platform 100 Gbit/S OTU4 Huawei OptiX OSN 6800 Intelligent Optical Transport Platform 100 Gbit/S OTU4

Large Image :  Huawei OptiX OSN 6800 Intelligent Optical Transport Platform 100 Gbit/S OTU4

Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE
Model Number: OptiX OSN 6800
Payment & Shipping Terms:
Minimum Order Quantity: 1UNIT
Price: negotiation
Packaging Details: plastic package for anti-static
Delivery Time: 2-3days
Payment Terms: Western Union, L/C, T/T, Paypal
Supply Ability: 100

Huawei OptiX OSN 6800 Intelligent Optical Transport Platform 100 Gbit/S OTU4

Description
Part Number: OptiX OSN 6800 Condition: New With 1 Year Replacement Warranty
Shipment: DHL,UPS,TNT, Website: Www.lonriseeqt.com
Number Of Slots For Service Boards: 17 Max. Rate Per Channel: 100 Gbit/s (OTU4)
Service Types Supported: SDH, SONET, Ethernet, SAN, OTN, Video Line Rate: 2.5 Gbit/s, 10 Gbit/s, 40 Gbit/s, 100 Gbit/s
Supported Pluggable Optical Modules: ESFP, SFP+, XFP, CFP Max. Capacity Per PID Group: 120 Gbit/s
High Light:

OptiX OSN 6800 Optical Transport Platform

,

OTU4 Optical Transport Platform

,

100 Gbit/S Intelligent Optical Transport Platform

Huawei OptiX OSN 6800 Overview

The Huawei OptiX OSN 6800 Intelligent Optical Transport Platform (OptiX OSN 6800 for short) is referred to as Huawei next generation intelligent optical transport platform.

Huawei OptiX OSN 6800 Specification

Huawei OptiX OSN 6800 Specification

Dimensions (mm) 497 (W) x 295 (D) x 400 (H)
Number of slots for service boards 17
Switch Optical 1 to 20-degree ROADM
Electrical

• 180G GE

• 360G 10GE/ODUk(k=1, 2, 2e)

Wavelength (max) DWDM: 80-ch, CWDM: 8-ch

Wavelength range



DWDM: 1529.16 nm to 1560.61 nm (Band-C, ITU-T G.694.1)

CWDM: 1471 nm to 1611 nm (Band S+C+L, ITU-T G.694.2)

Max. rate per channel 100 Gbit/s (OTU4)
Service types supported SDH, SONET, Ethernet, SAN, OTN, Video
Line rate 2.5 Gbit/s, 10 Gbit/s, 40 Gbit/s, 100 Gbit/s
Supported pluggable optical modules eSFP, SFP+, XFP, CFP
Max. capacity per PID group 120 Gbit/s

Topology



Point-to-point, chain, star, ring, ring-with-chain, tangent ring, intersecting ring, me
Redundancy and protection

Network level protection (OTN)





Optical line protection, intra-board 1+1 protection, client 1+1 protection, ODUk SNCP, tributary SNCP, SW SNCP, MS SNCP, ODUk SPRing protection, OWSP, board-Level protection
Network level protection (Ethernet) DBPS, DLAG, ERPS, LAG, LPT, MSTP, STP and RSTP, VLAN SNCP

Equipment level protection



Power redundancy, fan redundancy, cross-connect board redundancy, system control and communication board redundancy
Optical power management ALS, AGC, ALC, APE, IPA, OPA

Synchronization



• Synchronous Ethernet clock

• IEEE 1588v2

• 2 Mbit/s or 2 MHz (with the SSM function), ITU-T G.703-compliant external clock source

•External time source (1PPS+TOD)

ASON Optical-Layer ASON
Nominal working voltage -48 V DC/-60 V DC
Maximum subrack power consumption 1350 W

Operation environment



Subrack temperature:

• Long-term operation: 5°C (41 °F) to 45°C (113 °F)

• Short-term operation: -5°C (23 °F) to 55°C (131 °F)

Relative humidity:

• Long-term operation: 5% to 85%

• Short-term operation: 5% to 95%

Mean time to repair (MTTR) 4 hours
Mean time between failures (MTBF) 51.64 years

Product Details

Huawei OptiX OSN 6800 provides these features and highlights :

• Highest Cross-Connect Capacity with Flexible Large-Capacity Service Grooming

- Features high cross-connect capacity. A single subrack supports a maximum of 360G bit/s cross-connect capacity, implementing large-capacity service grooming. Only one subrack is required for the large-capacity service grooming and therefore lowers power consumption and reduces the floor space.

- Supports multi-granularity OTN cross-connection, that is, ODUk cross-connection, where k can be 1, 2, or 2e.

• Huge Bandwidth Provisioning with Flexible High-Density Architecture

- Supports comprehensive soft decision (SDFEC) and hard decision (HFEC) schemes to address various long-haul transmission requirements.

- Supports hybrid transmission of 10 Gbit/s, 40 Gbit/s, and 100 Gbit/s services, protecting carriers' investments.

- Supports flexible ROADM to provide the optical-layer platform for a beyond 100G system in future.

• Tier 1 Reliability and Mass Data Transmission with Optimal Architecture

- Provides multiple network-level protection schemes and intelligent network management based on automatically switched optical network (ASON)/generalized multiprotocol label switching (GMPLS) technologies to protect all fibers and services.

- Provides protection for power supply devices, fans, communication control boards, and the cross-connection resource pool.

• Low Power Consumption and High Maintainability, Providing the Minimizing OPEX

- Provides environment-friendly OTN solutions using various low-carbon technologies.

- Supports overall network performance monitoring using the user-friendly optical doctor (OD) system embedded in the U2000.

Compare to Similar Items

Product Code Huawei OptiX OSN 3800 Huawei OptiX OSN 6800
Dimensions (mm) 436 (W) x 295 (D) x 134 (H) 497 (W) x 295 (D) x 400 (H)
Number of slots for service boards 4 17
Wavelength (max) DWDM: 80-ch, CWDM: 8-ch DWDM: 80-ch, CWDM: 8-ch
Max. rate per channel 100 Gbit/s (OTU4) 100 Gbit/s (OTU4)
Service types supported SDH, SONET, Ethernet, SAN, OTN, Video SDH, SONET, Ethernet, SAN, OTN, Video
Line rate 2.5 Gbit/s, 10 Gbit/s, 100 Gbit/s 2.5 Gbit/s, 10 Gbit/s, 40 Gbit/s, 100 Gbit/s
Supported pluggable optical modules eSFP, SFP+, XFP, CFP eSFP, SFP+, XFP, CFP
Topology Point-to-point, chain, ring Point-to-point, chain, star, ring, ring-with-chain, tangent ring, intersecting ring, me
Optical power management ALS, AGC, ALC, IPA ALS, AGC, ALC, APE, IPA, OPA
Nominal working voltage -48 V DC/-60 V DC -48 V DC/-60 V DC



View Overview of Huawei Transmission Network Hot Series

  • Huawei OptiX OSN 1800
  • Huawei OptiX OSN 500/550/580
  • Huawei OptiX OSN 8800/6800/3800
  • Huawei OptiX OSN 9800
  • Huawei OptiX OSN 7500/7500 II

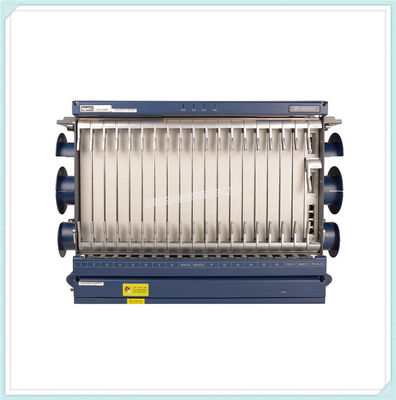

    Huawei OptiX OSN 6800 Intelligent Optical Transport Platform 100 Gbit/S OTU4 0

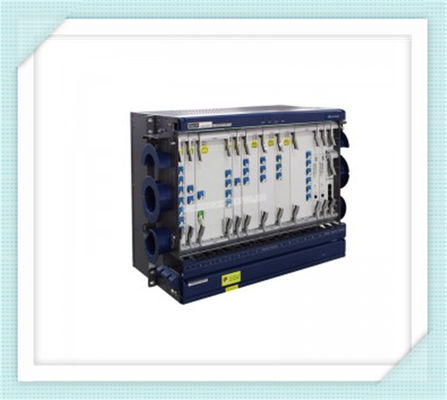

Huawei OptiX OSN 6800 Intelligent Optical Transport Platform 100 Gbit/S OTU4 1
