Huawei SmartAX MA5616 Multi Service Access Module MDU 2 GPON GE Upstream Ports
MA5616 Overview

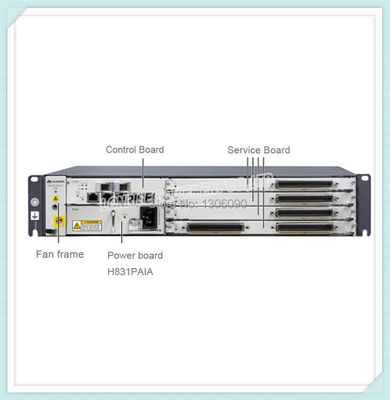

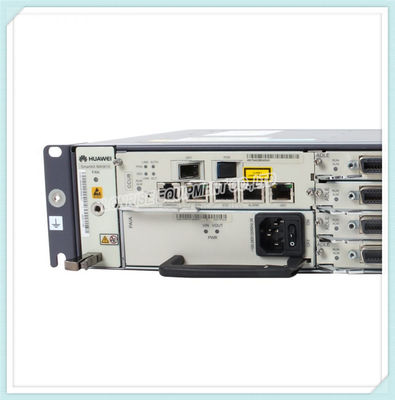

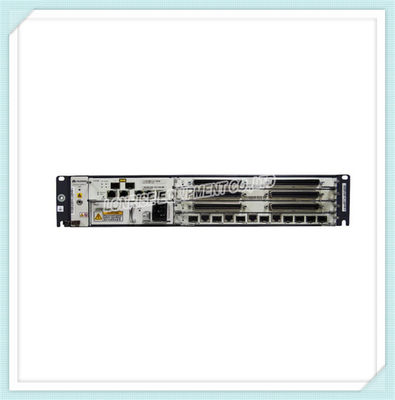

The SmartAX MA5616 Multi-service Access Module (MA5616 for short) is a 2-U high and 19-inch wide board-inserted device. It provides four service slots for flexible board configurations.
The MA5616 applies in fiber to the building (FTTB) and fiber to the curb (FTTC) scenarios. It can also function as a mini-digital subscriber line access multiplexer (DSLAM) or multiservice access node (MSAN). The MA5616 can be installed in corridors or cabinets (indoor or outdoor).
Each MA5616 provides user-to-network interfaces (UNIs), such as ADSL2+, VDSL2, SHDSL, POTS, FE, ISDN, or combo ports, and network-to-network interfaces (NNIs) that support XG-PON, GPON and GE.
MA5616 Specification
MA5616 Specification |
|||
| Device Parameters & Operating Environment | |||
| Dimensions |
88.1 mm x 442 mm x 245 mm (without mounting ears) 88.1 mm x 482.6 mm x 245 mm (with mounting ears) |
||
| Ambient Temperature | -40°C to +65°C | ||
| Ambient Humidity | 5% RH to 95% RH | ||
| Atmospheric Pressure | 70 kPa to 106 kPa | ||
| Altitude | ≤ 4000 m | ||
| Power Parameters | |||
| Power Supply Mode | Operating Voltage | Maximum Input Current | |
| DC power supply | -38.4 V DC to -72 V DC | 14 A | |
| AC power supply | 90 V AC to 264 V AC | 6 A | |
| AC power supply + battery backup | AC power supply: -90 V AC to 264 V AC Batteries: -43.2 V DC to -52 V DC |
AC power supply: 3 A Batteries: 5 A |
|
Huawei MA5616 provide these highlights:
★High-Speed Vectoring
•The MA5616 supports vectoring, which is used to increase VDSL2 line rates. With this technology, users can access the Internet at a higher rate and experience more and better VDSL2 services.
•Crosstalk cancellation in the downstream direction
•Crosstalk cancellation in the upstream direction
★Combo Board Design
•The combo board design reduces wiring space on the main distribution frame (MDF) and improves deployment efficiency, thereby reducing carriers' construction and maintenance costs.
★Comprehensive QoS
•User port-based rate limitation in both downstream and upstream directions
•Traffic shaping for port-level queue groups
•Weighted random early detection (WRED) profile and the binding of a WRED profile to a queue
•Access control list (ACL)-based priority marking
•Mapping downstream or upstream services to different priority queues for scheduling based on priorities
•Three scheduling modes: priority queuing (PQ), weighted round robin (WRR), and PQ+WRR
★High Efficiency Maintenance and Management
•Is plug and play and supports service pre-deployment.
•Supports remote fault locating, troubleshooting, and batch upgrades.
★Carrier-Class Reliability Design
•Complies with carrier-class reliability specifications.
•Passes the electrostatic discharge (ESD) test.
•Provides surge protection and anti-interference functions.
•Protects user ports and power ports.
•Uses an anticorrosion design and fewer lines routed across the surface of a board to achieve a •proper heat dissipation effect (producing a temperature difference to prevent condensation).
★Energy Conservation
•The power-conservation design ensures the lowest power consumption and noises and the optimal heat dissipation, thereby reducing environment pollution and operation costs.
| Model | Description |
| H831CCUE | Multi-Service Centralized Control Unit Board |
| H836ASDF | Analog Subscriber DSP Card |
| H835VDGE | 16-port VDSL2 over POTS Service Board(with 600 ohm Impedance Splitter) |
| H835VDTH | 24-port VDSL2 over ISDN Service Board |
| H83BVCLE | 32-port VDSL2 over POTS Service Board |
| H836VCLE | 32-Channel VDSL2 over POTS Board(with 600 ohm Splitter) |
| H83BVDLE | 32-Channel VDSL2 over POTS Board(with 600 ohm Splitter) |
| H83BVCMM | 48-port VDSL2 Service Board |
| H83DVCMM | 48-port VDSL2 Service Board |
| H83DVCPD | 64-port VDSL2 Service Board |
| H836VCPE | 64-Channel VDSL2 over POTS Board(with 600 ohm Splitter) |
| H83DVCPE | 64-port VDSL2 over POTS Service Board(with 600 ohm Splitter) |
| H835ADLE | 32-Channel ADSL2+ over POTS Board(Low Power Consumption,With Splitter) |
| H83AADLE | 32-channel ADSL2+ over POTS Board(with 600 ohm Splitter and Protecting) |
| H836ADLE | 32-port ADSL2+ over POTS Board(with 600 ohm Splitter) |
| H836ADPE | 64-Channel ADSL2+ over POTS Board(with 600 ohm Splitter) |
| H832SHLH | 16-port SHDSL Service Board |
| H838ASPB | 64port POTS Subscriber Board |
| H839ASPB | 64port POTS Subscriber Board |
| H832DSLD | 8-port ISDN Digital Subscriber Card |
| H831EDTB | 8 port SHDSL and 8 port E1 Service Board |
| H836CALE | 32-channel ADSL2+ and 32-port POTS Combined Subscriber Line Card(with Splitter) |
| H83BCVLC | 32-port VDSL2 and 32-port POTS Combined Subscriber Line Card(with Splitter) |
| H83BCVLE | 32-port VDSL2 and 32-port POTS Combined Subscriber Line Card(with Splitter) |
| H836CCME | 48-port VDSL2 and 48-port POTS Combined Subscriber Line Card(with Splitter) |
| H83DCCME | 48-port VDSL2 and 48-port POTS Combined Subscriber Line Card(with Splitter) |
| H83DCSME | 48-port SuperVector and 48-port POTS Combined Subscriber Line Card(with Splitter) |
| H831PDIA1 | DC Power Input Unit |
| H832PDVSA | Super Vector-Supporting Secondary High-power Board |
| H832PDVSB | Super Vector-Supporting Secondary High-power Board |
| H832PDVA | Secondary High-power Board |
| H832PDNAA | Vector-supporting secondary High-power Board |
| H831PAVDA | AC Power Board,VP Board,Power Backup |
| H831PAIB | AC Power Board, Power Backup |
| Parameters | Huawei MA5616 | Huawei MA5612-AC | Huawei MA5612-DC |
|
Dimensions
|
88.1 mm x 442 mm x 245 mm (without mounting ears) 88.1 mm x 482.6 mm x 245 mm (with mounting ears) |
43.6 mm x 442 mm x 245 mm (without mounting ears) 43.6 mm x 482.6 mm x 245 mm (with 19-inch mounting ears) |
43.6 mm x 442 mm x 245 mm (without mounting ears) 43.6 mm x 482.6 mm x 245 mm (with 19-inch mounting ears) |
| Ambient Temperature | -40°C to +65°C | -40°C to +55°C | -40°C to +55°C |
| Power Supply Mode | DC power supply | AC power (220 V AC)+power backup (12 V DC) | DC power (-48 V DC) |
| AC power supply | |||
| AC power supply + battery backup | |||
|
Operating Voltage Range |
-38.4 V DC to -72 V DC | 100 V AC to 240 V AC | 48 V DC to -60 V DC |
| 90 V AC to 264 V AC | |||
| AC power supply: -90 V AC to 264 V AC Batteries: -43.2 V DC to -52 V DC | |||
|
Maximum Input Current |
DC power:14A | 1.5 A | 2 A |
| AC power:6A | |||
|
AC power supply: 3 A Batteries: 5 A |
