Product Details:
|
| Part Number: | CR5DLAXFAJ7F | Condition: | New With 1 Year Replacement Warranty |
|---|---|---|---|
| Shipment: | DHL,UPS,TNT, | Website: | Www.lonriseeqt.com |
| Attributes: | Hardware | Category: | Line Card |
| Sub Product Family: | NetEngine NE40E Router | ||
| High Light: | 10GBase Integrated Line Board,Huawei 10 Port Integrated Line Board,CR5DLAXFAJ7F |
||
03057087 Huawei 10-Port 10GBase LAN/WAN-SFP+ Integrated Line Processing Unit E(LPUI-120-E)
| Item | CR5DLAXFAJ7F |
| Line-Rate capability | Provides ten 10GE interfaces for line-rate transmitting and receiving. |
| Reliability and availability | Hot swappable. |
| Restrictions and remarks | The 10G interfaces working in WAN mode can function only as master interfaces. When the board is used on an X3 and installed with 02311GSA optical modules, the short-term ambient temperature of the optical modules is -5ºC to +50ºC. |
| Dimensions (H x W x D) | 40.1 mm x 399.2 mm x 535.6 mm (1.58 in. x 15.72 in. x 21.09 in.) |
| Typical power consumption | 280.2 W |
| Weight | 8.2 kg (18.08 lb) |

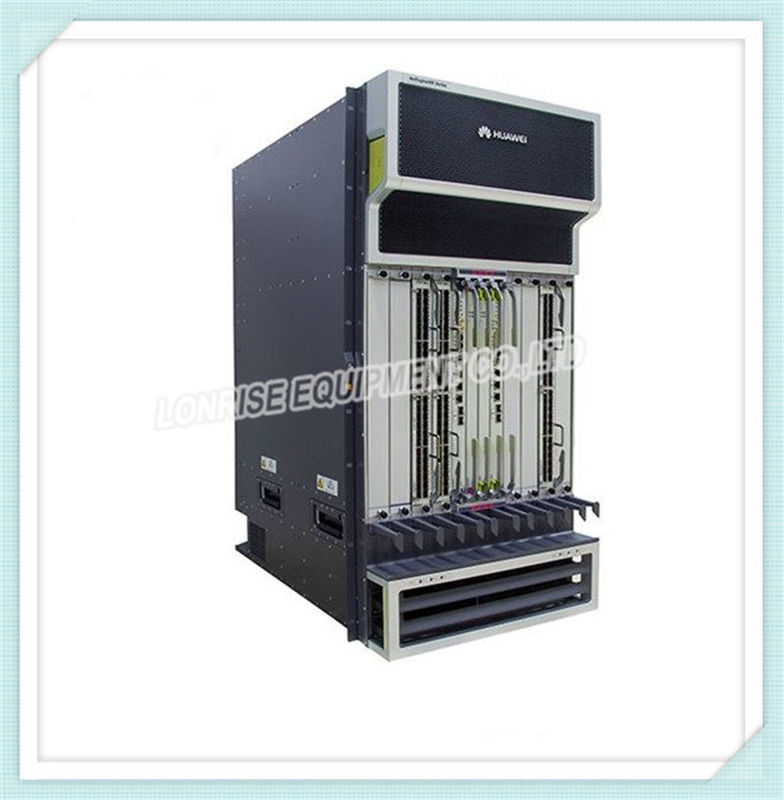

Huawei NE40E Universal Service Router
The NE40E series Universal Service Router (USR) is a high-end network product that features line-rate forwarding capability, a well-designed Quality of Service (QoS) mechanism, strong service-processing capability, and excellent expansibility. It can be deployed at the edges of Internet Protocol (IP) backbone networks, IP Metropolitan Area Networks (MANs), Internet Data Center (IDC) networks and other large-scale IP networks. The NE40E can provide comprehensive services for enterprises and residential areas as a universal edge device.
Based on distributed hardware forwarding and non-blocking switching technologies, the NE40E provides maximum 480G line cards to satisfy the increased demand for bandwidth.
The NE40E series includes the NE40E-X16A/X16, NE40E-X8A/X8, and NE40E-X3/X3A models to satisfy requirements for networks at various scales.
NE40E-X16A Basic Configuration
NE40E-X16A Integrated DC Chassis Components (2T, including 6 fan trays)
NE40E-X16A Integrated AC Chassis Components (2T, including 6 fan trays)
NE40E-X16A Integrated DC Chassis Components (including 4 fan trays)
NE40E-X16A Integrated AC Chassis Components (including 4 fan trays)
Main Processing Unit B5 (16G Memory)
480 Gbit/s Switch Fabric Unit B (SFUI-480-B)
1 Tbit/s Switch Fabric Unit B (SFUI-1T-B)
NE40E-X8A Basic Configuration
NE40E-X8A Integrated Chassis DC Components (including 2 fan trays)
NE40E-X8A Integrated Chassis AC Components (including 2 fan trays)
Switch and Route Processing Unit A8 (16G Memory)
480 Gbit/s Switch Fabric Unit C (SFUI-480-C)
Switch and Route Processing Unit A9 (16G Memory)
1 Tbit/s Switch Fabric Unit C (SFUI-1T-C)
NE40E-X3A Basic Configuration
NE40E-X3A Integrated DC Chassis Components (including dual DC power)
NE40E-X3A Integrated AC Chassis Components (including dual AC power)
Main Processing Unit D4 (16G Memory)
NE40E-X16 Basic Configuration
NE40E-X16 Integrated Chassis Components (including 8 DC power)
Main Processing Unit B5 (16G Memory)
200 Gbit/s Switch Fabric Unit B (SFUI-200-B)
NE40E-X8 Basic Configuration
NE40E-X8 Integrated Chassis Components (including 4 DC power)
Switch and Route Processing Unit B5
200 Gbit/s Switch Fabric Unit C (SFUI-200-C)
Switch and Route Processing Unit A7
100 Gbit/s Switch Fabric Unit D (SFUI-100-D)
NE40E-X3 Basic Configuration
Integrated DC Chassis Components (NE40E-X3)-4U, Including Dual DC Power
Integrated AC Chassis Components (NE40E-X3)-5U, Including Dual AC Power
Main Processing Unit D3
Main Processing Unit D2
