Product Details:
|
| Part Number: | CR5D00E1NC76 | Condition: | New With 1 Year Replacement Warranty |
|---|---|---|---|
| Shipment: | DHL,UPS,TNT, | Website: | Www.lonriseeqt.com |
| Attributes: | Hardware | Category: | Line Card |
| Sub Product Family: | NE40E-X16A | Typic Power(W): | 270.6 |
| High Light: | CFP Integrated Line Processing Unit,CR5D00E1NC76,Huawei Integrated Line Processing Unit |
||

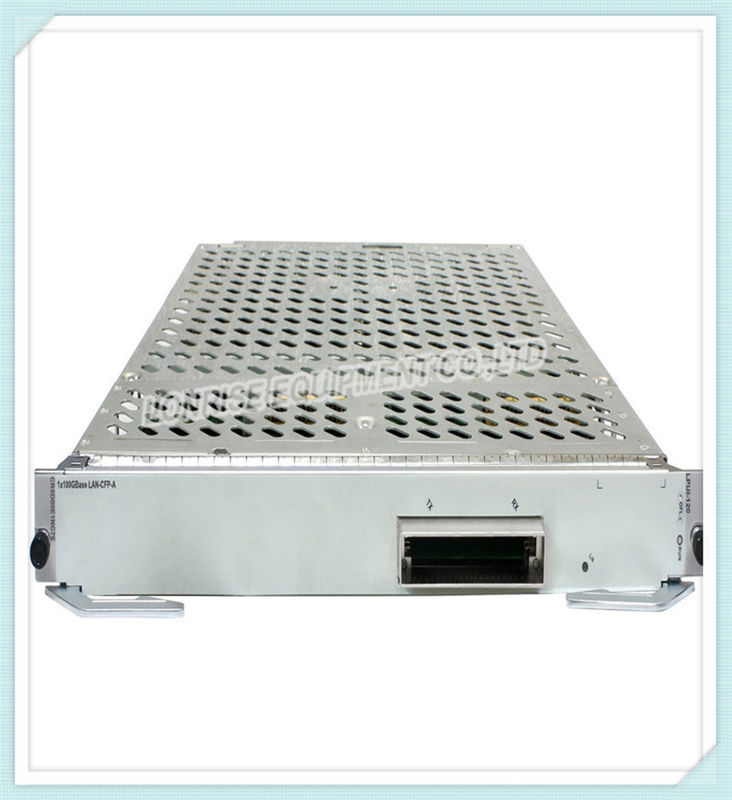

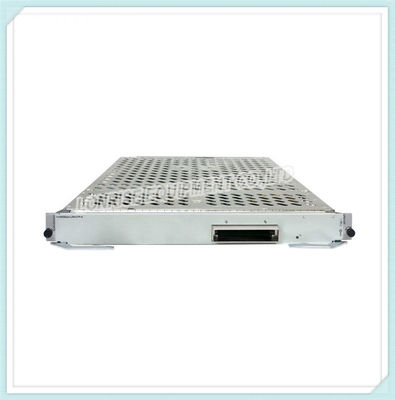

03054683 Huawei CR5D00E1NC76 1-Port 100GBase-CFP Integrated Line Processing Unit (LPUI-120) NetEngine40E Series Universal Service Routers.
1-Port 100GBase-CFP integrated line processing unit (LPUI-120) on Huawei NE40E.
The port can be only configured to work in LAN mode and use CFP optical module.
Supports 1588v2.
CR5D00E1NC76 is 1-Port 100GBase-CFP integrated line processing board applied to Huawei NE40E.
| Part Number | 03054683 |
| Model | CR5D00E1NC76 |
| Description | 1-Port 100GBase-CFP Integrated Line Processing Unit (LPUI-120) |
| Attributes | Hardware |
| List Price(USD) | 477,174.72 |
| Category | Line Card |
| Product Line | Networking |
| Product Family | Router |
| Overview | Line Card |
| Sub Product Family | NetEngine NE40E Router |
| Product Series | NE40E-X16A |
| EAN | |
| UOM | PCS |
| Pack Weight(kg) | |
| Pack Volume(m^3) | |
| Pack Dimension(D*W*H mm) | |
| Net Dimension(D*W*H mm) | 532*399*40 |
| Typic Power(W) | 270.6 |
Q: Does CR5D00E1NC76 LPUI-120 support PPPoE/IPoE function?
A: LPUI-120 itself cannot support PPPoE/IPoE, but you can buy NetEngine40E PPPoE/IPoE Function License for it, one LPUI-120 requires one such license.
Q: What prerequisites must be met and what licenses are required in order to use PPPoE/IPoE function on NE40E?
A: Below two factors to be met at the same time
1, NE40E
NE40E PPPoE/IPoE Function License is needed
2, Card and service port
Service card (no matter Flexible mother card, daughter card or integrated card) needs support PPPoE/IPoE Function.
Card model with “E” itself supports PPPoE/IPoE, no extra license; card without “E”, relative license is needed to activate PPPoE/IPoE.
In a word, NE40E license is the base, and then make sure service cards and port support PPPoE/IPoE.
PPPoE/IPoE card license for flexible mother card and integrated card:
NetEngine40E PPPoE/IPoE Function License for LPUF-120
NetEngine40E PPPoE/IPoE Function License for LPUI-120
NetEngine40E PPPoE/IPoE Function License for LPUF-240
NetEngine40E PPPoE/IPoE Function License for LPUI-240
NetEngine40E PPPoE/IPoE Function License for LPUF-480
NetEngine40E PPPoE/IPoE Function License for LPUI-480
PPPoE/IPoE License for service ports on integrated card or daughter card:
NetEngine40E 100G PPPoE/IPoE Port License(per 100G)
NetEngine40E 10G PPPoE/IPoE Port License(per 10G)
NetEngine40E 1G PPPoE/IPoE Port License(per 1G)
Huawei NE40E Universal Service Router
The NE40E series Universal Service Router (USR) is a high-end network product that features line-rate forwarding capability, a well-designed Quality of Service (QoS) mechanism, strong service-processing capability, and excellent expansibility. It can be deployed at the edges of Internet Protocol (IP) backbone networks, IP Metropolitan Area Networks (MANs), Internet Data Center (IDC) networks and other large-scale IP networks. The NE40E can provide comprehensive services for enterprises and residential areas as a universal edge device.
Based on distributed hardware forwarding and non-blocking switching technologies, the NE40E provides maximum 480G line cards to satisfy the increased demand for bandwidth.
The NE40E series includes the NE40E-X16A/X16, NE40E-X8A/X8, and NE40E-X3/X3A models to satisfy requirements for networks at various scales.
NE40E-X16A Basic Configuration
NE40E-X16A Integrated DC Chassis Components (2T, including 6 fan trays)
NE40E-X16A Integrated AC Chassis Components (2T, including 6 fan trays)
NE40E-X16A Integrated DC Chassis Components (including 4 fan trays)
NE40E-X16A Integrated AC Chassis Components (including 4 fan trays)
Main Processing Unit B5 (16G Memory)
480 Gbit/s Switch Fabric Unit B (SFUI-480-B)
1 Tbit/s Switch Fabric Unit B (SFUI-1T-B)
NE40E-X8A Basic Configuration
NE40E-X8A Integrated Chassis DC Components (including 2 fan trays)
NE40E-X8A Integrated Chassis AC Components (including 2 fan trays)
Switch and Route Processing Unit A8 (16G Memory)
480 Gbit/s Switch Fabric Unit C (SFUI-480-C)
Switch and Route Processing Unit A9 (16G Memory)
1 Tbit/s Switch Fabric Unit C (SFUI-1T-C)
NE40E-X3A Basic Configuration
NE40E-X3A Integrated DC Chassis Components (including dual DC power)
NE40E-X3A Integrated AC Chassis Components (including dual AC power)
Main Processing Unit D4 (16G Memory)
NE40E-X16 Basic Configuration
NE40E-X16 Integrated Chassis Components (including 8 DC power)
Main Processing Unit B5 (16G Memory)
200 Gbit/s Switch Fabric Unit B (SFUI-200-B)
NE40E-X8 Basic Configuration
NE40E-X8 Integrated Chassis Components (including 4 DC power)
Switch and Route Processing Unit B5
200 Gbit/s Switch Fabric Unit C (SFUI-200-C)
Switch and Route Processing Unit A7
100 Gbit/s Switch Fabric Unit D (SFUI-100-D)
NE40E-X3 Basic Configuration
Integrated DC Chassis Components (NE40E-X3)-4U, Including Dual DC Power
Integrated AC Chassis Components (NE40E-X3)-5U, Including Dual AC Power
Main Processing Unit D3
Main Processing Unit D2
