Product Details:
|
Memory: | 1 GB | Flash: | 512 MB |
---|---|---|---|
Service Interfaces: | WAN Interfaces: 2 GE Combo Interfaces LAN Interfaces: 8 10/100/1000M Auto-sensing Ethernet Electrical Interfaces | Extended Slots: | 2 SIC Slots |
Power Module Type: | Built-in AC Power Module | Device Switching Capacity: | 8 Gbit/s |
Warranty: | 1year | Lead Time: | Within 2 - 3 Days After Received Payment |
Fixed WAN Ports: | 2 X GE Combo | Fixed LAN Ports: | 8 X GE (can Be Configured As WAN Interfaces) |
Max. Power: | 60W | AC Power: | 100V To 240V |
High Light: | AR1220E-S,Huawei AR1200 Industrial Network Router,2GE Comb Industrial Network Router |

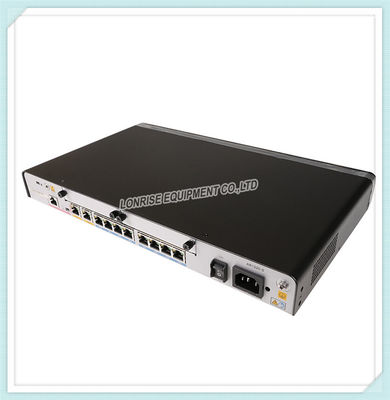

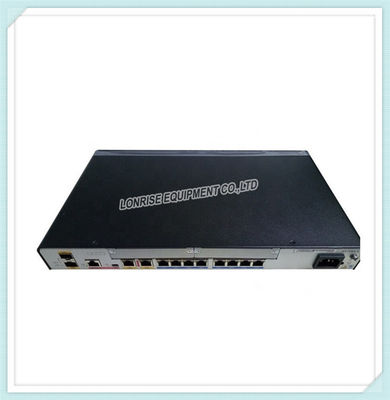

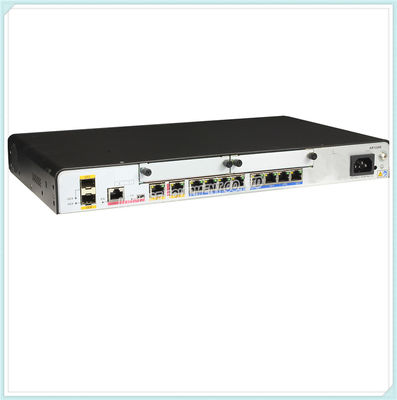

Huawei AR1220E-S router is next-generation, enterprise-class routers based on the Huawei proprietary Versatile Routing Platform (VRP).
AR1200E-S Specification |
|
WAN speed with services | 400 Mbit/s |
Firewall Performance (large packet) | 1,800 Mbit/s |
Device Switching Capacity | 8 Gbit/s |
Slot Switching Bandwidth | SIC & WSIC slots: 2 Gbit/s |
Number of Recommended Users | 100 |
Fixed WAN Ports | 2 x GE Combo |
Fixed LAN Ports | 8 x GE (can be configured as WAN interfaces) |
SIC Slots | 2 |
WSIC Slots (default/max) | 0/1 |
DSP Slots | - |
Wi-Fi | - |
USB 2.0 Ports | 2 |
Mini-USB Ports | 1 |
Serial Auxiliary/Console Port | 1 |
Memory | 1 GB |
Flash | 512 MB |
Max. Power | 60W |
PoE Power | - |
AC Power | 100V to 240V |
Frequency | 50 Hz/60 Hz |
DC power | - |
Dimensions (H x W x D) | 44.5 mm x 390 mm x 220 mm |
Weight | 12.42 kg |
Ambient Temperature | 0°C to 45°C |
Relative Humidity | 5% to 95% (non-condensing) |
Model | Description |
FE optical transceiver | |
SFP-FE-LX-SM1310-BIDI | eSFP,FE,BIDI Single-mode module(TX1310/RX1550,15km,LC) |
eSFP-FE-LX-SM1310 | eSFP,100M/155M,Single-mode Module(1310nm,15km,LC) |
S-SFP-FE-LH40-SM1310 | eSFP,FE,Single-mode Module(1310nm,40km,LC) |
GE optical transceiver | |
SFP-1000BaseT | Electrical Transceiver,eSFP,GE,Electrical Interface Module(100m,RJ45) |
eSFP-GE-SX-MM850 | Optical Transceiver,eSFP,GE,Multi-mode Module(850nm,0.55km,LC) |
SFP-GE-LX-SM1310 | Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC) |
S-SFP-GE-LH40-SM1310 | Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,40km,LC) |
S-SFP-GE-LH40-SM1550 | Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,40km,LC) |
WAN interface card | |
AR-1E3T3M-W | 1-Port Channelized/Unchannelized E3/T3 WAN Interface Card |
xDSL interface card | |
AR01SLV1XA | 1-Port VDSL2 over POTS WAN Interface Module |
