Product Details:
|
| Bundle: | Security Bundle | Aggregate Throughput: | 100 Mbps To 300 Mbps |
|---|---|---|---|
| SFP-based Ports: | 2 | Power-supply Options: | External: AC And PoE |
| NIM Slot: | 2 | OIR (all I/O Modules): | Yes |
| Warranty: | 1year | Lead Time: | Within 2 - 3 Days After Received Payment |
| Default Flash Memory: | 4 GB (default) / 16 GB (maximum) | RAM: | 256 MB |
| Maximum Flash Memory: | 8 GB | Redundant Power Supply: | N/A |
| High Light: | ISR4331-SEC/K9,CE Security Bundle Network Router,300Mbps Industrial Network Router |
||

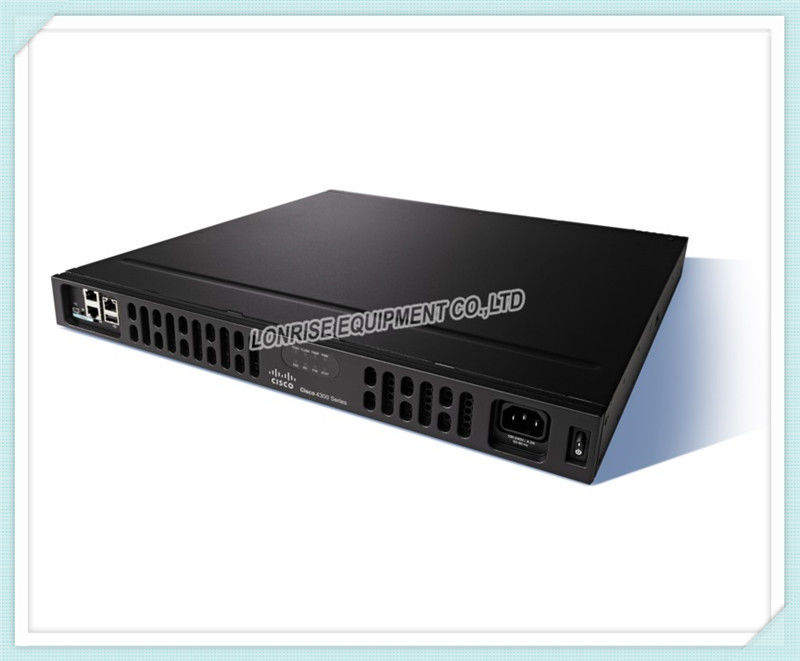

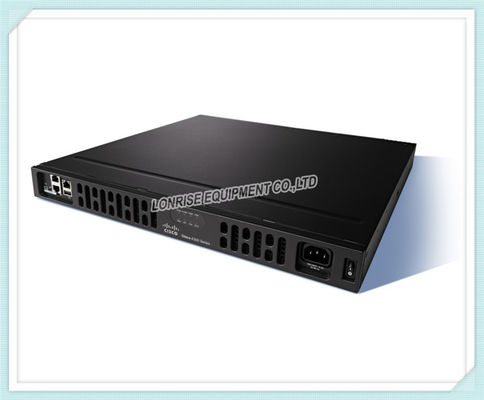

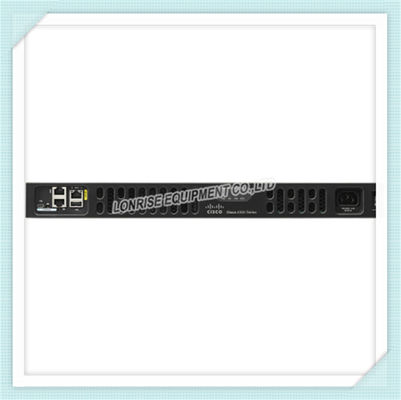

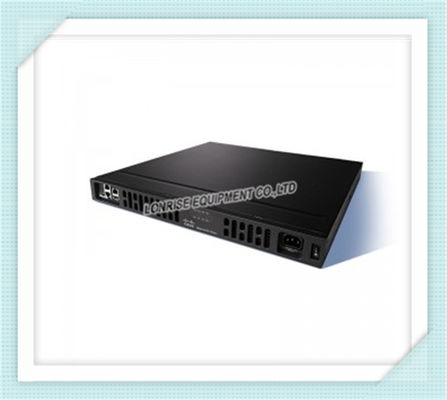

Cisco ISR4331-SEC/K9 is the Cisco ISR4331/k9 router with Security Bundle. Its other specifications are the same as ISR4331/k9.
Cisco ISR4331-SEC/K9 Specification |
|
| Type | Cisco ISR4331/K9 with Security Bundle |
| Aggregate Throughput | 100 Mbps to 300 Mbps |
| Total onboard WAN or LAN 10/100/1000 ports | 3 |
| RJ-45-based ports | 2 |
| SFP-based ports | 2 |
| Enhanced service-module slots | 1 |
| Doublewide service-module slots | 0 |
| NIM slots | 2 |
| OIR (all I/O modules) | Yes |
| Onboard ISC slot | 1 |
|
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) |
4 GB |
| Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | 16 GB |
| Default memory DDR3 ECC DRAM (data plane) | NA |
| Maximum memory DDR3 ECC DRAM (data plane) | NA |
| Default memory DDR3 ECC DRAM (control/services plane) | NA |
| Maximum memory DDR3 ECC DRAM (control/services plane) | NA |
| Default flash memory | 4 GB |
| Maximum flash memory | 16 GB |
| External USB 2.0 slots (type A) | 1 |
| USB console port -type B mini (up to 115.2 kbps) | 1 |
| Serial console port - RJ45 (up to 115.2 kbps) | 1 |
|
Serial auxiliary port - RJ45 (up to 115.2 kbps) |
1 |
| Power-supply options | Internal: AC and PoE |
| Redundant power supply | N/A |
| AC input voltage | 100 to 240 VAC autoranging |
| AC input frequency | 47 to 63 Hz |
| AC input current range, AC power supply (maximum) | 3 to 1.3A |
| AC input surge current | 60 A peak and less than 5 Arms per half cycle |
| Typical power (no modules) (watts) | 42 |
| Maximum power with AC power supply (watts) | 250 |
| Maximum power with PoE power supply (platform only) (watts) | 530 |
| Maximum endpoint PoE power available from PoE power supply (watts) | 250 |
| Items | Models | Descriptions |
| Console and Auxillary Cables | CAB-AUX-RJ45 | Cisco CAB-AUX-RJ45 Auxiliary Cable 8ft with RJ45 and DB25M |
| CAB-ETH-S-RJ45 | Cisco Router Cable CAB-ETH-S-RJ45 | |
| CAB-CONSOLE-RJ45 | Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F | |
| CAB-CONSOLE-USB | Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B | |
| Network Interface Modules | NIM-1MFT-T1/E1 | Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module |
| NIM-2CE1T1-PRI | Cisco Multiflex Trunk Voice and WAN network interface module | |
| NIM-4E/M | Analog voice network interface card (ear and mouth) | |
| NIM-2FXS | Cisco Analog voice network interface card NIM-2FXS | |
| NIM-2FXS/4FXO | Cisco Analog voice network interface card NIM-2FXS/4FXO | |
| NIM-8MFT-T1/E1 | Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module | |
| SFPs for On-Board GE Ports | GLC-SX-MMD | Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
| GLC-LH-SMD | Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM | |
| GLC-ZX-SMD | Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM |
