Product Details:
|
| Brand: | Cisco | Ports: | 48 X 10/100/1000 (POE+) |
|---|---|---|---|
| Enclosure Type: | Rack-mountable - 1U | Switching Capacity: | 176Gbps |
| Condition: | New With 1Year Replacement Warranty | Shipment: | DHL,UPS,TNT, |
| RAM: | 4 G | Forwarding Performance: | 130.95Mpps |
| Available PoE Power: | 435W | Stack Bandwidth: | 480Gbps |
| Flash Memory: | 2 G | ||
| High Light: | 48 Ports POE Switch,WS-C3850-48P-S,176Gbps Ethernet Network Switch |
||
Product Overview

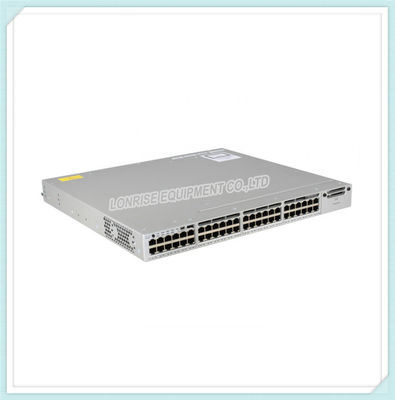

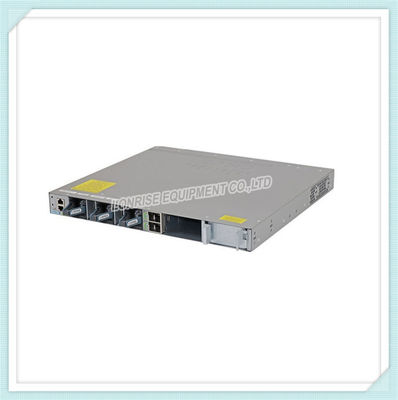

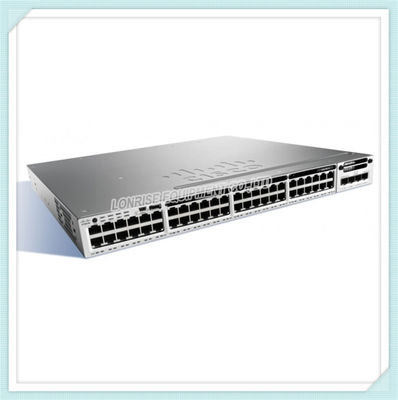

Cisco Catalyst 3850-48P-S switch is the next generation stackable enterprise level switch and integrated with 48 Ethernet POE + ports with IP Base IOS image.
WS-C3850-48P-S Specification |
|
| model info: | WS-C3850-48P-S |
| enclosure type | Rack-mountable - 1U |
| Ports | 48 x 10/100/1000 (POE+) |
| Network management Interface | ● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling ● Management console port: RJ-45-to-DB9 cable for PC connections |
| Available PoE Power | 435W |
| Switching Capacity | 176Gbps |
| Maximum stacking number | up to 9 switches with same IOS feature set in same series |
| Stack Bandwidth | 480Gbps |
| Forwarding Performance | 130.95Mpps |
| FNF (Flexible NetFlow) entries | 48,000 flows |
| Maximum VLANs IDs | 1000 |
| MAC Address Table Size | 32K |
| CPU | Multicore CPU |
| RAM | 4 G |
| Flash Memory | 2 G |
| Wireless | |
| Number of AP per switch/stack | 100 |
| Number of wireless clients per switch/stack | 2000 |
| Total number of WLANs per switch | 64 |
| Wireless bandwidth per switch | up to 40Gbps |
| Supported Aironet AP series | 3600, 3500, 2600, 1600, 1260, 1140, 1040 |
| Expansion / Connectivity | |
| Console ports | USB (Type-B), Ethernet (RJ-45) |
| Expansion Slot(s) | 1 network module slot and 1 power redundant slot |
| Network Modules Selection | ● C3850-NM-4-1G: 4 x 1G uplinks network module ● C3850-NM-4-10G: 4 x 10G uplinks network module ●C3850-NM-2-10G: 2 x 10G or 4 x 1G uplinks network module |
| Stacking cable | ●STACK-T1-50CM StackWise stacking cable with a 0.5 m length ●STACK-T1-1M StackWise stacking cable with a 1.0 m length ●STACK-T1-3M StackWise stacking cable with a 3.0 m length |
| Stack Power Cable (recommended) | ●CAB-SPWR-30CM stack power cable with a 30CM length ●CAB-SPWR-150CM stack power cable with a 150CM length |
| Power supply | PWR-C1-715WAC |
| Power Device | Power supply - redundant - plug-in module |
| Power Redundancy | optional |
| Voltage range (Auto) | 100V-240V |
| Power Consumption of standalone(in Watts) | 135.96 (Max) |
| Miscellaneous | |
| Width | 17.5 Inches (44.5 cm) |
| Depth | 17.7 Inches (44.5 Cm) |
| Height | 1.75 Inches (4.45 cm) |
| Weight | 17.4 Pounds (7.9Kg) |
| Rack Mounting Kit | optional |
| MTBF in hours | 241,050 |
| Compliant Standards |
● IEEE 802.1D Spanning Tree Protoco ● IEEE 802.3 10BASE-T |
| System software / license | |
| System software | IOS IP Base (Upgradable) |
| EnergyWise license | ENERGY-MGMT, ENERGY-MGT-100-K9 |
| Software license | ●C3850-48-S-E: IP Base to IP Services RTU paper license ●L-C3850-48-S-E: IP Base to IP Services RTU electronic license |
| Access Point Licenses | ●L-LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (e-delivery) ●L-LIC-CTIOS-1A: 1 access point adder license for Cisco IOS Software based wireless controller (e-delivery) ●LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (paper license) ●LIC-CTIOS-1A: 1 access point adder license for the Cisco IOS Software based wireless controller (paper license) |
| Features |
● RPS Support ● IP service-level agreements (SLAs) ● Advanced IP unicast routing protocols ● Jumbo Frames ● VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ● 802.3ad LACP and PAgP ● PVST/PVST+ ● 802.1W/802.1S ●Port Fast/Uplink Fast ●Dynamic Trunking Protocol (DTP) ● port CoS Trust and Override ● Trusted Boundary ● ACL Classification ●ingress Policing ● Auto QoS ● Per VLAN policies ● 802.1p queues ● Scheduling ● Priority Queuing ● Configure CoS Priority Queues ●Configure CoS Priority Queues ● Configure Queue Weights ● Configure Buffers and Thresholds ●Class & Policy Maps ● Modify CoS and DSCP Mapping ● Weighted Tail Drop ● IGMPv1,v2,v3 and MLDv1, v2 ● DHCP server ● DSCP transparency ● HSRP, VRRP, BLGP ● RIPv1, v2 EIGRP, PIM OSPF, OSPFv3,EIGRPv6, BGPv4, IS-ISv4 ● VRF-lite ● PIM-SM/DM, PIM sparse-dense mode, SSM ● Flexible Netflow |
| Advanced Network security | ● Port security ● DHCP snooping ●Dynamic ARP inspection (DAI) ● IP source guard ●The Unicast Reverse Path Forwarding (uRPF) ● Bidirectional data support on a SPAN ● User authentication ● Private VLAN ●Router and VLAN ACLs ● complete identity and security ● Multidomain authentication ● MAC address notification ● IGMP filtering ● Cisco security VLAN ACL ● Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3) ● Port-based ACLs ● TrustSec SXP ● IEEE 802.1ae ● TACACS+ and RADIUS authentication ● Cisco standard and extended IP security router ACLs ● Bridge protocol data unit (BPDU) Guard ● Spanning Tree Root Guard (STRG) ● Wireless end-to-end security |
| Management |
●BRIDGE-MIB ●CISCO-AUTH-FRAMEWORK-MIB ●CISCO-SNMP-TARGET-EXT-MIB ●CISCO-STACKMAKER-MIB |
| Technical Support and Services | ● Cisco SMARTnet Service ● Cisco Smart Foundation Service ● Cisco SP Base Service ● Cisco Focused Technical Support Services |
| Environmental Ranges | |
| With AC power supply Operating environment and altitude | |
| Operating temperature up to 5000 ft (1500 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
| Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF (-5ºC to +40ºC) |
| Short-term exception at sealevel with single fan failure | 23ºF to 113ºF (-5ºC to +45ºC) |
| Short-term exception up to 5000 feet (1500 m) | 23ºF to 122ºF (-5ºC to 50ºC) |
| Short-term exception up to 10,000 feet (3000 m) | 23ºF to 113ºF (-5ºC to 45ºC) |
| With DC power supply Operating environment and altitude (NEBS) | |
| Operating temperature up to 6000 ft (1800 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
| Operating temperature up to 10,000 ft (3000 m) | 23ºF to 104ºF (-5ºC to +40ºC) |
| Operating temperature up to 13,000 ft (4000m) | 23ºF to 95ºF (-5ºC to 35ºC) |
| Short-term exception up to 6,000 feet (1800 m) | 23ºF to 131ºF (-5ºC to +55ºC) |
| Short-term exception up to 10,000 feet (3000 m) | 23ºF to 122ºF (-5ºC to +50ºC) |
| Short-term exception up to 13,000 feet (4000 m) | 23ºF to 113ºF (-5ºC to +45ºC) |
| Short-term exception at sealevel with single fan failure | 23ºF to 113ºF (-5ºC to +45º) |
| Storage environment | -40ºF to 160ºF (-40ºC to 70ºC) |
| Operating altitude | Up to 13,000 Feet (Up to 4000 Meters) |
| Storage altitude | Up to 15,000 Feet (Up to 4573 Meters) |
| Operating relative humidity | 10% to 95% noncondensing |
| Storage relative humidity | 10% to 95% noncondensing |
the comparison between WS-C3850-48P-S and WS-C3850-48T-S.
| Models | WS-C3850-48P-S | WS-C3850-48T-S |
| Feature Set | IP Base | IP Base |
| Network SFP uplink module selection |
C3850-NM-4-1G C3850-NM-2-10G C3850-NM-4-10G |
C3850-NM-4-1G C3850-NM-2-10G C3850-NM-4-10G |
| Ports | 48 x 10/100/1000 Ethernet ports | 48 x 10/100/1000 Ethernet ports |
| Available PoE Power | 435W | N/A |
| Models | Description |
| C3850-NM-4-1G | Cisco 3850 Series 4 x 1GE Network Module |
| C3850-NM-2-10G | Cisco 3850 Series 2 x 10GE Network Module |
| C3850-NM-4-10G | Cisco 3850 Series 4 x 10GE Network Module |
| L-C3850-48-S-E= | C3850-48 IP Base to IP Services Electronic RTU License |
| PWR-C1-715WAC | Cisco 3850 Series Power Supply 715W AC |
| PWR-C1-715WAC/2 | Cisco 3850 Series Secondary Power Supply 715W AC Config 1 Secondary Power Supply |
| CAB-SPWR-30CM | Catalyst 3750X and 3850 Stack Power Cable 30 CM |
| CAB-SPWR-150CM | Catalyst 3750X and 3850 Stack Power Cable 150 CM |
| STACK-T1-50CM= | Cisco StackWise-480 50cm stacking cable for Cisco Catalyst 3850 series switch |
| STACK-T1-1M= | Cisco StackWise-480 1m stacking cable for Cisco Catalyst 3850 series switch |
