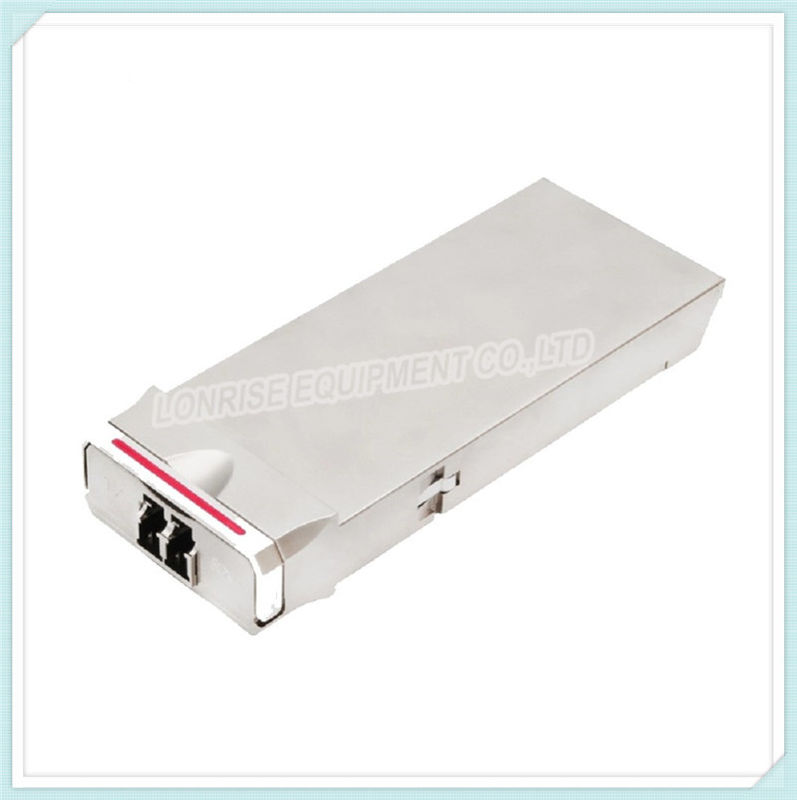

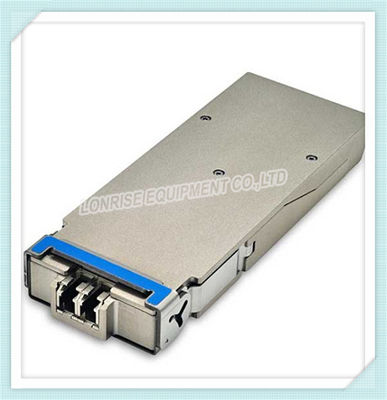

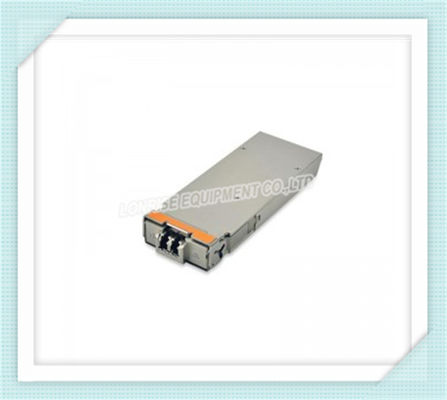

CFP2-100G-ER4 Compatible 100 Gigabit Optical Modules

CFP2-100G-ER4 Compatible 100 Gigabit Optical Modules
CFP2-100G-ER4 Compatible 100 Gigabit Optical Modules CFP2-100G-ER4 Compatible 100 Gigabit Optical Modules CFP2-100G-ER4 Compatible 100 Gigabit Optical Modules CFP2-100G-ER4 Compatible 100 Gigabit Optical Modules

Large Image :  CFP2-100G-ER4 Compatible 100 Gigabit Optical Modules

Product Details:
Place of Origin: China
Brand Name: LR
Certification: CE
Model Number: CFP2-100G-ER4
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: SEALED IN BAG
Delivery Time: 1-2 days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 1000 PCS/MONTH

CFP2-100G-ER4 Compatible 100 Gigabit Optical Modules

Description
Product Model: CFP2-100G-ER4 Vendor Name: LR
Form Factor: CFP2 Max Distance: 40km
Wavelength: 1310 Band(LAN-WDM) Core Size (microns): G.652
Warranty: 1 Year Warranty Interface: LC Duplex
Maximum Power Consumption: 8 W Media: SMF
DOM Support: Yes
High Light:

Compatible 100 Gigabit Optical Modules

,

CFP2-100G-ER4

,

40km Optical Transceiver Module



















Overview



 The Compatible 100GBASE CFP2 modules offer customers 100 Gigabit Ethernet connectivity options for data center networking, enterprise core aggregation, and service provider transport applications.



Specification



CFP2-100G-ER4 Specification

Description Compatible 100GBASE-ER4 CFP2 Module for SMF (<40 km)
Dimensions 144.8 x 82 x 13.6 mm
Wavelength (nm) 1310 band(LAN-WDM)
Fiber Type SMF
Core Size (microns) G.652
Modal Bandwidth (MHz-km)
Max Distance 40 km
Digital Optical Monitoring (DOM) Yes
Average Transmit Power (dBm)

Max:2.9 per lane

Min:-2.9 per lane

Average Receive Power (dBm)

Max:4.5 per lane

Min:-20.9 per lane

Transmit and Receive Wavelength Four lanes: 1295.6 nm, 1300.1 nm, 1304.6 nm, and 1309.1 nm
Environmental Conditions and Power Requirements
Operating temperature 32 to 158°F (0 to 70°C)
Storage temperature -40 to 185°F (-40 to 85°C)
Maximum power consumption 8 W
