Product Details:
|
| Product Model: | QSFP-40G-LR4 | Application: | Multimode And Single-Mode Fibers |
|---|---|---|---|
| Form Factor: | QSFP | LR P/N: | HXS25S |
| Max Data Rate: | 40G | Wavelength: | 10km |
| Warranty: | 1 Year Warranty | Max Cable Distance: | 100m @ OM4 MMF, 70m @ OM3 MMF |
| Connector: | LC Duplex | DOM Support: | YES |
| Media: | MMF | ||
| High Light: | QSFP-40G-LR4,40G Optical Transceiver Module,QSFP Optical Transceiver Module |
||

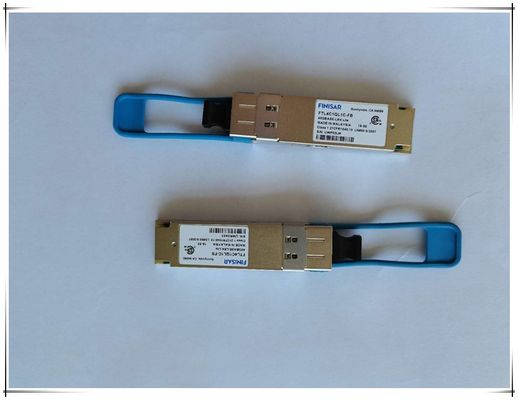

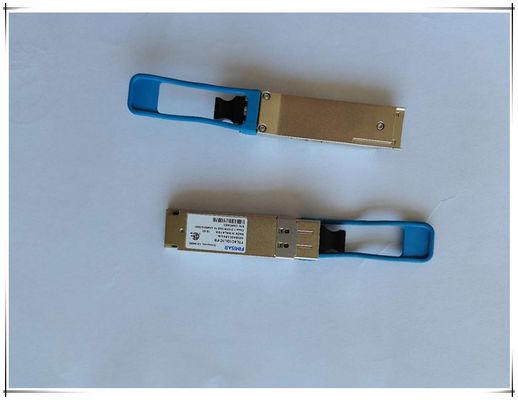

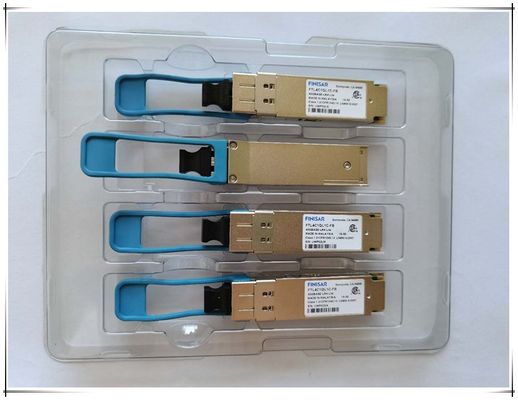

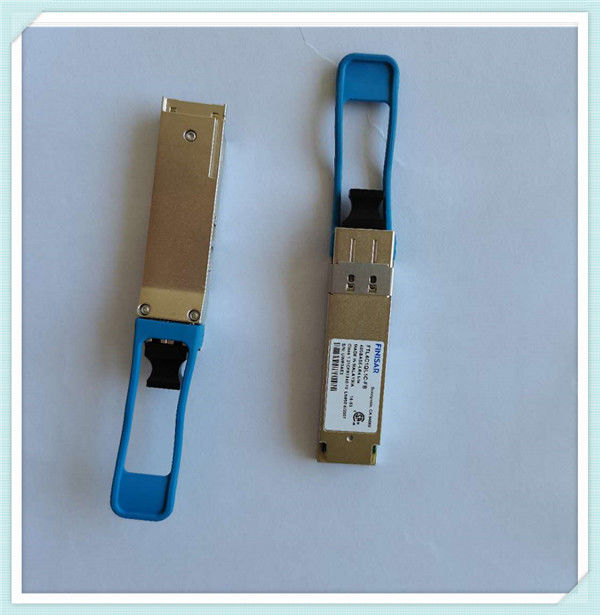

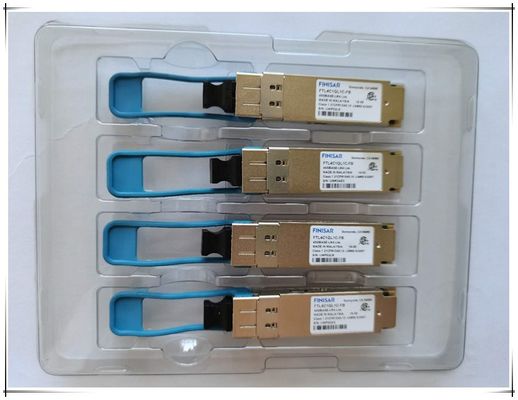

40G QSFP+ 1310nm 10KM qsfp-40g-lr4
1.Description
qsfp module are a high performance, low power consumption, long reach interconnect solution supporting 40G Ethernet, fiber channel and PCIe. It is compliant with the QSFP MSA and IEEE P802.3ba 40GBASE-lR4. Gigalight QSFP AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s.
2.Applications
1).Infiniband transmission at 4ch SDR, DDR and QDR
2).40GBASE-lR4 40G Ethernet
3).Data Centers
3.Features
1).Full duplex 4 channel 1310nm parallel active optical cable
2).Transmission data rate up to 10.3Gbit/s per channel
3).SFF-8436 QSFP+ compliant
4).Hot pluggable electrical interface
5).Differential AC-coupled high speed data interface
6).4 channels 1310nm VCSEL array
7).4 channels PIN photo detector array
8).Maximum link length of 10km on singlemode Fiber (SMF)
9).Low power consumption <1.5W
10).Operating case temperature 0°C to +70°C
11).3.3V power supply voltage
12).RoHS 6 compliant
