Product Details:
|
Ports: | 48 X 10 GE SFP+, 2 X 40 GE QSFP+ Ports | Switching CapacityRate: | 2.56 Tbit/s |
---|---|---|---|
Forwarding Performance: | 1,080 Mpps | Stack: | Supported |
Memory (RAM): | 2 GB | Power Supply: | AC Power Supply |
Warranty: | 1 Years | Lead Time: | Within 2 - 3 Days After Received Payment |
High Light: | S6720-54C-EI-48S-AC,1080 Mpps Ethernet Network Switch,2.56 Tbit/s Ethernet Network Switch |
Huawei S6720-54C-EI-48S-AC switch is one of the Huawei S6720 series Switches. The S6720 series offers high-availability, scalable 10 Gbit/s server access for Internet Data Centers (IDCs) and large traditional data centers. It also provides optional configuration of 4 x 40 GE QSFP+ interface card gives the S6720-EI Series Switches unusual flexibility: use to provide access to high-bandwidth server-based applications, or as a core or aggregation switch in enterprise campus networks
Quick Specs

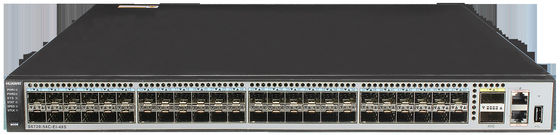

Figure 1 shows the appearance of Huawei S6720-54C-EI-48S-AC switch.
Table 1 shows the Quick Specs.
Product Code | S6720-54C-EI-48S-AC |
Ports | 48 x 10 GE SFP+, 2 x 40 GE QSFP+ ports |
Interface Slot | 1 |
Power Supply | AC Power Supply |
Forwarding Performance | 1,080 Mpps |
Switching Capacity | 2.56 Tbit/s |
Stack | Supported |
Stack Ports |
- Any 10GE SFP+ ports (a maximum of 16 physical ports) - Any 40GE QSFP+ ports (a maximum of 6 physical ports) |
Memory (RAM) | 2 GB |
Flash | 240 MB |
Dimensions (W x D x H) | 44.2 cm x 42 cm x 4.44 cm |
Weight (Kg) | 10.2 Kg |
Table 2 shows the recommended transceivers, card and power module.
Model | Description | |
GE-SFP Optical Transceiver | ||
SFP-1000BaseT | Electrical Transceiver, SFP, GE, Electrical Interface Module(100m,RJ45) | |
eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module(850nm,0.55km,LC) | |
SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,10km,LC) | |
S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module(1310nm,40km,LC) | |
S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module(1550nm,40km,LC) | |
10GE SFP+ optical transceiver | ||
SFP-10G-USR | 10GBase-USR Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.1km,LC) | |
OMXD30000 | Optical Transceiver,SFP+,10G,Multi-mode Module(850nm,0.3km,LC) | |
OSX010000 | Optical Transceiver,SFP+,10G,Single-mode Module(1310nm,10km,LC) | |
40GE optical transceiver | ||
QSFP-40G-ER4 | 40GBase-ER4 Optical Transceiver,QSFP+,40G,Single-mode Module (1310nm,40km,LC) | |
QSFP-40G-LR4 | 40GBase-LR4 Optical Transceiver,QSFP+,40GE,Single-mode Module(1310nm,10km,LC) | |
Card | ||
ES5D21Q04Q01 | Huawei 4 × 40 Gig QSFP+ interface card(used in S6720EI series) | |
Power Module | ||
PAC-600WA-B | 600W AC Power Module(Back to Front,Power panel side exhaust) |
Table 3 shows the comparison of Huawei S6720-30C-EI-24S-AC, S6720-54C-EI-48S-AC and S6720S-26Q-EI-24S-AC.
Models | S6720-30C-EI-24S-AC | S6720-54C-EI-48S-AC | S6720S-26Q-EI-24S-AC |
Switching Capacity | 2.56 Tbit/s | 2.56 Tbit/s | 2.56 Tbit/s |
Forwarding Performance | 720 Mpps | 1,080 Mpps | 480 Mpps |
Fixed Ports | 24 x 10 GE SFP+, 2 x 40 GE QSFP+ ports | 48 x 10 GE SFP+, 2 x 40 GE QSFP+ ports | 24 x 10 GE SFP+, 2 x 40 GE QSFP+ ports |
Extended Slot | One extended slot for 4 x 40 GE QSFP+ interface card | One extended slot for 4 x 40 GE QSFP+ interface card | Not supported |
Power Supply | AC Power Supply | AC Power Supply | AC Power Supply |
